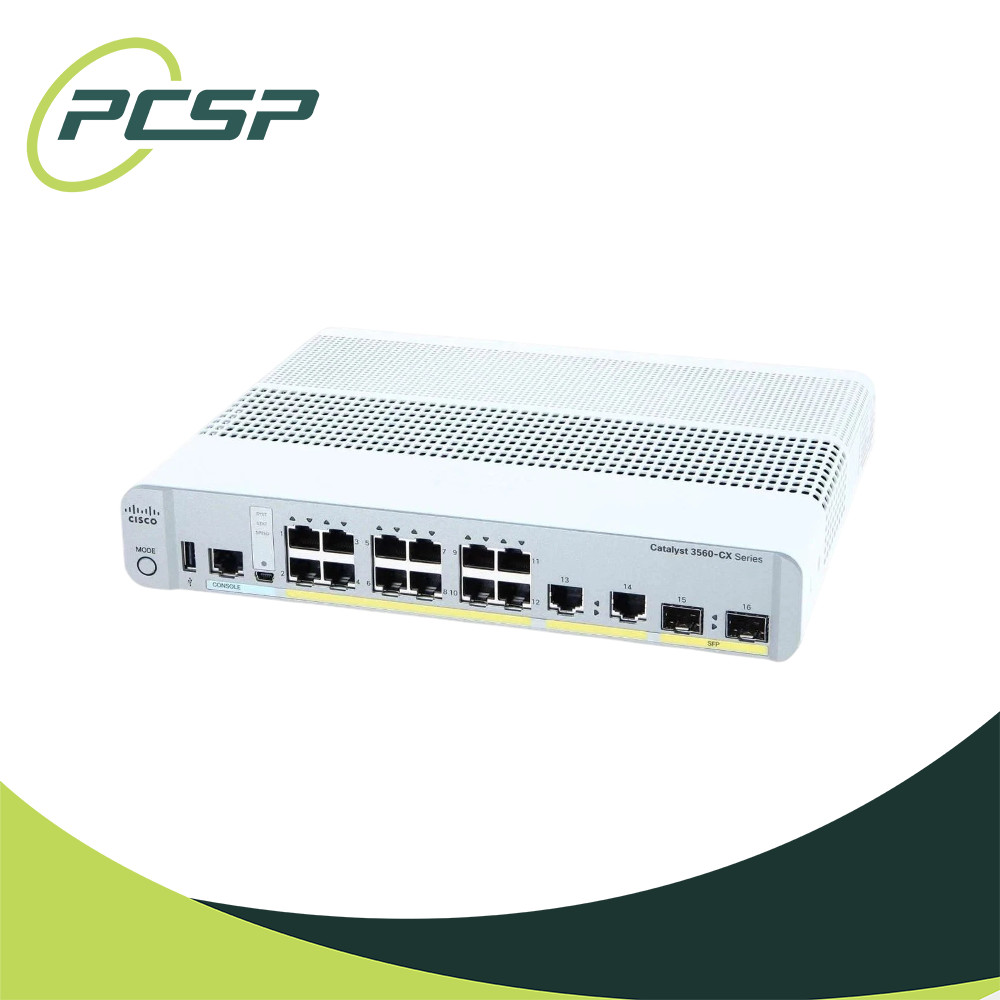

Cisco Catalyst WS-C3560CX-12PC-S 12-Port Gigabit PoE+ Switch 240W IP Base
Click Thumbnails to Enlarge Specifications Server TypeLot QuantityWarranty30 DaysBrandCiscoManufacturer Part Catalyst 3560-CX SeriesModel NumberWS-C3560CX-12PC-SForm FactorCompact / Desktop (Fanless)FormCompact / Desktop (Fanless)Bracket SizeNetwork Interface12 x 10/100/1000 PoE+ PortsInterfaceWattsChassisBatteryAC AdapterMotherboard SupportExpansion SlotsDimms per ChannelSocketProcessorDual Core 600 MHzProcessors InstalledProcessor SpeedSpeed10/100/1000 Mbps Ethernet 1GbE SFPProcessor Max Speed (Turbo Boost)CPU BrandProcessor CoresNumber of ThreadsHyper ThreadingCache Per ProcessorProcessor Main FeaturesCPU InstalledCompatible RAMFSBCPU CacheCPU Cooling SystemCPU Cooling System BrandCPU Cooling System DetailsNumber of FansFanless PassiveFan ModelFan SupportFan SpeedFan AirflowFan NoiseMemory (RAM)Memory SizeRAM DetailsRAM TypeRAM TypeRAM SpeedRam SpeedMaximum RAMRAM BrandRAM/RankRankModule TypeModule QTYECC/FFSpeed & ECCRAM Installed1.8" Drive Bays2.5" Drive Bays3.5" Drive BaysM.2 SlotsStorageHDDHDD InstalledSSDSSD InstalledStorage TypeStorage CapacityHard Disk Rotational SpeedRead SpeedStorage CacheSector SizeHard Drive TraysDrive BlanksIn trayGraphics CardGraphics CoprocessorGraphics Card BrandGraphics Card SeriesGraphics Card MemoryGraphics Card Memory TypeGraphics Card Clock SpeedGraphics Card Boost Clock SpeedGraphics Card CUDA CoresGraphics Card Memory Bus WidthGraphics Card InterfaceGraphics Card Video OutputsPower ConnectorsGPU InstalledCacheTransfer RatePower SupplyInternal (100-240V AC)PSU TypeFixed 300WPSU BrandPSU QTY1 (Fixed)PSU Form FactorFixedPSU Features300W 100-240VACPSU Installed1x fixed AC PSUOperating SystemCisco IOS (IP Base)SoftwareSoftware FeaturesCOABattery InstalledBluetooth InstalledCabling InstalledCamera InstalledMedia Drive InstalledHeatsinks InstalledRAID ControllerRaid InstalledNetwork ControllerRail KitBezelOptical DriveSpecial FeaturesPackage ContentsOnboard GPUBluetoothWifi InstalledWLANLAN Speed10/100/1000 MbpsCase MaterialColorsDrive BaysMaximum CPUsMax CPU'sNumber of Memory SlotsDIMM SlotsMemory ChannelsI/O SlotsPorts16 Total (12 PoE+, 2 SFP, 2 RJ-45 Uplinks)Front USBFront Audio PortsRear USBRear Audio PortsVideo PortsRJ45Power ConsumptionKeyboardMouseMonitorNot IncludedRefresh RateScreen SizeEars IncludedNoFeature SetsIP Base (Enterprise Access)Fixed Uplinks2 x 1G SFP + 2 x 1G Copper RJ-45Total 10/100/1000 Ethernet Ports14 (12 PoE+ + 2 Uplink)Available PoE Power240 WattsSwitching Capacity32 GbpsStacking BandwidthN/ATotal number of MAC addresses16,000Total number of IPv4 routes5000FNF entriesN/ADRAM512MB DDR3Flash128MBVLAN IDs1024Total switched virtual interfaces (SVIs)1000Jumbo frame9018 BytesTotal routed ports per stackN/ANumber of access points per switch/stackN/ANumber of wireless clients per switchN/ATotal number of WLANs per switchN/AWireless bandwidth per switchN/ASupported Aironet access point seriesAll (Standard L2/L3 Access; no controller))Forwarding Rate23.8 MppsECC/FFScalabilityCountry of OriginPCSP SKUWS-C3560CX-12PC-S Extended Warranty for this listing:Click Here Our other items:Click Here Product Description

Cisco Catalyst WS-C3560CX-12PC-S 12-Port Gigabit PoE+ Compact Switch

The Cisco Catalyst WS-C3560CX-12PC-S is a compact enterprise managed switch featuring 12 Gigabit Ethernet PoE+ access ports, a 240W PoE power budget, two Gigabit Ethernet copper uplinks, and two Gigabit Ethernet SFP uplink slots.

Designed for deployments where space and noise are important, the Catalyst 3560-CX combines a compact fanless design with Cisco IP Base Layer 3 functionality. It is well suited for offices, classrooms, branch locations, retail environments, wireless access point deployments, IP phones, cameras, and other PoE-powered devices.

Manufacturer: Cisco

Series: Catalyst 3560-CX

Model: WS-C3560CX-12PC-S

Product Type: Compact Managed Layer 3 Network Switch

Access Ports: 12x 10/100/1000BASE-T PoE+

PoE Budget: 240W

Copper Uplinks: 2x Gigabit Ethernet RJ45

Fiber Uplinks: 2x 1GbE SFP

Software Feature Set: IP Base

Cooling: Fanless

Form Factor: Compact 1U

Key Features

12x 10/100/1000BASE-T Gigabit Ethernet PoE+ ports
240W total PoE power budget
IEEE 802.3af PoE support
IEEE 802.3at PoE+ support
Up to 30W PoE+ per supported port
2x Gigabit Ethernet RJ45 uplink ports
2x Gigabit Ethernet SFP uplink slots
Cisco IP Base software feature set
Layer 3 networking capabilities
32Gbps full-duplex switching bandwidth
16Gbps forwarding bandwidth
Fanless design for silent operation
Integrated internal AC power supply
Compact chassis suitable for space-constrained installations

Network Interfaces

12x 10/100/1000BASE-T RJ45 access ports
PoE/PoE+ support on all 12 access ports
2x dedicated Gigabit Ethernet RJ45 uplink ports
2x dedicated 1 Gigabit Ethernet SFP uplink slots
SFP transceivers are not included unless specifically stated

Power over Ethernet

12x PoE+ capable access ports
240W total available PoE budget
Up to 30W per supported PoE+ port
IEEE 802.3af PoE support
IEEE 802.3at PoE+ support
Suitable for IP phones, wireless access points, cameras, and other compatible powered devices

Uplink Configuration

2x Gigabit Ethernet copper RJ45 uplinks
2x 1GbE SFP uplink slots
SFP uplinks support compatible Gigabit Ethernet transceivers
This model does NOT use 10GbE SFP+ uplinks

Performance

Forwarding Bandwidth: 16Gbps
Switching Bandwidth: 32Gbps Full Duplex
DRAM: 512MB
Flash Memory: 128MB
Maximum VLANs: 1023
VLAN IDs: 4000

Layer 3 & Management

Cisco IP Base feature set
Managed Layer 2 and Layer 3 functionality
VLAN support
Spanning Tree support
EtherChannel / Link Aggregation support
Access Control List support
Quality of Service support
IPv4 and IPv6 capabilities
IP Base can support additional Layer 3 functionality depending on installed software and configuration

Power & Cooling

Integrated internal AC power supply
100-240V AC input
240W available PoE power
Fanless passive cooling design
Silent operation
No replaceable fan modules required

Physical Design

Compact 1U-height chassis
Approximately 1.75 x 10.6 x 9.4 inches
Approximate Weight: 5.1 lb
Supports flexible mounting configurations with compatible mounting hardware
Suitable for offices, classrooms, retail, kiosks, and other space-constrained environments

Ideal Applications

Enterprise Access Networks
Branch Offices
Wireless Access Point Deployments
IP Phone Deployments
PoE Surveillance Cameras
Classrooms
Retail Environments
Office Workspaces
Network Labs
Space-Constrained Network Installations

Included

1x Cisco Catalyst WS-C3560CX-12PC-S Network Switch

Important Notes

Photos are for reference only.
Only listed items are included.
This is the WS-C3560CX-12PC-S IP Base model with a 240W PoE budget.
The switch provides 12x Gigabit Ethernet PoE+ access ports.
The uplink configuration is 2x Gigabit Ethernet RJ45 plus 2x 1GbE SFP.
This model does not have 10GbE SFP+ uplinks.
No accessories are included
Verify compatibility before purchase.
