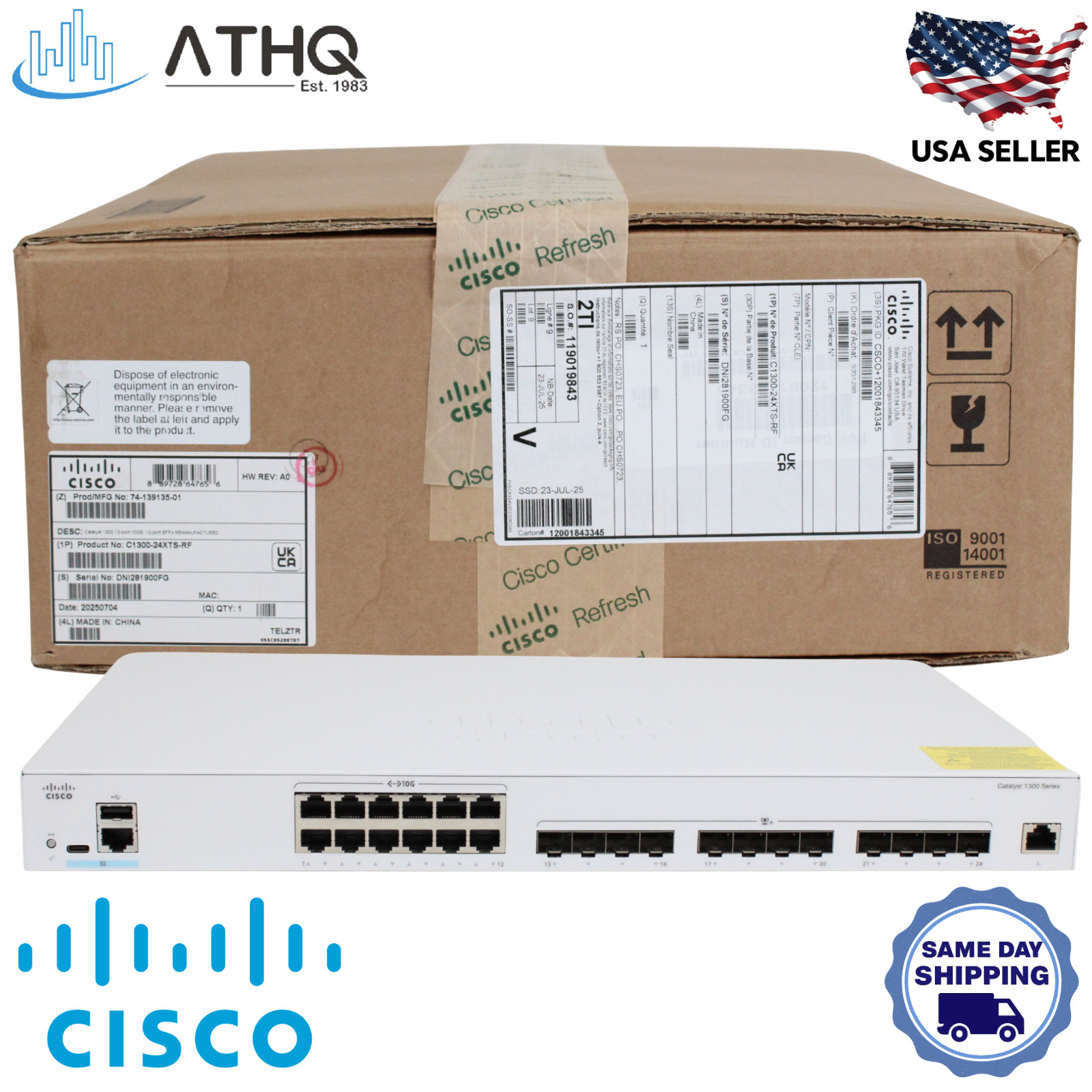

Cisco C1300-24XTS Catalyst 1300 12x 10G Copper + 12x 10G SFP+ Managed Switch - Cisco Refresh

The Cisco C1300-24XTS is a Layer 2/3 managed switch from the Catalyst 1300 Series, built for SMBs and enterprise branch offices. It features 12 × 10GBASE-T copper (RJ-45) ports, 12 × 10G SFP+ ports, a dedicated 1× GE management port, and delivers 480 Gbps wire-speed, non-blocking switching capacity. This Cisco Refresh unit has been remanufactured and tested by Cisco. The switch supports front-panel stacking of up to 8 units, inter-VLAN routing with RIPv2, and requires no Cisco DNA subscription to operate.

Key Features & Benefits

• 480 Gbps Wire-Speed, Non-Blocking Switching: 357.12 Mpps forwarding rate across all 24 ports
• 12 × 10GBASE-T (RJ-45) + 12 × 10G SFP+: Copper ports for local servers and workstations; SFP+ ports for fiber or DAC twinax uplinks — no shared/combo ports
• 1 × GE Dedicated Management Port: Separate out-of-band management interface keeps control traffic off the data plane
• Front-Panel Stacking, Up to 8 Switches: Stack up to 8 same-family C1300 switches and manage them as one device under a single IP address; requires stacking cables (not included)
• Layer 3: Inter-VLAN Routing, RIPv2, Policy-Based Routing: IPv4 and IPv6 dual-stack; note — OSPF is not supported on this model (C1300X series only)
• Up to 4,094 VLANs (802.1Q): Port-based, MAC-based, IP subnet-based, private VLAN, voice VLAN; LACP up to 8 groups × 8 ports; STP/RSTP/MSTP
• Advanced Security: 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, BPDU Guard, RADIUS/TACACS+, SSH v1/v2, IPv6 First Hop Security
• QoS: 8 hardware queues, 802.1p/DSCP classification, voice VLAN auto-assignment, cross-stack QoS
• No Cisco DNA Subscription Required: Switching, routing, and security features are accessible without a Cisco DNA or cloud management account
• Cisco Refresh: Remanufactured and tested by Cisco prior to resale

Technical Specifications

• Manufacturer: Cisco Systems
• Series: Cisco Catalyst 1300
• Part Number: C1300-24XTS | Cisco Refresh SKU: C1300-24XTS-RF
• Ports: 12 × 10GBASE-T RJ-45 + 12 × 10G SFP+ + 1 × GE Management Port
• Switching Capacity: 480 Gbps (wire-speed, non-blocking)
• Forwarding Rate: 357.12 Mpps
• PoE Support: None (non-PoE model)
• Stacking: Front-panel stacking; up to 8 switches per stack; same-family stacking only (C1300 Family 2 models); stacking cables required (not included)
• VLANs: Up to 4,094 (802.1Q tag-based, port-based, MAC-based, IP subnet-based, private VLAN, voice VLAN)
• Layer 2: STP/RSTP/MSTP (16 MSTP instances), PVST+/RPVST+ (126 instances), LACP 802.3ad (up to 8 groups × 8 ports), IGMP Snooping (up to 4,000 multicast groups — per Cisco datasheet for 10G SKUs)
• Layer 3: Inter-VLAN routing, RIPv2, Policy-Based Routing (PBR), up to 7,168 IPv4 routes Dynamic + Static (per Cisco datasheet for 10G SKUs), IPv4 & IPv6 dual-stack; OSPF not supported on this model
• Security: 802.1X (authenticator + supplicant), DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, BPDU Guard, STP Root Guard, DoS prevention, RADIUS, TACACS+, SSH v1/v2, SSL/HTTPS, IPv6 First Hop Security, ACLs up to 2,048 rules (per Cisco datasheet for 10G SKUs)
• QoS: 8 hardware queues, 802.1p/DSCP, strict priority and WRR scheduling, cross-stack QoS, ingress policing, egress shaping
• Management: Web GUI, Cisco Business Dashboard, Cisco Business mobile app, CLI (SSH/console), SNMP, Syslog, TFTP, HTTPS
• Power Consumption: 88.2W (110V) / 86.7W (220V)
• Power Supply: Internal, AC 100–240V
• Form Factor: 1U rack-mountable, 19-inch
• Dimensions: 17.5 × 10.76 × 1.73 in (W × D × H)
• Condition: Cisco Refresh — remanufactured and tested by Cisco prior to resale

Frequently Asked Questions

• What is Cisco Refresh and what condition should I expect?
  Cisco Refresh units are remanufactured and tested by Cisco prior to resale. The switch is sold as fully functional; cosmetic wear on the chassis may be present.
• What is included with this switch?
  Please check the listing photos for exact contents. Stacking cables, SFP+ optics or DAC cables, and rack-mount brackets are not guaranteed to be included — contact us before ordering if any of these are required.
• Does this switch need a Cisco DNA subscription or license?
  No Cisco DNA subscription is required. Switching, routing, and security features are accessible without a cloud management account or additional license.
• What Layer 3 routing protocols does this switch support?
  The C1300-24XTS supports inter-VLAN routing, RIPv2, and Policy-Based Routing. OSPF (v2/v3) is not supported on this model — that requires the C1300X series. Confirm routing requirements before ordering.
• What is the difference between C1300-24XTS and C1300-24XT?
  The C1300-24XTS has 12 dedicated copper + 12 dedicated SFP+ ports (no shared ports). The C1300-24XT has 20 copper + 4 combo ports where each copper and SFP+ slot shares one active connection. Different physical port layouts — verify which suits your cabling before ordering.
