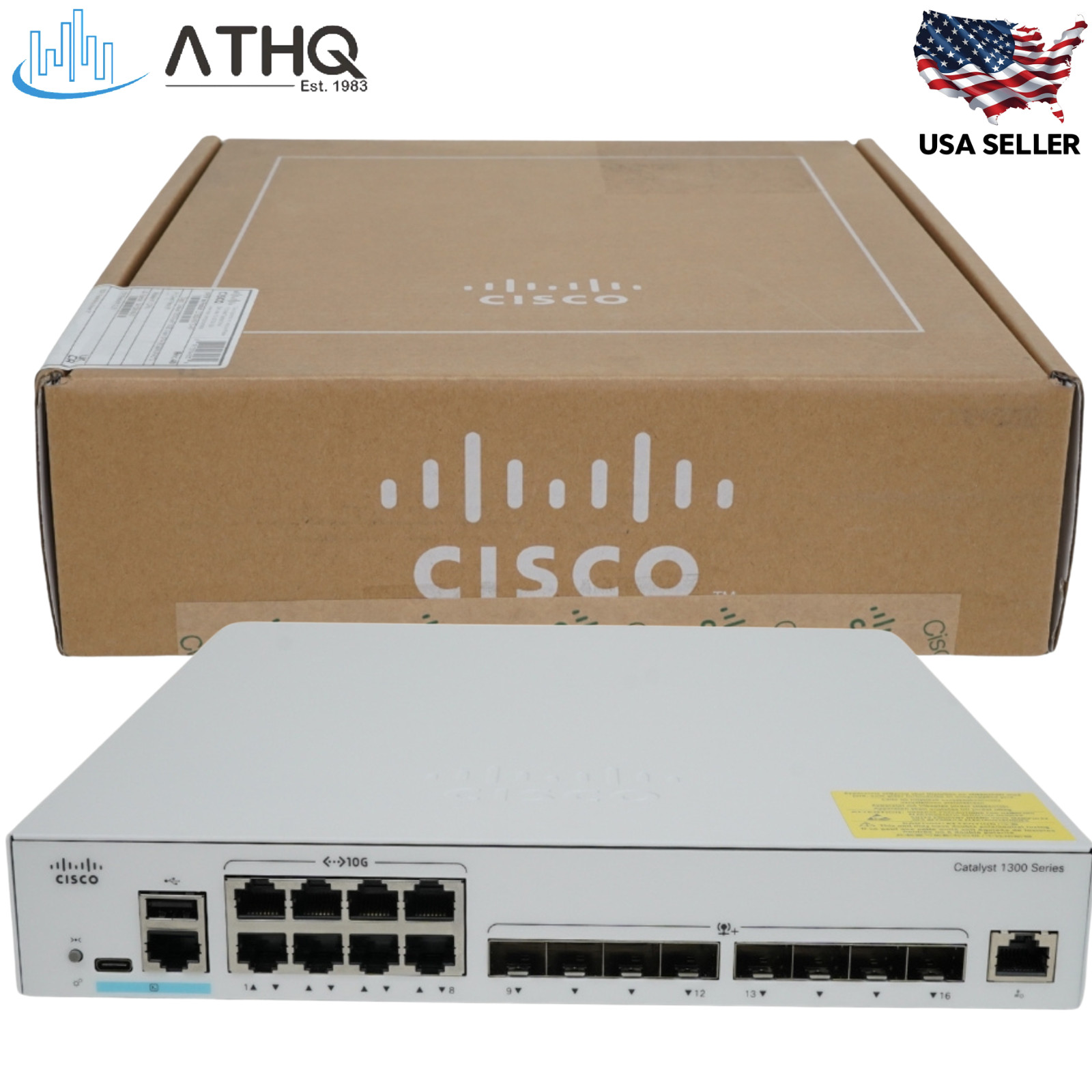

Cisco Catalyst C1300-16XTS - 16-Port 10G Managed Switch | 8x RJ-45 | 8x SFP+ | 320 Gbps | Layer 3 - New

The Cisco Catalyst C1300-16XTS is an enterprise-class Layer 2/3 managed 10G switch for SMB and branch offices. It delivers 320 Gbps non-blocking switching / 238.1 Mpps across 8× 10GBASE-T RJ-45 + 8× 10G SFP+ (all ports auto-negotiate 1G/10G) and a dedicated 1 GE out-of-band management port. Features hardware stacking up to 8 switches / 200 ports, full Layer 3 routing (RIPv2, PBR, static), 4093 VLANs, 802.1X, 1024 ACL rules, and QoS with 8 hardware queues. Managed via web GUI, CLI, SNMP v1/v2c/v3, or Cisco Business Dashboard. No subscription required.

Cisco Catalyst C1300-16XTS - Key Features

• 16-Port All-10G, 320 Gbps Non-Blocking: 8× 10GBASE-T RJ-45 + 8× 10G SFP+ at wire-speed 320 Gbps / 238.1 Mpps. All ports run 1G or 10G auto-negotiation. 3 MB packet buffer, 16K MAC table.
• Hardware Stacking — Up to 8 Switches, 200 Ports: Family 2 front-panel stacking with C1300-12XT-2X, C1300-12XS, C1300-24XS, C1300-24XT, C1300-24XTS — single IP address, hot swap, ring/chain topology, fast failover.
• Full Layer 3 — RIPv2, PBR, Static, 4093 VLANs: RIPv2 dynamic routing, policy-based routing, up to 990 static IPv4 routes, 128 IP interfaces. Voice VLAN, Q-in-Q, Private VLAN, GVRP/GARP.
• Enterprise Security — 802.1X, ACLs, RADIUS, DoS: IEEE 802.1X, dynamic ARP inspection, DHCP snooping, IP Source Guard, 1024 ACL rules (ingress + egress), TACACS+/RADIUS, SSH v1/v2, IPv6 First Hop Security, DoS prevention.
• No Subscription — Full Local Management: Cisco Business Dashboard (embedded probe), web GUI, text-view CLI, SNMP v1/v2c/v3, Cisco Network Plug and Play zero-touch deployment. No cloud license fees ever.

Cisco Catalyst C1300-16XTS - Technical Specifications

• Part Number: C1300-16XTS • UPC: 889728521482
• Ports: 8× 10GBASE-T RJ-45 + 8× 10G SFP+ + 1× GE OOB management
• Switching Capacity: 320 Gbps • Forwarding Rate: 238.1 Mpps
• Packet Buffer: 3 MB • MAC Table: 16,000 entries
• CPU: ARM dual-core 1.4 GHz • RAM: 1 GB DDR4 • Flash: 512 MB
• Stacking: Up to 8 units / 200 ports (Family 2)
• Routing: RIPv2, PBR, Static, CIDR • VLANs: 4093 • ACLs: 1024
• QoS: 8 queues, Strict Priority + WRR • PoE: None
• Management: Web GUI, CLI, SNMP v1/v2c/v3, Cisco Business Dashboard, SSH, RADIUS, TACACS+
• Power: 100–240V internal • 35.2W max • Fan: 1 • 28.7 dBA
• Dimensions: 11.81 × 10.55 × 1.73 in • Weight: 5.91 lb • Form Factor: 1U rack
• Operating Temp: −5°C to 50°C • Humidity: 10–90% non-condensing
• Certifications: UL 62368, CSA 22.2, CE, FCC Part 15 Class A
• Box Contents: Switch, power cord, mounting kit, pointer card
• Condition: New • Warranty: Limited Lifetime (RTF)

Cisco Catalyst C1300-16XTS - Frequently Asked Questions (FAQ)

• Does the C1300-16XTS support PoE?
  No — this model has no PoE capability. For PoE needs, consider the C1300-16P-4X (16-port GbE PoE+ with 4× 10G uplinks).
• Do the copper ports support 1 Gbps?
  Yes. All 10G copper RJ-45 and SFP+ ports auto-negotiate at 1 Gbps or 10 Gbps per Cisco's official datasheet.
• Which switches can stack with the C1300-16XTS?
  Family 2 only: C1300-12XT-2X, C1300-12XS, C1300-24XS, C1300-24XT, C1300-24XTS. Cross-stacking with Family 1 is not supported.
• Is a subscription or cloud license required?
  No. The C1300-16XTS is fully functional without any subscription. Cisco Business Dashboard is optional and free.
• What SFP+ modules are compatible?
  Cisco-supported modules include SFP-10G-SR (MMF, 400m), SFP-10G-LR (SMF, 10km), SFP-H10GB-CU1M/3M/5M DAC cables, and others per the Cisco Catalyst 1300 data sheet.
