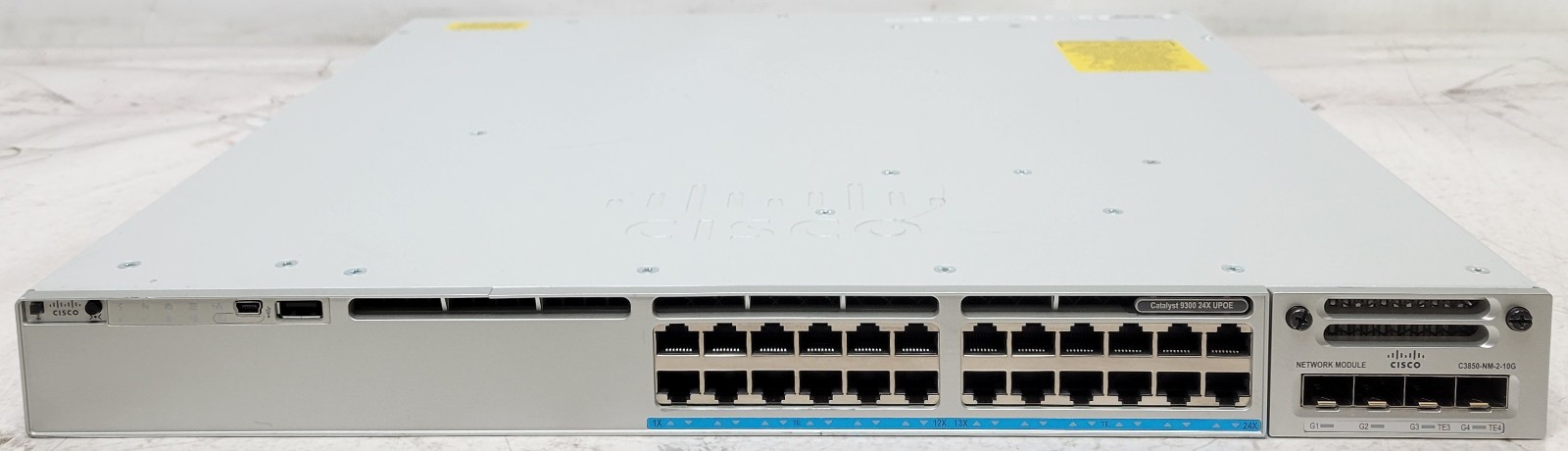

24 Ports 60W UPOE (Max 890W)

2x PWR-C1-715WAC (Takes C15 Plug)

Minor signs of prior use, including
scratches, scuffs and possible adhesive
residue remaining.

Power Cord(s)

Switch#show env all
Switch 1 FAN 1 is OK
Switch 1 FAN 2 is OK
Switch 1 FAN 3 is OK
FAN PS-1 is OK
FAN PS-2 is OK
Switch 1: SYSTEM TEMPERATURE is OK
Inlet Temperature Value: 33 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 46 Degree Celsius
Red Threshold : 56 Degree CelsiusHotspot Temperature Value: 63 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 105 Degree Celsius
Red Threshold : 125 Degree Celsius
SW PID Serial# Status Sys Pwr PoE Pwr Watts
-- ------------------ ---------- --------------- ------- ------- -----
1A PWR-C1-715WAC DCA2048G1T0 OK Good Good 715
1B PWR-C1-715WAC DCB1842G1S8 OK Good Good 715Switch#show inv
NAME: "c93xx Stack", DESCR: "c93xx Stack"
PID: C9300-24UX , VID: , SN: FJB2333C055NAME: "Switch 1", DESCR: "C9300-24UX"
PID: C9300-24UX , VID: , SN: FJB2333C055NAME: "Switch 1 - Power Supply A", DESCR: "Switch 1 - Power Supply A"
PID: PWR-C1-715WAC , VID: V02 , SN: DCA2048G1T0NAME: "Switch 1 - Power Supply B", DESCR: "Switch 1 - Power Supply B"
PID: PWR-C1-715WAC , VID: V01 , SN: DCB1842G1S8NAME: "Switch 1 FRU Uplink Module 1", DESCR: "2x1G 2x10G Uplink Module"
PID: C3850-NM-2-10G , VID: V01 , SN: FOC200619JF
Switch#show int statusPort Name Status Vlan Duplex Speed Type
Te1/0/1 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/2 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/3 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/4 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/5 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/6 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/7 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/8 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/9 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/10 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/11 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTXPort Name Status Vlan Duplex Speed Type
Te1/0/12 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/13 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/14 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/15 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/16 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/17 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/18 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/19 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/20 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/21 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/22 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Te1/0/23 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTXPort Name Status Vlan Duplex Speed Type
Te1/0/24 notconnect 1 auto auto 100/1000/2.5G/5G/10GBaseTX
Gi1/1/1 notconnect 1 auto auto unknown
Gi1/1/2 notconnect 1 auto auto unknown
Te1/1/3 notconnect 1 auto auto unknown
Te1/1/4 notconnect 1 auto auto unknown
Switch#show pow iModule Available Used Remaining
(Watts) (Watts) (Watts)
------ --------- -------- ---------
1 890.0 0.0 890.0
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----
Te1/0/1 auto off 0.0 n/a n/a 60.0
Te1/0/2 auto off 0.0 n/a n/a 60.0
Te1/0/3 auto off 0.0 n/a n/a 60.0
Te1/0/4 auto off 0.0 n/a n/a 60.0
Te1/0/5 auto off 0.0 n/a n/a 60.0
Te1/0/6 auto off 0.0 n/a n/a 60.0
Te1/0/7 auto off 0.0 n/a n/a 60.0
Te1/0/8 auto off 0.0 n/a n/a 60.0
Te1/0/9 auto off 0.0 n/a n/a 60.0
Te1/0/10 auto off 0.0 n/a n/a 60.0
Te1/0/11 auto off 0.0 n/a n/a 60.0
Te1/0/12 auto off 0.0 n/a n/a 60.0
Te1/0/13 auto off 0.0 n/a n/a 60.0
Te1/0/14 auto off 0.0 n/a n/a 60.0
Te1/0/15 auto off 0.0 n/a n/a 60.0
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----
Te1/0/16 auto off 0.0 n/a n/a 60.0
Te1/0/17 auto off 0.0 n/a n/a 60.0
Te1/0/18 auto off 0.0 n/a n/a 60.0
Te1/0/19 auto off 0.0 n/a n/a 60.0
Te1/0/20 auto off 0.0 n/a n/a 60.0
Te1/0/21 auto off 0.0 n/a n/a 60.0
Te1/0/22 auto off 0.0 n/a n/a 60.0
Te1/0/23 auto off 0.0 n/a n/a 60.0
Te1/0/24 auto off 0.0 n/a n/a 60.0
Switch#show module
Switch Ports Model Serial No. MAC address Hw Ver. Sw Ver.
------ ----- --------- ----------- -------------- ------- --------
1 38 C9300-24UX FJB2333C055 f4bd.9e41.3280 16.6.6Switch#show license right-to-use
Slot# License Name Type Period 1 network-essentials Permanent Lifetime
1 dna-essentials Subscription CSSM Level on Reboot: network-essentials+dna-essentials SubscriptionSwitch#show ver
Cisco IOS XE Software, Version 16.06.06
Cisco IOS Software [Everest], Catalyst L3 Switch Software (CAT9K_IOSXE), Version 16.6.6, RELEASE SOFTWARE (fc1)
Technical Support: (c) 1986-2019 by Cisco Systems, Inc.
Compiled Thu 11-Apr-19 03:51 by mcpre
Cisco IOS-XE software, Copyright (c) 2005-2019 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XE ROMMON
BOOTLDR: System Bootstrap, Version 16.8.1r [FC4], RELEASE SOFTWARE (P)Switch uptime is 25 minutes
Uptime for this control processor is 27 minutes
System returned to ROM by Reload Command
System image file is "flash:packages.conf"
Last reload reason: Reload CommandThis product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.A summary of U.S. laws governing Cisco cryptographic products may be found you require further assistance please contact us by sending email to
(email)
Technology Package License Technology-package
Current Type Next Permanent network-essentials
dna-essentials Subscription dna-essentialscisco C9300-24UX (X86) processor with 1392597K/6147K bytes of memory.
Processor board ID FJB2333C055
1 Virtual Ethernet interface
4 Gigabit Ethernet interfaces
32 Ten Gigabit Ethernet interfaces
2 Forty Gigabit Ethernet interfaces
2048K bytes of non-volatile configuration memory.
8388608K bytes of physical memory.
1638400K bytes of Crash Files at crashinfo:.
11264000K bytes of Flash at flash:.
0K bytes of WebUI ODM Files at webui:.Base Ethernet MAC Address : f4:bd:9e:41:32:80
Motherboard Assembly Number : 73-18276-03
Motherboard Serial Number : FJZ23321BZ3
Model Revision Number : D0
Motherboard Revision Number : B0
Model Number : C9300-24UX
System Serial Number : FJB2333C055
Switch Ports Model SW Version SW Image Mode
------ ----- ----- ---------- ---------- ----
* 1 38 C9300-24UX 16.6.6 CAT9K_IOSXE INSTALL
Configuration register is 0x102
