IOS-XE 16.12
lanbasek9
SmartLicense
1xPWR-C1-350WAC (Takes C13 Plug)

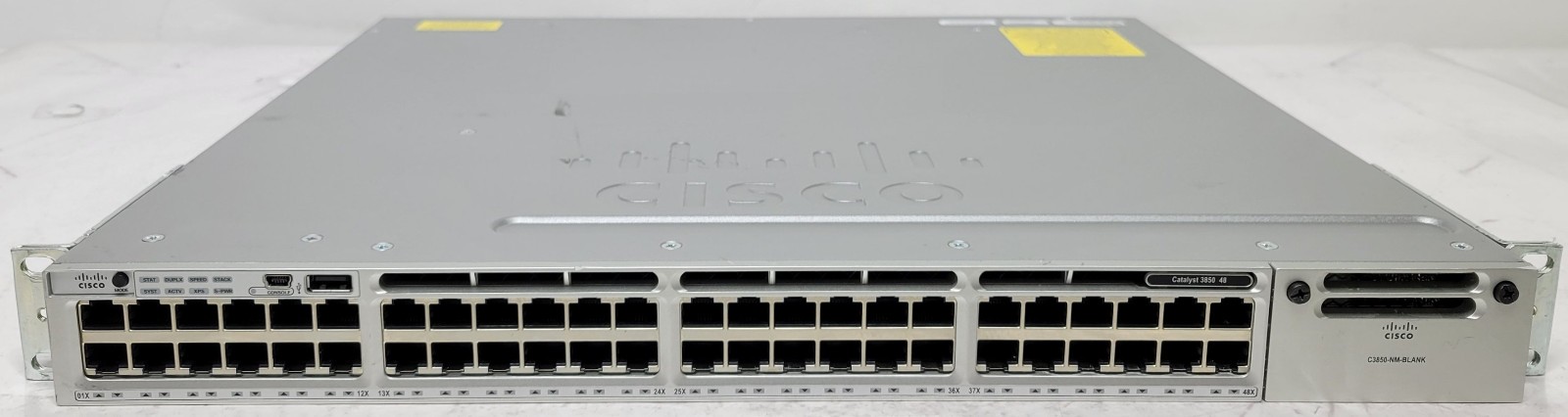

Moderate signs of prior use, including scratching
on the top of the box, face plate scratches, slight discoloration
along the top of the box and possible
adhesive residue may be remaining. See photo's for more
Switch 1 FAN 1 is OK
Switch 1 FAN 2 is OK
Switch 1 FAN 3 is OK
FAN PS-1 is OK
FAN PS-2 is NOT PRESENT
Switch 1: SYSTEM TEMPERATURE is OK
Inlet Temperature Value: 20 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 46 Degree Celsius
Red Threshold : 56 Degree CelsiusHotspot Temperature Value: 36 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 105 Degree Celsius
Red Threshold : 125 Degree Celsius
SW PID Serial# Status Sys Pwr PoE Pwr Watts
-- ------------------ ---------- --------------- ------- ------- -----
1A PWR-C1-350WAC ART2225F74Z OK Good n/a 350
1B Not PresentSwitch#show inv
NAME: "c38xx Stack", DESCR: "c38xx Stack"
PID: WS-C3850-48T-L , VID: V07 , SN: FOC2229L3J3NAME: "Switch 1", DESCR: "WS-C3850-48T-L"
PID: WS-C3850-48T-L , VID: V07 , SN: FOC2229L3J3NAME: "Switch 1 - Power Supply A", DESCR: "Switch 1 - Power Supply A"
PID: PWR-C1-350WAC , VID: V02 , SN: ART2225F74Z
Switch#show post
Stored system POST messages:Switch 1
---------POST: MBIST Tests : Begin
POST: MBIST Tests : End, Status PassedPOST: CRYPTO Tests : Begin
POST: CRYPTO Tests : End, Status PassedPOST: PHY Loopback: loopback Test : Begin
POST: PHY Loopback: loopback Test : End, Status PassedPOST: Thermal, Temperature Tests : Begin
POST: Thermal, Temperature Tests : End, Status PassedPOST: Thermal, Fan Tests : Begin
POST: Thermal, Fan Tests : End, Status PassedPOST: SIF Tests : Begin
POST: SIF Tests : End, Status Passed
Switch#show int statusPort Name Status Vlan Duplex Speed Type
Gi1/0/1 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/2 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/3 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/4 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/5 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/6 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/7 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/8 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/9 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/10 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/11 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/12 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/13 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/14 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/15 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/16 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/17 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/18 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/19 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/20 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/21 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/22 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/23 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/24 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/25 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/26 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/27 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/28 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/29 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/30 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/31 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/32 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/33 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/34 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/35 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/36 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/37 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/38 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/39 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/40 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/41 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/42 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/43 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/44 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/45 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/46 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/47 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/48 notconnect 1 auto auto 10/100/1000BaseTX
Switch#show pow iModule Available Used Remaining
(Watts) (Watts) (Watts)
------ --------- -------- ---------
1 n/a n/a n/a
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----
Switch#sho module
Switch Ports Model Serial No. MAC address Hw Ver. Sw Ver.
------ ----- --------- ----------- -------------- ------- --------
1 56 WS-C3850-48T-L FOC2229L3J3 04eb.403a.0180 V07 16.12.1
Switch#show ver
Cisco IOS XE Software, Version 16.12.01
Cisco IOS Software [Gibraltar], Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSALK9-M), Version 16.12.1, RELEASE SOFTWARE (fc4)
Technical Support: (c) 1986-2019 by Cisco Systems, Inc.
Compiled Tue 30-Jul-19 14:24 by mcpre
Cisco IOS-XE software, Copyright (c) 2005-2019 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XE ROMMON
BOOTLDR: CAT3K_CAA Boot Loader (CAT3K_CAA-HBOOT-M) Version 3.58, RELEASE SOFTWARE (P)Switch uptime is 4 minutes
Uptime for this control processor is 7 minutes
System returned to ROM by Power Failure or Unknown
System image file is reload reason: Power Failure or UnknownThis product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.A summary of U.S. laws governing Cisco cryptographic products may be found you require further assistance please contact us by sending email to
(email)
Technology Package License Technology-package
Current Type Next Smart License lanbasek9
None Subscription Smart License None
Smart Licensing Status: UNREGISTERED/EVAL EXPIREDcisco WS-C3850-48T (MIPS) processor (revision AB0) with 796343K/6147K bytes of memory.
Processor board ID FOC2229L3J3
1 Virtual Ethernet interface
52 Gigabit Ethernet interfaces
4 Ten Gigabit Ethernet interfaces
2048K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
250456K bytes of Crash Files at crashinfo:.
1609272K bytes of Flash at flash:.
0K bytes of WebUI ODM Files at webui:.Base Ethernet MAC Address : 04:eb:40:3a:01:80
Motherboard Assembly Number : 73-16296-08
Motherboard Serial Number : FOC222849KB
Model Revision Number : AB0
Motherboard Revision Number : B0
Model Number : WS-C3850-48T
System Serial Number : FOC2229L3J3
Switch Ports Model SW Version SW Image Mode
------ ----- ----- ---------- ---------- ----
* 1 56 WS-C3850-48T 16.12.1 CAT3K_CAA-UNIVERSALK9 BUNDLE
Configuration register is 0x102
