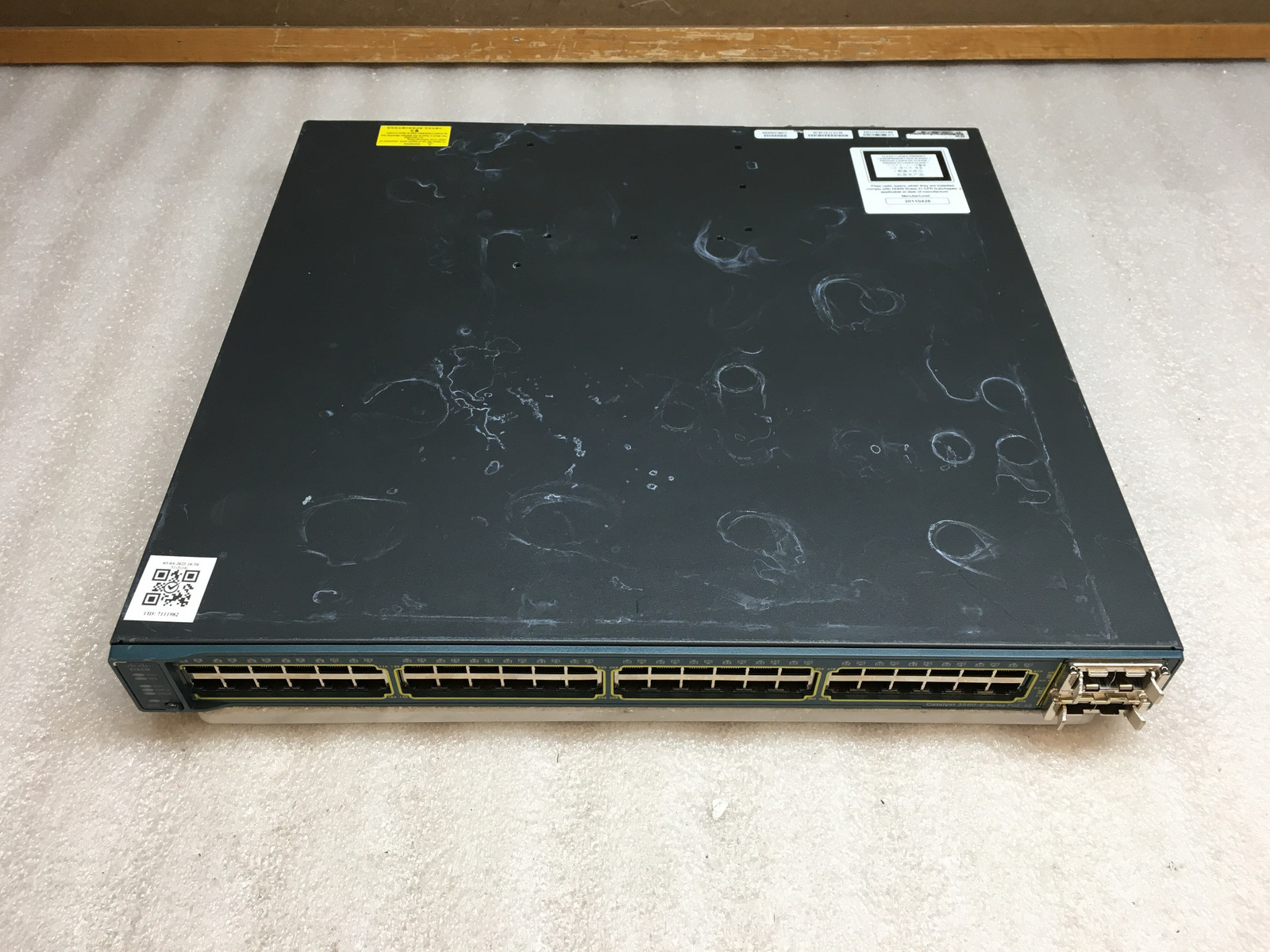

Listing Grid template example Product Photo Description Cisco Catalyst 3560-E Series PoE-48 Port Network Switch WS-C3560E-48PD Cisco Catalyst 3560-E Series PoE-48 Port Network Switch WS-C3560E-48PD
The Cisco Catalyst 3560-E Series is a high-performance, enterprise-class switch designed to enhance network efficiency with its advanced security and Power over Ethernet (PoE) capabilities. Ideal for small to medium business networks, this switch ensures seamless connectivity and optimal data traffic management.
Device Information
cisco WS-C3560E-48PD (PowerPC405) processor (revision L0) with 122880K/8184K bytes of memory.
Processor board ID
Last reset from power-on
1 Virtual Ethernet interface
1 FastEthernet interface
52 Gigabit Ethernet interfaces
2 Ten Gigabit Ethernet interfaces
The password-recovery mechanism is enabled.
512K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address: 88:F0:77:81:4E:00
Motherboard assembly number: 73-11178-14
Motherboard serial number:
Model revision number: L0
Motherboard revision number: B0
Model number: WS-C3560E-48PD-E
Daughterboard assembly number: 800-29737-01
Daughterboard serial number:
System serial number:
Top Assembly Part Number: 800-28926-04
Top Assembly Revision Number: B0
Version ID: V05
CLEI Code Number: COMCG00ARB
Hardware Board Revision Number: 0x00
Switch Ports ModelSW VersionSW Image
------ ----- -------------------------
*1 register is 0xF
Specifications
- Model: WS-C3560E-48PD
- 48 x 10/100/1000 Ethernet Ports with PoE
- 2 x 10-Gigabit Ethernet X2 uplinks
- Layer 3 routing capability
- IEEE 802.3af PoE support
- Forwarding Bandwidth: 128 Gbps
- Throughput: 101.2 Mpps
- MAC Address Table Size: 12,000 entries
- StackWise technology for scalability
- Management via Cisco IOS Software
Key Features
- High-speed Gigabit Ethernet connectivity with PoE to power connected devices
- Advanced security features, including access control lists (ACLs) and port security
- Layer 3 routing for more efficient traffic management
- Energy-efficient design with intelligent power management
- Scalability for business growth with StackWise technology
- Dual-redundant power supply support for increased uptime
Important Notes
- Marks from previous use and storage
Included
Not Included
- Power adapter
- Rack mounting kit
- Console cable
- User manual
Specifications Functional Condition:
F3 - Key Functions Working
Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
Cosmetic Condition:
C3 - Used Fair
Moderate scratches or scuffs. Possible small dings or dents. Some discoloration may be present. Hinges may be a little loose.
Data Sanitization:
S3 - Data Clear
Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
Mpn
WS-C3560E-48PD Function Tests Powers On
Passed Physical Inspection
Passed Functions
