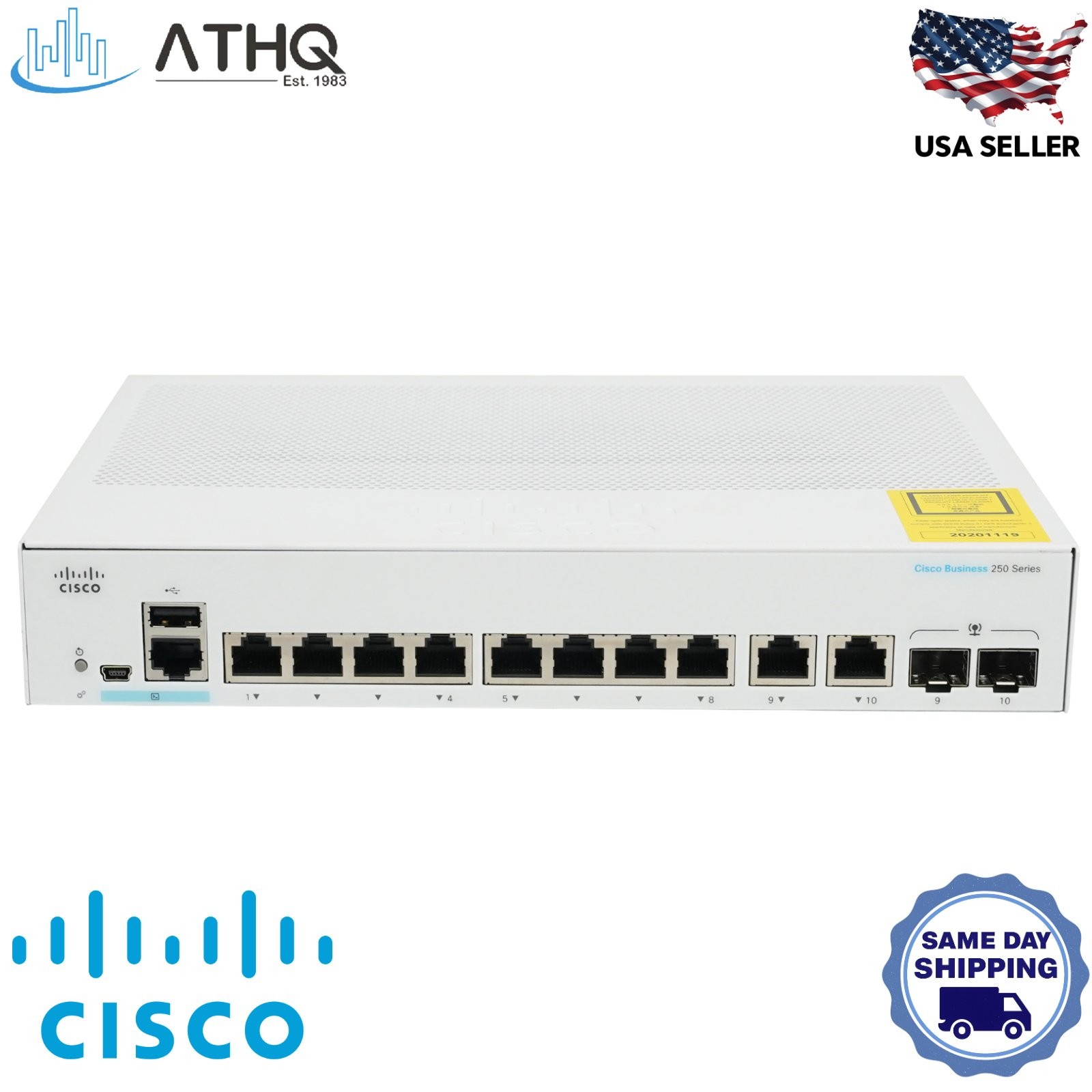

Cisco CBS250-8T-E-2G Business 250 Series 8-Port Gigabit Smart Switch - 2 Copper/SFP Combo Uplinks, Layer 3 Static Routing, Fanless - Refresh

The Cisco CBS250-8T-E-2G is an 8-port Gigabit Smart Switch from the Cisco Business 250 Series, purpose-built to give small businesses, branch offices, and growing networks a reliable, secure, and easy-to-manage foundation. It delivers 8 x 10/100/1000 Gigabit Ethernet ports plus 2 Gigabit copper/SFP combo uplink ports for flexible fiber or copper expansion, with 20 Gbps nonblocking switching capacity and a 14.88 Mpps forwarding rate. Advanced capabilities far beyond an unmanaged switch — VLANs, Layer 3 static routing, QoS, and comprehensive security — are configured through a free web UI, the Cisco Business Dashboard, or the Cisco Business mobile app with no recurring license. Its fanless, compact design runs completely silent and supports desktop, wall, or rack placement, making it ideal for offices, retail spaces, and classrooms.

Cisco CBS250-8T-E-2G - Key Features & Benefits

• 8 Gigabit Ports + 2 Combo Uplinks: 8 x 10/100/1000 RJ-45 ports plus 2 Gigabit combo ports (RJ-45 or SFP) for uplinks over copper or fiber, backed by 20 Gbps nonblocking switching.
• Layer 3 Static Routing & Smart Management: Segments and prioritizes traffic with up to 255 VLANs, Layer 3 static routing, QoS, and full IPv4/IPv6 support — capabilities far beyond an unmanaged switch.
• Free Management — No Subscription: Configure and monitor through the built-in web UI, Cisco Business Dashboard, Cisco Business mobile app, SNMP, or CLI — with no recurring license or cloud fee.
• Enterprise-Grade Security: IEEE 802.1X port authentication, extensive ACLs (up to 512 rules), DoS protection, and SSL/SSH secure management help keep unauthorized users off the network.
• Fanless, Energy-Efficient Design: Completely silent fanless operation with IEEE 802.3az Energy Efficient Ethernet; the compact chassis draws only about 12.6W, ideal for offices, retail, and classrooms.

Cisco CBS250-8T-E-2G - Technical Specifications

• Part Number: CBS250-8T-E-2G • Series: Cisco Business 250
• Ports: 8 x 10/100/1000 RJ-45 • 2 x Gigabit combo RJ-45/SFP (either-or)
• Switching Capacity: 20 Gbps • Forwarding Rate: 14.88 Mpps
• Switch Layer: Layer 3 static routing (up to 32 static routes, 16 IP interfaces)
• PoE: None — data only
• VLANs: Up to 255 active • MAC Table: 8K addresses • ACLs: Up to 512 rules
• Jumbo Frames: Up to 9216 bytes
• Memory: 256 MB Flash • 512 MB DRAM • 1.5 MB packet buffer
• Local Ports: RJ-45 console port • USB Type-A slot
• Management: Web UI (HTTP/HTTPS), SNMP v1/2c/3, CLI, Cisco Business Dashboard & mobile app
• Power: External adapter, 100–240V 50/60Hz • ~12.6W typical
• Cooling: Fanless (silent)
• Dimensions: 10.56 x 7.28 x 1.73 in (268 x 185 x 44 mm) • Weight: 3.06 lb (1.39 kg)
• Mounting: Compact desktop • Wall-mount • Rack-mount (kit included)
• Standards: IEEE 802.3/u/ab/az, 802.1Q, 802.1X • Certification: UL 62368, CSA 22.2, CE, FCC Part 15 Class A
• Condition: Refresh

Cisco CBS250-8T-E-2G - Frequently Asked Questions (FAQ)

• Does this switch provide PoE to power phones, cameras, or access points?
  No — the CBS250-8T-E-2G is a data-only switch with no Power over Ethernet. If you need PoE, the PoE+ variants in this family (CBS250-8PP-E-2G, CBS250-8P-E-2G, CBS250-8FP-E-2G) supply power over the RJ-45 ports.
• Does it require a cloud subscription or license to manage?
  No. Management is free through the built-in web UI, Cisco Business Dashboard, the Cisco Business mobile app, SNMP, or CLI — there is no recurring license or cloud fee.
• How is the switch powered?
  Through an external power adapter with a universal 100–240V 50/60Hz input. The unit is fanless for completely silent operation and draws only about 12.6W.
