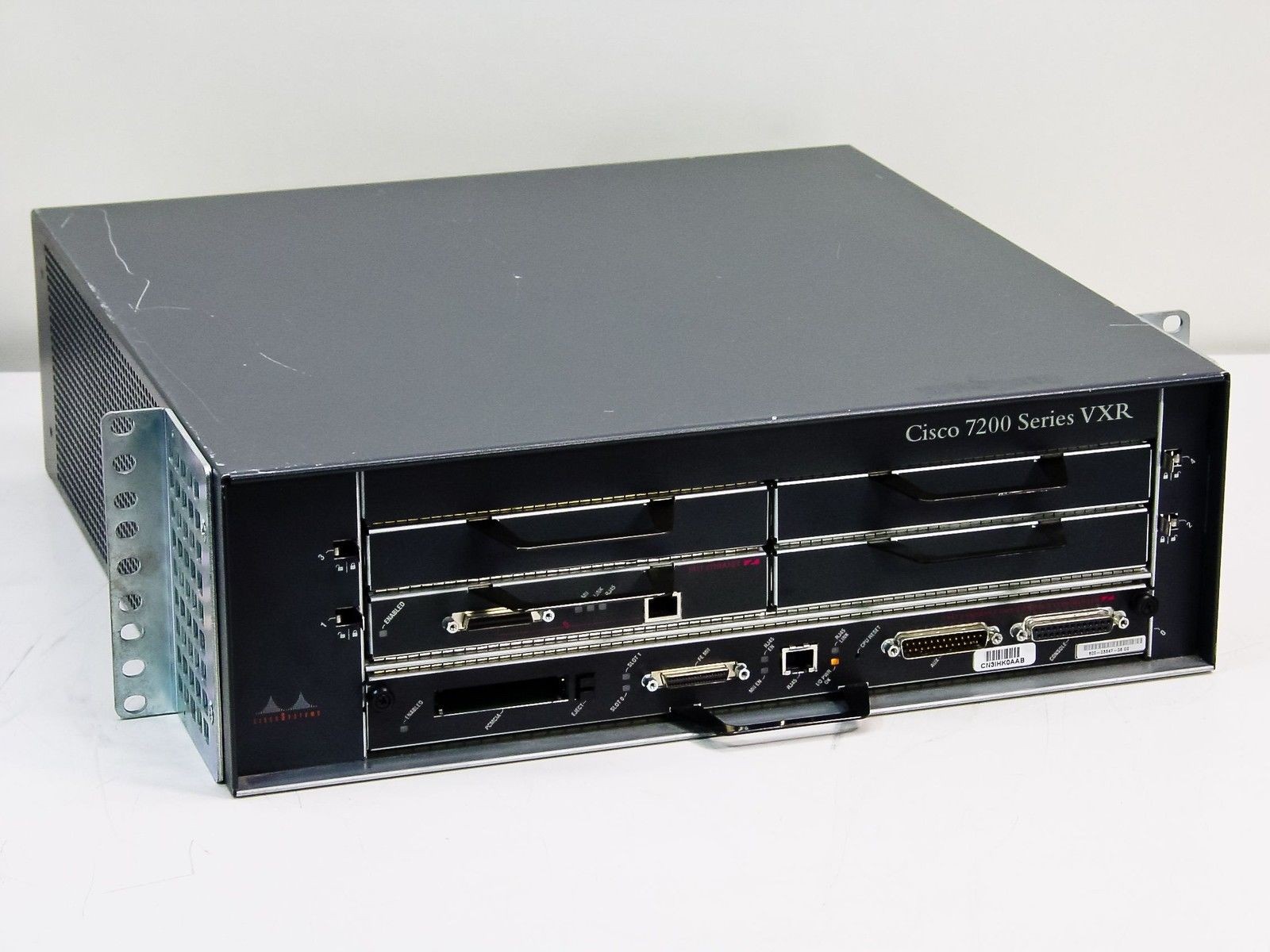

Cisco 7204VXR Router Chassis w/ NPE Fast Ethernet I/O Controller Dual PSU Rack
Cisco 7204VXR Router Chassis w/ NPE Fast Ethernet I/O Controller Dual PSU Rack
The Cisco 7204VXR is a 4-slot, 3U rackmount chassis from the Cisco 7200 Series VXR platform — a high-performance modular router designed for enterprise WAN aggregation, service provider edge routing, and large-scale campus network core applications. This listing includes the 7204VXR chassis with a Network Processing Engine (NPE) module installed, a Fast Ethernet Input/Output Controller card, and two Cisco 34-0687-01 redundant AC power supplies — a complete, ready-to-configure routing platform.
Specifications & What's Included
- Model: Cisco 7204VXR (Cisco 7200 Series VXR platform)
- Form factor: 19-inch rackmount, 3U
- Module slots: 4 interface card slots
- Network Processing Engine (NPE) module installed
- Fast Ethernet Input/Output Controller (I/O Controller) installed
- I/O Controller ports: Fast Ethernet RJ-45, DB-25 Console, DB-25 AUX
- I/O Controller LEDs: ACT, LNK, FLG indicators
- NPE module: PCMCIA slot (with eject button), Fast Ethernet RJ-45, DB-25 connector
- Power supplies: 2x Cisco P/N 34-0687-01 Rev G0 (dual redundant)
- Power supply rating: 100–240V AC, 5A, 50/60Hz (universal input)
- Power supply connectors: IEC C14 AC inlet, rocker on/off switch per PSU
- Fast Ethernet I/O Controller PCB: Pulse transformer, Texas Instruments ICs visible
- Rack ears (mounting ears) installed
- Platform: Cisco IOS
Applications
The Cisco 7200 Series VXR routers were a cornerstone of enterprise and service provider networks from the late 1990s through the 2000s, designed to deliver high-speed, modular WAN routing with a range of interface options. The 7204VXR variant supports four interface slots, making it well-suited for multi-protocol WAN aggregation, T1/E1/T3 connectivity, Frame Relay, ATM, and IP/MPLS edge routing. The VXR chassis introduced a more powerful Network Processing Engine architecture compared to the original 7200 series, enabling higher packet-forwarding rates required by growing broadband and enterprise traffic demands. These platforms were widely deployed by ISPs, enterprise IT departments, and government networks as core and edge routers, and remain in use today for lab environments, Cisco IOS training and certification labs (CCNP/CCIE), legacy network maintenance, and low-volume WAN aggregation where a cost-effective IOS platform is needed. The modular design allows network adapters and WAN interface cards to be swapped to support a wide variety of connectivity types.
Condition: Used
This Cisco 7204VXR Network Processing Engine router chassis has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The chassis shows normal wear consistent with prior rack deployment — light surface scuffing on the panels, but no cracks, major dents, or damage. All four module bays, the dual Cisco 34-0687-01 power supplies, the Fast Ethernet I/O Controller, and the NPE module are present and appear intact. Please view our photo set and contact us if you have any questions. Visit Our Store
