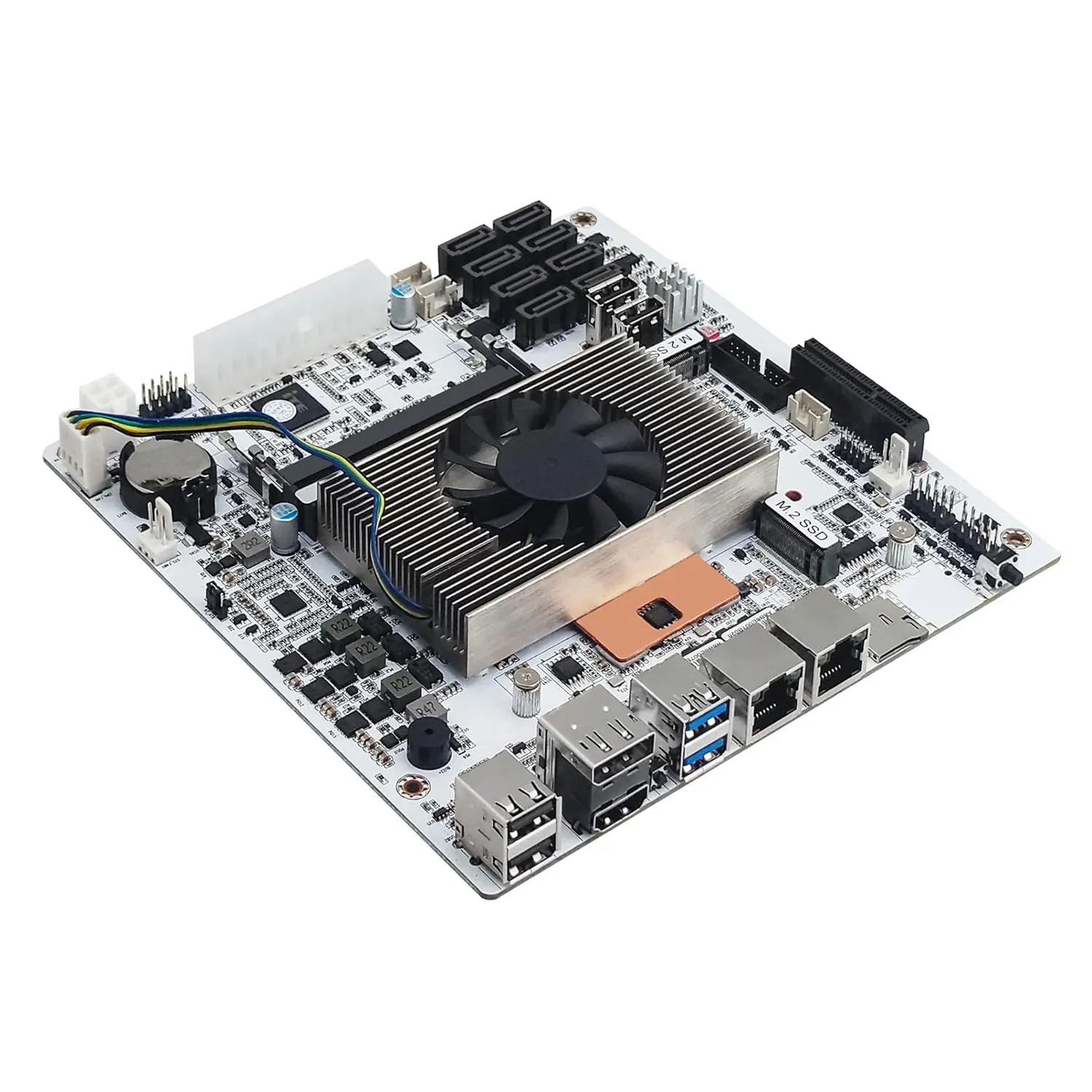

CWWK M11 Mini ITX NAS Motherboard

Core i5-8265U • 8-Bay SATA • Dual 2.5GbE • 2x NVMe

🖥️ Key FeaturesEfficient 8th Gen CPU

Intel Core i5-8265U (4-core/8-thread), 1.6GHz base up to 3.4GHz, 15W TDP. Supports VT-x/VT-d virtualization and hardware passthrough. UEFI & Legacy boot supported.

Massive Storage Capacity

8x SATA 3.0 ports plus 2x M.2 NVMe (PCIe 3.0 x2) slots for 2280 SSDs. Dual-channel DDR4 SO-DIMM supports up to 64GB RAM.

Dual 2.5GbE Networking

Two Intel i226-V 2.5GbE controllers with link aggregation support. Compatible with TrueNAS, Unraid, Windows, Linux, and PVE virtualization systems.

Rich I/O Options

HDMI (4K@24Hz) + DisplayPort (4K@60Hz) dual display, 1x USB 3.0, 3x USB 2.0, internal USB 2.0 headers, TF card slot, and Clear CMOS button for easy recovery.

📐 SpecificationsBrandCWWKProcessorIntel Core i5-8265U (4C/8T)Form FactorMini-ITX (17 x 17cm)MemoryDDR4 SO-DIMM, dual channel, up to 64GB (2133/2400/2666/3200MHz)Storage8x SATA 3.0 + 2x M.2 NVMe (PCIe 3.0 x2)Networking2x Intel i226-V 2.5GbE LANDisplay OutputHDMI 4K@24Hz + DisplayPort 4K@60HzUSB Ports1x USB 3.0, 3x USB 2.0, 2x internal USB 2.0Expansion1x PCIe x4 slot (PCIe 3.0 x2 signal)Power Input24-pin + 4-pin📦 Package Contents

1x CWWK M11 Mini-ITX Motherboard, 1x I/O Shield, 1x PDF Manual

🖼️ Product Images❓ FAQDoes this support sleep mode?

No, sleep mode is not supported on this board — designed for 24/7 continuous operation.

What operating systems are compatible?

Works with Windows, Linux, TrueNAS, Unraid, and PVE virtualization systems.

What is the maximum RAM supported?

Up to 64GB using two DDR4 SO-DIMM modules (32GB each).

Does it include a CPU cooler?

The board is equipped with an onboard cooling solution as shown in the product images.
