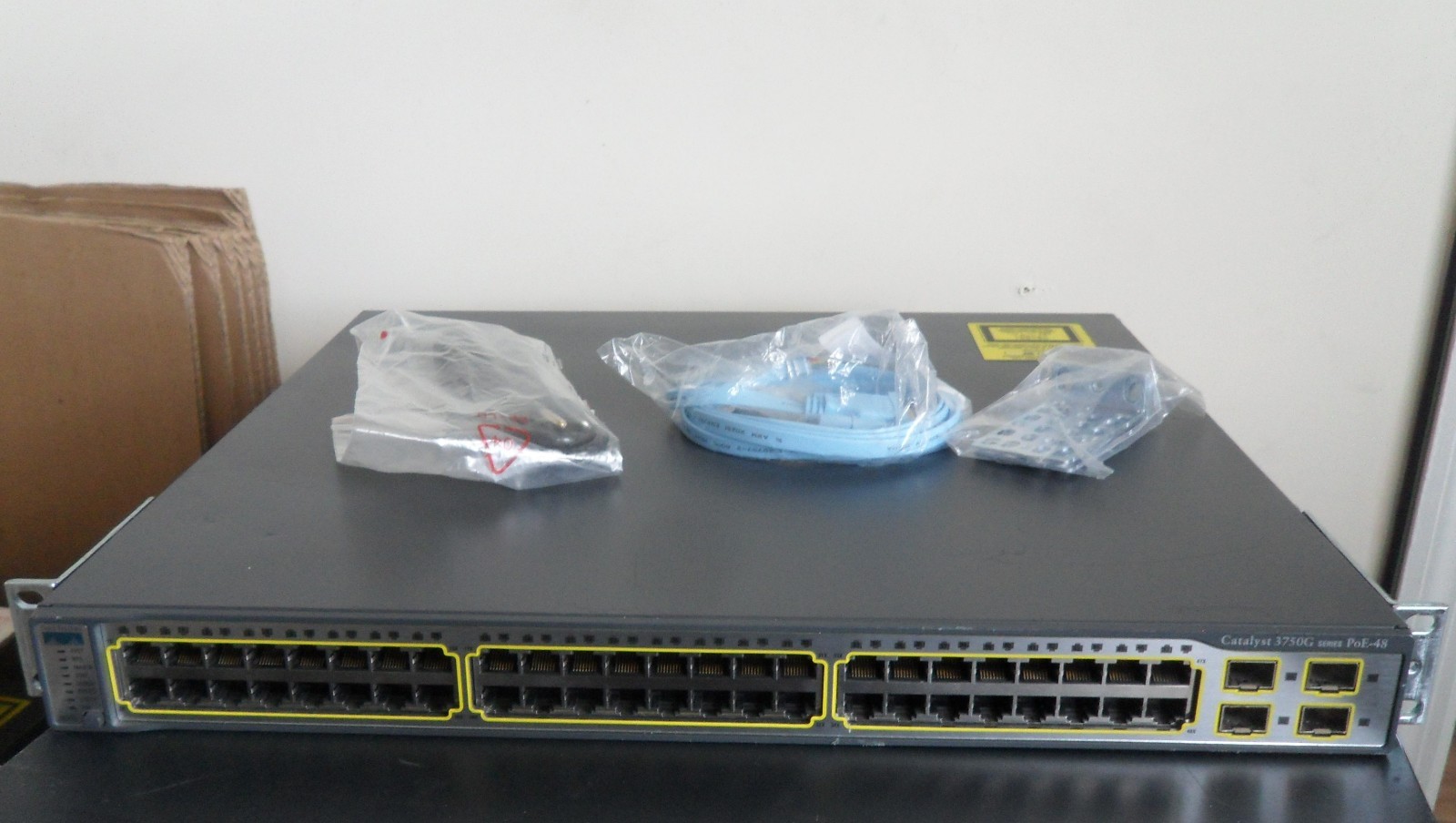

CISCO WS-C3750G-48PS-S 48-Port Gigabit Layer 3 POE Switch 3750G-48PS-E ios-15.0
TEST REPORT
BOOT UP OUTPUTBoot Sector Filesystem (bs) installed, fsid: 2Base ethernet MAC Address: 00:1c:57:a6:de:80Xmodem file system is available.The password-recovery mechanism is enabled.Initializing Flash...flashfs[0]: 515 files, 11 directoriesflashfs[0]: 0 orphaned files, 0 orphaned directoriesflashfs[0]: Total bytes: 32514048flashfs[0]: Bytes used: 22097920flashfs[0]: Bytes available: 10416128flashfs[0]: flashfs fsck took 9 seconds....done Initializing Flash.done.
Interrupt within 5 seconds to abort boot process.Loading uncompressed and installed, entry point: 0x1000000executing...
Restricted Rights Legend
Use, duplication, or disclosure by the Government issubject to restrictions as set forth in subparagraph(c) of the Commercial Computer Software - RestrictedRights clause at FAR sec. 52.227-19 and subparagraph(c) (1) (ii) of the Rights in Technical Data and ComputerSoftware clause at DFARS sec. 252.227-7013.
cisco Systems, Inc. 170 West Tasman Drive San Jose, California 95134-1706
Cisco IOS Software, C3750 Software (C3750-IPSERVICESK9-M), Version 15.0(2)SE11, RELEASE SOFTWARE (fc1)Copyright (c) 1986-2013 by Cisco Systems, Inc.Compiled Fri 25-Oct-13 13:28 by prod_rel_teamHULC:Collect Entropy thread starting on box...Initializing flashfs...
flashfs[2]: 515 files, 11 directoriesflashfs[2]: 0 orphaned files, 0 orphaned directoriesflashfs[2]: Total bytes: 32514048flashfs[2]: Bytes used: 22097920flashfs[2]: Bytes available: 10416128flashfs[2]: flashfs fsck took 3 seconds.flashfs[2]: Initialization complete....done Initializing flashfs.FIPS: Flash Key Check : BeginFIPS: Flash Key Check : End, Not Found, FIPS Mode Not Enabled
POST: CPU MIC register Tests : BeginPOST: CPU MIC register Tests : End, Status Passed
POST: PortASIC Memory Tests : BeginPOST: PortASIC Memory Tests : End, Status Passed
POST: CPU MIC interface Loopback Tests : BeginPOST: CPU MIC interface Loopback Tests : End, Status Passed
POST: PortASIC RingLoopback Tests : BeginPOST: PortASIC RingLoopback Tests : End, Status Passed
extracting front_end/front_end_ucode_info (172 bytes)Waiting for Stack Master Election...POST: PortASIC CAM Subsystem Tests : BeginPOST: PortASIC CAM Subsystem Tests : End, Status Passed
POST: No Cable found on stack port 1POST: No Cable found on stack port 2
POST: PortASIC Stack Port Loopback Tests : BeginPOST: PortASIC Stack Port Loopback Tests : End, Status Passed
POST: PortASIC Port Loopback Tests : BeginPOST: PortASIC Port Loopback Tests : End, Status Passed
Election CompleteSwitch 1 booting as MasterWaiting for Port download...CompleteThis product contains cryptographic features and is subject to UnitedStates and local country laws governing import, export, transfer anduse. Delivery of Cisco cryptographic products does not implythird-party authority to import, export, distribute or use encryption.Importers, exporters, distributors and users are responsible forcompliance with U.S. and local country laws. By using this product youagree to comply with applicable laws and regulations. If you are unableto comply with U.S. and local laws, return this product immediately.
cisco WS-C3750G-48PS (PowerPC405) processor (revision F0) with 131072K bytes ofmemory.Processor board ID FOC***********Last reset from power-on1 Virtual Ethernet interface52 Gigabit Ethernet interfacesThe password-recovery mechanism is enabled.
512K bytes of flash-simulated non-volatile configuration memory.Base ethernet MAC Address : 00:26:0A:28:6A:80Motherboard assembly number : 73-10216-09Power supply part number : 341-0108-04Motherboard serial number : FOC**********Power supply serial number : AZS132121MMModel revision number : H0Motherboard revision number : A0Model number : WS-C3750G-48PS-SSystem serial number : FOC************Top Assembly Part Number : 800-27481-02Top Assembly Revision Number : B0Version ID : V06CLEI Code Number : COM7V10ARAHardware Board Revision Number : 0x09Switch Ports Model SW Version SW Image------ ----- ----- ---------- ----------* 1 52 WS-C3750G-48PS 15.0(2)SE11 C3750-IPSERVICESK9-MSHOW POST
witch#sh postStored system POST messages:
Switch 2---------
POST: CPU MIC register Tests : BeginPOST: CPU MIC register Tests : End, Status Passed
POST: PortASIC Memory Tests : BeginPOST: PortASIC Memory Tests : End, Status Passed
POST: CPU MIC interface Loopback Tests : BeginPOST: CPU MIC interface Loopback Tests : End, Status Passed
POST: PortASIC RingLoopback Tests : BeginPOST: PortASIC RingLoopback Tests : End, Status Passed
POST: PortASIC CAM Subsystem Tests : BeginPOST: PortASIC CAM Subsystem Tests : End, Status Passed
POST: PortASIC Stack Port Loopback Tests : BeginPOST: PortASIC Stack Port Loopback Tests : End, Status Passed
POST: PortASIC Port Loopback Tests : BeginPOST: PortASIC Port Loopback Tests : End, Status Passed
SHOW VERSIONSwitch#sh versionCisco IOS Software, C3750 Software (C3750-IPSERVICESK9-M), Version 15.0(2)SE11, RELEASE SOFTWARE (fc1)Technical Support:Copyright (c) 1986-2014 by Cisco Systems, Inc.Compiled Mon 03-Mar-14 22:45 by prod_rel_teamImage text-base: 0x01000000, data-base: 0x02F00000
ROM: Bootstrap program is C3750 boot loaderBOOTLDR: C3750 Boot Loader (C3750-HBOOT-M) Version 12.2(44)SE5, RELEASE SOFTWARE (fc1)
Switch uptime is 18 minutesSystem returned to ROM by power-onSystem image file is product contains cryptographic features and is subject to UnitedStates and local country laws governing import, export, transfer anduse. Delivery of Cisco cryptographic products does not implythird-party authority to import, export, distribute or use encryption.Importers, exporters, distributors and users are responsible forcompliance with U.S. and local country laws. By using this product youagree to comply with applicable laws and regulations. If you are unableto comply with U.S. and local laws, return this product immediately.cisco WS-C3750G-48PS (PowerPC405) processor (revision H0) with 131072K bytes of memory.Processor board ID FOC*********Last reset from power-on1 Virtual Ethernet interface52 Gigabit Ethernet interfacesThe password-recovery mechanism is enabled.
512K bytes of flash-simulated non-volatile configuration memory.Base ethernet MAC Address : 00:26:0A:28:6A:80Motherboard assembly number : 73-10216-09Power supply part number : 341-0108-04Motherboard serial number : FOC**********Power supply serial number : AZS132121MMModel revision number : H0Motherboard revision number : A0Model number : WS-C3750G-48PS-SSystem serial number : FOC************Top Assembly Part Number : 800-27481-02Top Assembly Revision Number : B0Version ID : V06CLEI Code Number : COM7V10ARAHardware Board Revision Number : 0x09Switch Ports Model SW Version SW Image------ ----- ----- ---------- ----------* 1 52 WS-C3750G-48PS 15.0(2)SE11 C3750-IPSERVICESK9-M
SHOWENVIRONMENT ALL
Switch#sh env allFAN is OKTEMPERATURE is OKTemperature Value: 40 Degree CelsiusTemperature State: GREENYellow Threshold : 58 Degree CelsiusRed Threshold : 68 Degree CelsiusSW PID Serial# Status Sys Pwr PoE Pwr Watts-- ------------------ ---------- --------------- ------- ------- -----2 Built-in Good
SW Status RPS Name RPS Serial# RPS Port#-- ------------- ---------------- ----------- ---------2 Not Present <>
SHOW FLASH:
Switch#sh flash
Directory of flash:/
2 drwx 192 Mar 1 1993 04:00:07 +00:00 c3750-ipservicesk9-mz.150.2.SE8 83 -rwx 110 Mar 1 1993 04:06:55 +00:00 info 84 -rwx 1048 Mar 1 1993 00:06:17 +00:00 multiple-fs
32514048 bytes total (18948608 bytes Please read our policy to have a confident purchase! ------------------------------
satisfaction is our first you encounter any problem with the item you purchased please contact us before you open a case!
We will make it right faster than the case processing time!
--Please contact us if you would like to return the item you purchased. We will provide you RMA#
and the return label.
--If your order includes console cable, please note limit One Console cable per order. If you need more than one, please include a note with your purchase.**These items are Government/Corporate surplus and we have no knowledge of prior use.
**Item in Picture is for advertising purposes only. Serial number, Version ID and Packaging may be different than what is in the pictures.
**Expect normal wear and tear on used items from previous usage.--Payment must be made within 2 days of purchase. An unpaid case may be opened after 2 days if payment still not made.
--No returns on AS-IS items unless otherwise stated. We list them honestly and we list how it was tested.
--We only ship to the address you enter at checkout.
Sales Tax:
--New Jersey ( NJ ) customers are subject to 6.625% sales tax. may collect sales tax on behlf of NJ and any other state which requires sales tax.
--If you are a certified reseller in NJ or any other state or exempt from sales tax, contact before you place the order.
Shipping:
--Signature is required on all shipments over $100 .
--We ship within 1~3 business days. It depends on availability of the item you purchased. Contact us to check the availability for same day shipping!
--Free Shipping is only for the lower 48 states. There may be extra shipping cost for ALASKA, HAWAII and Puerto Rico.
--Contact us to get estimated shipping cost for noncontiguous states and international shipping.
**We do NOT ship to:
Guam, Virgin Islands, American Samoa.--Tracking will be posted on E-bay as soon as the item is shipped.
--Please feel free to send any question.
--------------- We hope this has been informative for you and thank you for Network Solutions, LLC.
