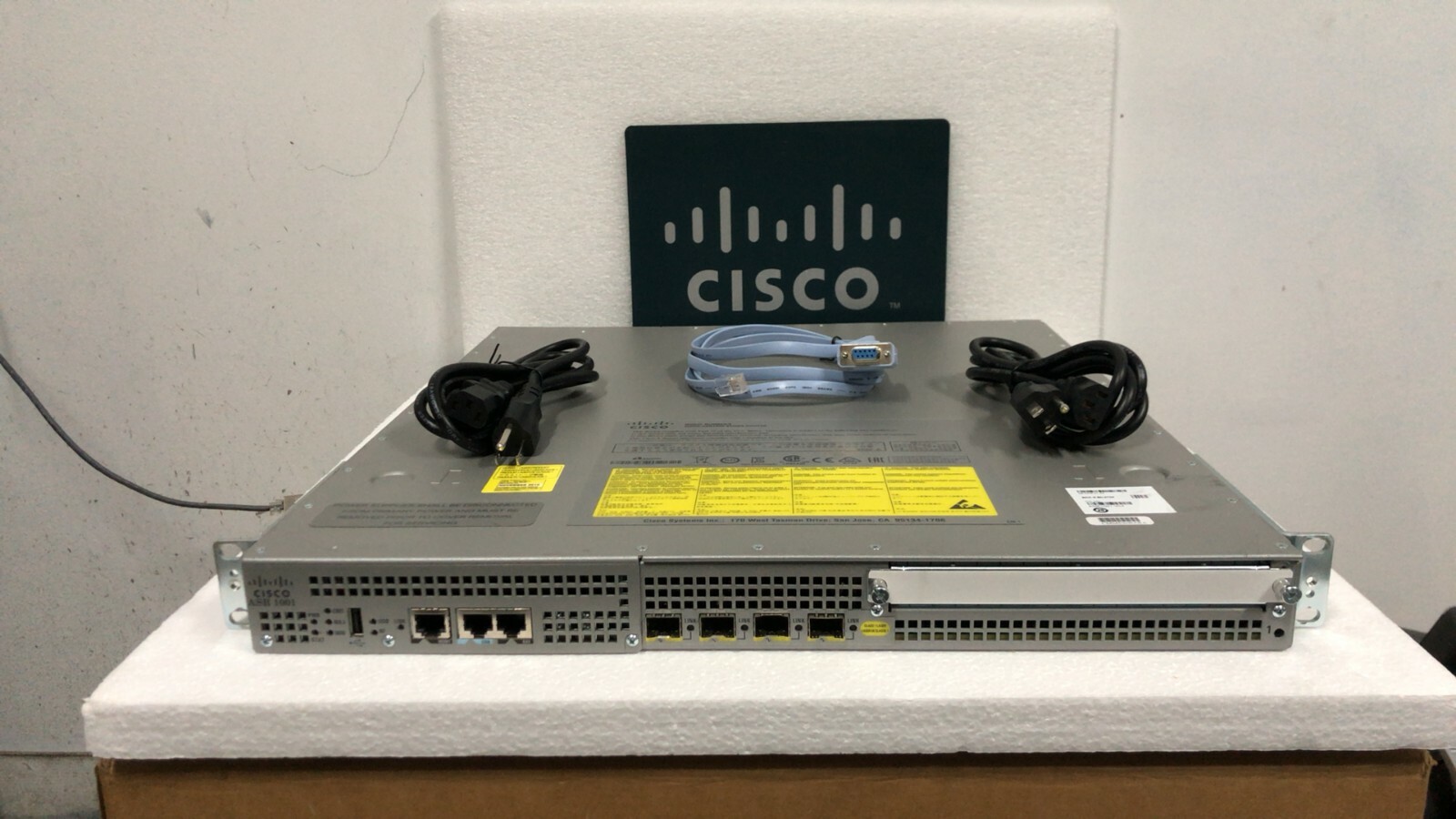

CISCO ASR1001 GigE Aggregation Services Router 4 BUILT-IN GE PORTSDUAL POWER AC
TEST REPORTRouter#show verCisco IOS XE Software, Version 03.16.07b.S - Extended Support ReleaseCisco IOS Software, ASR1000 Software (X86_64_LINUX_IOSD-UNIVERSALK9-M), Version 15.5(3)S7b, RELEASE SOFTWARE (fc1)Copyright (c) 1986-2018 by Cisco Systems, Inc.Compiled Fri 02-Mar-18 08:21 by mcpreCisco IOS-XE software, Copyright (c) 2005-2018 by cisco Systems, Inc.All rights reserved. Certain components of Cisco IOS-XE software arelicensed under the GNU General Public License ("GPL") Version 2.0. Thesoftware code licensed under GPL Version 2.0 is free software that comeswith ABSOLUTELY NO WARRANTY. You can redistribute and/or modify suchGPL code under the terms of GPL Version 2.0. For more details, see thedocumentation or "License Notice" file accompanying the IOS-XE software,or the applicable URL provided on the flyer accompanying the IOS-XEsoftware.ROM: IOS-XE ROMMON
Router uptime is 3 minutesUptime for this control processor is 4 minutesSystem returned to ROM by reloadSystem image file is reload reason: Reload Command
This product contains cryptographic features and is subject to UnitedStates and local country laws governing import, export, transfer anduse. Delivery of Cisco cryptographic products does not implythird-party authority to import, export, distribute or use encryption.Importers, exporters, distributors and users are responsible forcompliance with U.S. and local country laws. By using this product youagree to comply with applicable laws and regulations. If you are unableto comply with U.S. and local laws, return this product immediately.
License Level: ipbaseLicense Type: PermanentNext reload license Level: ipbase
cisco ASR1001 (1RU) processor (revision 1RU) with 1065682K/6147K bytes of memory.Processor board ID SSI1942000R4 Gigabit Ethernet interfaces32768K bytes of non-volatile configuration memory.4194304K bytes of physical memory.7741439K bytes of eUSB flash at bootflash:.
Configuration register is 0x2102
Router# show invNAME: "Chassis", DESCR: "Cisco ASR1001 Chassis w/o IDC"PID: ASR1001 , VID: V04, SN: SSI1942****
NAME: "Power Supply Module 0", DESCR: "Cisco ASR1001 AC Power Supply"PID: ASR1001-PWR-AC , VID: V02, SN: MP5194300KL
NAME: "Power Supply Module 1", DESCR: "Cisco ASR1001 AC Power Supply"PID: ASR1001-PWR-AC , VID: V02, SN: MP5194300DZ
NAME: "Fan Tray", DESCR: "Cisco ASR1001 Fan Tray"PID: ASR1001-FANTRAY , VID: , SN:
NAME: "module 0", DESCR: "Cisco ASR1001 SPA Interface Processor"PID: ASR1001 , VID: , SN:
NAME: "SPA subslot 0/0", DESCR: "4-port Gigabit Ethernet Shared Port Adapter"PID: ASR1001 , VID: , SN:
NAME: "module R0", DESCR: "Cisco ASR1001 Route Processor"PID: ASR1001 , VID: V04, SN: JAE19450103
NAME: "module F0", DESCR: "Cisco ASR1001 Embedded Services Processor"PID: ASR1001 , VID: , SN:Router#show env
Number of Critical alarms: 0Number of Major alarms: 0Number of Minor alarms: 0
Slot Sensor Current State Reading---- ------ ------------- -------P0 PEM Iout Normal 5 AP0 PEM Vout Normal 12 V DCP0 PEM Vin Normal 124 V ACP0 Temp: Inlet Normal 26 CelsiusP0 Temp: Internal Normal 37 CelsiusP1 PEM Iout Normal 6 AP1 PEM Vout Normal 12 V DCP1 PEM Vin Normal 122 V ACP1 Temp: Inlet Normal 28 CelsiusP1 Temp: Internal Normal 37 CelsiusR0 V1: VMA Normal 3291 mVR0 V1: VMB Normal 1000 mVR0 V1: VMC Normal 2495 mVR0 V1: VMD Normal 2485 mVR0 V1: VME Normal 1201 mVR0 V1: VMF Normal 1796 mVR0 V1: 12v Normal 11953 mVR0 V1: VDD Normal 4995 mVR0 V1: GP1 Normal 1201 mVR0 V1: GP2 Normal 900 mVR0 V2: VMA Normal 1093 mVR0 V2: VMB Normal 996 mVR0 V2: VMC Normal 1499 mVR0 V2: VMD Normal 1196 mVR0 V2: VMF Normal 1049 mVR0 V2: 12v Normal 11909 mVR0 V2: VDD Normal 4995 mVR0 V2: GP1 Normal 2497 mVR0 V2: GP2 Normal 2497 mVR0 Temp: Middle Normal 27 CelsiusR0 Temp: CPU Die Normal 23 CelsiusR0 Temp: Top Left Normal 27 CelsiusR0 Temp: Asic1 Normal 36 CelsiusR0 Temp: Inlet Normal 17 CelsiusR0 Temp: Asic3 Normal 35 CelsiusR0 Temp: Rear Normal 32 CelsiusR0 Temp: Asic2 Normal 31 CelsiusR0 Temp: Mid Frnt Normal 30 CelsiusR0 Temp: MCH Die Normal 39 CelsiusR0 Temp: FC Fan Speed 65% 17 CelsiusRouter#
