The PadSwitcher64 allows Super Nintendo (SNES) control pads to be plugged into a C64's joystick ports.
The adapter connects to both C64 joystick ports and allows the active port to be changed on the fly with a push of a button. The interface defaults to joy port two on power on.
The DB9 connectors are FEMALE and STRAIGHTHROUGH PCB mounted connectors. You can get them cheap from AliExpress. Same for the SNES degree angled connector. The best place to get the ATMEGA88A micro-controller is from Digikey or Mouser. They are, in fact, BETTER priced there and are 100% guaranteed (no fake stuff!) Also, the interface allows up to four custom mappings to be programmed using a C64-side application. The custom mappings allow any combination of joystick port two and port one control lines to be mapped to any of the Super Nintendo controller action buttons (A,B,X,Y,L,R). Any of the action buttons can also optional rapid-fire function applied, of which a normal and 'inverted' state is available. 'Inverted' rapid fire is simply that when active the output state of t effected button will be opposite to of a normal rapid fire button when pushed. For example, mapping a button to joystick left with rapid fire and another to joystick right with inverted rapid fire will simulate a rapid left/right joystick waggle when both buttons are pushed.

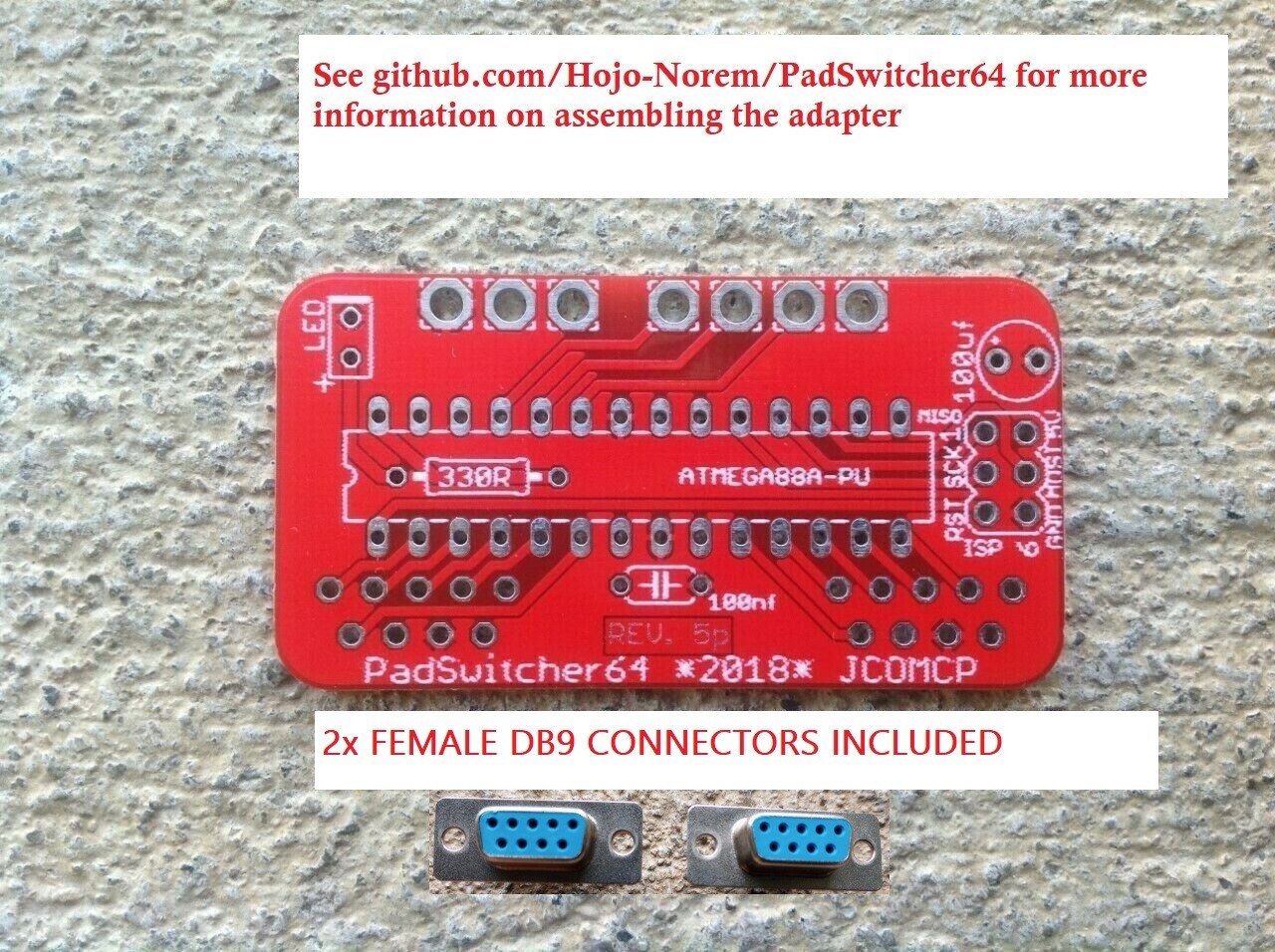

See photos for additional info. Picture #3 shows an example of a completely assembled board.WHAT YOU GET
YOU GET THE PCB BOARD (COLOR VARIES)AND TWO FEMALE DB8 CONNECTORS.
TERMS:

• NO RETURNS/REFUND
• NO TECHNICAL SUPPORT PROVIDED

IMPORTANT:
The board is sold AS IS and ONLY the board.
STANDARD DISCLAIMER:
I AM NOT RESPONSIBLE FOR YOUR PROJECT IN ANYWAY, THAT IS, ANY KIND OF DAMAGES TO YOUR MACHINE(S)/COMPUTER(S), INCLUDING BUT NOT LIMITED OF TO PHYSICAL, MENTAL, EMOTIONAL, PROPERTY-WISE, OR FINANCIALLY. NOR AM I RESPONSIBLE FOR ANY TECHNICAL SUPPORT. THIS IS JUST LIKE A BREAD BOARD THAT YOU USE WIH YOUR RESPONSIBILITY AND IMAGINATION. You MUST read and understand all the computer electrical characteristics on its peripherals, e.g., expansion slots, etc., before using the ampere you can use! Please research that on the internet! You MUST also understand all electrical characteristics of whatever ICs that you use. Read the datasheets! NO returns or refunds. Please note that the descriptions were provided to the best of quality. Not responsible for any typos.
PLEASE ASK QUESTIONS IF YOU'RE IN DOUBT BEFORE offerDING OR BUYING!
