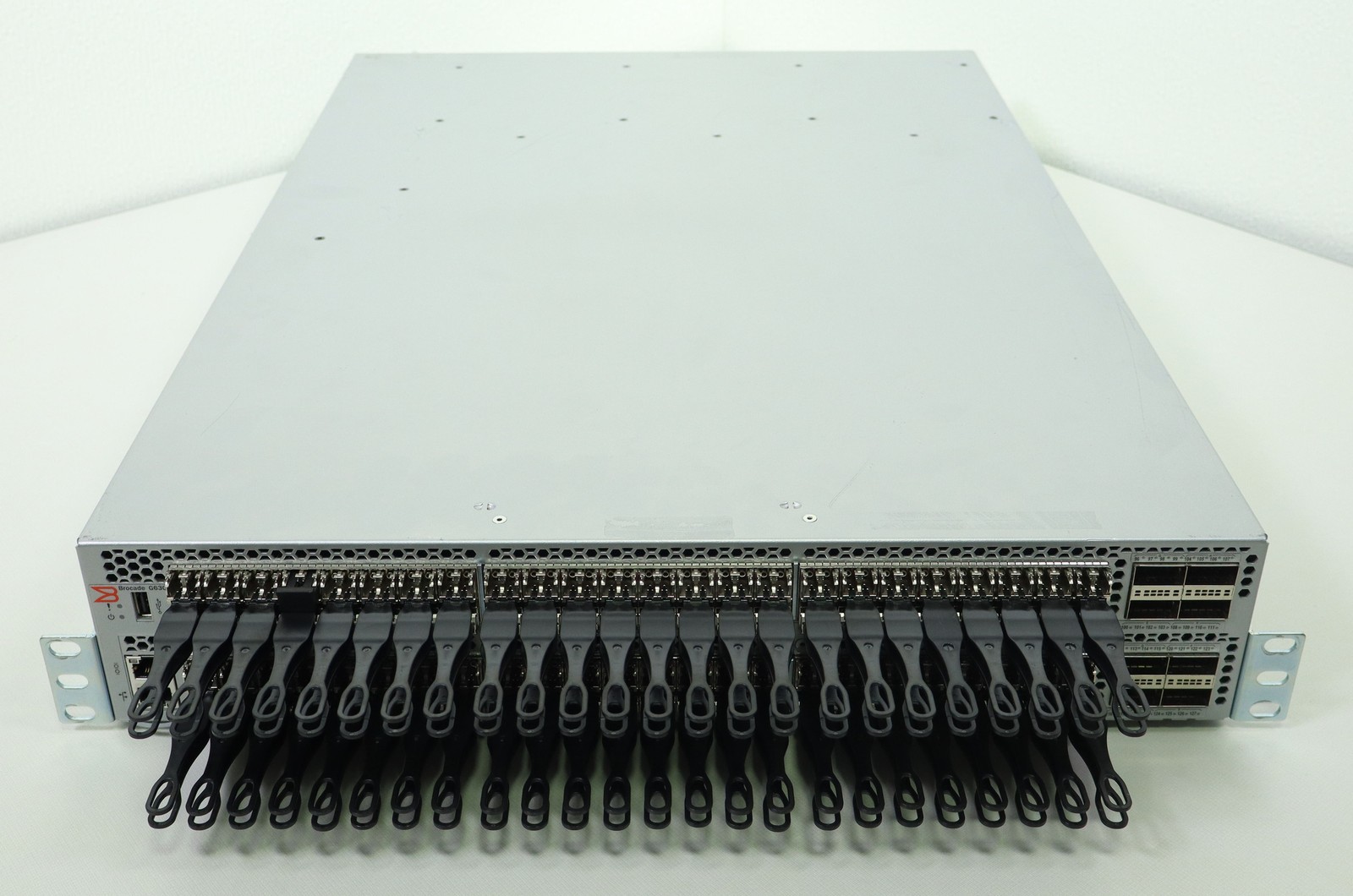

Brocade G630 BR-G630-96-32G-R w/ License Installed 96 Active Ports Transceivers Switch was pulled from a working environment. The passwords was reset (currently set to admin/password1). This has the Enterprise Bundle installed (Extended Fabric, Trunking and Fabric Vision and IO Insight) and additional 48 Ports on Demand. Please see the output below for exact details on the licensing. I did redact the License Keys, but they are there. Also note that the TruFOS Certificate has expired. This has FOS v9.1.1d2 installedThe transceivers are all 32GB Brocade branded, recognized, and in good health. They have quite a few hours on them, I included the stats from one below, the rest are all similar.Comes with only what you see here, you get the transceivers and switch shown, nothing else is included.
BootROM version: 4.0.23
Copyright (C) 2017 Brocade Communication.
CPU0: T1042E, Version: 1.1, (0x85280211)
Core: e5500, Version: 2.1, (0x80241021)
Single Source Clock Configuration
Clock Configuration:
CPU0:1500 MHz, CPU1:1500 MHz, CPU2:1500 MHz, CPU3:1500 MHz,
CCB:600 MHz,
DDR:800 MHz (1600 MT/s data rate) (Asynchronous), IFC:75 MHz
FMAN1: 600 MHz
QMAN: 300 MHz
PME: 300 MHz
L1: D-cache 32 KiB enabled
I-cache 32 KiB enabled
Model: Secure Boot PPC
Model ID: 173
Board: TYR, 36-bit Addressing
reset reason was 0x00000001: Power Up
I2C: ready
SPI: ready
DRAM: Initializing....
Detected UDIMM 566
ctrl_num = 0: DIMM in RST Mode, use initialization
6 GiB left unmapped
DDR: 8 GiB (DDR4, 64-bit, CL=11, ECC on)
testdram value not set, dram test not run
Now running in RAM - U-Boot at: 7ff10000
Flash: 16 MiB
L2: 256 KiB enabled
Corenet Platform Cache: 256 KiB enabled
Using SERDES1 Protocol: 6 (0x6)
MMC: FSL_SDHC: 0
pci_init_board: devdisr=0
PCIE0 connected to Slot 1 as Root Complex (base addr fe240000)
Link Width(x4) gen2, regs @ 0xfe240000
PCIE0: Bus 00 - 0f
In: serial
Out: serial
Err: serial
Net: board eth init!
Fman1: Uploading microcode version 106.4.10
FM1@DTSEC2 connected to _Broadcom BCM5461S
FM1@DTSEC2
Change the Fans speed to HIGH
usb reset 0
resetting USB...
USB0: USB EHCI 1.00
scanning bus 0 for devices... Manufacturer u-boot
Product EHCI Host Controller
SerialNumber
- Vendor: 0x0000 Product 0x0000 Version 1.0
Manufacturer USB
Product USBFlashDrive
SerialNumber [REDACTED]
- Vendor: 0x090c Product 0x1000 Version 17.0
2 USB Device(s) found
scanning usb for storage devices... 1 Storage Device(s) found
setting prt to 1
Secure Boot Mode Enabled, System in Trusted State
Hit ESC to stop autoboot: 0
4554145 bytes read in 635 ms (6.8 MiB/s)
2805 bytes read in 420 ms (5.9 KiB/s)
## Executing script at 00200000
sha1,rsa2048:dev+ sha1+ WARNING: adjusting available memory to 30000000
## Loading kernel from FIT Image at 02000000 ...
Using 'conf@1' configuration
Verifying Hash Integrity ... OK
Trying 'kernel@1' kernel subimage
Verifying Hash Integrity ... sha1,rsa2048:dev+ md5+ sha1+ OK
## Loading fdt from FIT Image at 02000000 ...
Using 'conf@1' configuration
Trying 'fdt@1' fdt subimage
Verifying Hash Integrity ... sha1,rsa2048:dev+ md5+ sha1+ OK
Booting using the fdt blob at 0x245140c
Uncompressing Kernel Image ... OK
Loading Device Tree to 03fe6000, end 03fff140 ... OK
setup_arch: initmem
Silkworm CPLD [board: 173, rev: 2:max 65536:]
Uboot wdt counter value: 0
arch: exit
/pcie@ffe240000: PCICSRBAR @ 0xff000000 paddr_hi 0xefffffff paddr_lo 0xe0000000 hose_offset 0xb20000000
Freescale FM module, FMD API version 21.1.0
Freescale FM Ports module
m41t11: I2C Real-Time-Clock detected on iic0 addr 0x68
sd 2:0:0:0: [sda] No Caching mode page found
sd 2:0:0:0: [sda] Assuming drive cache: write through
init scripts validation failed
INIT: version 2.88 booting
e2fsck 1.42.9 (28-Dec-2013)
/dev/sda1: clean, 9668/59136 files, 119199/236328 blocks
Filesystem check /dev/sda1 done
e2fsck 1.42.9 (28-Dec-2013)
/dev/sda2: clean, 9645/59008 files, 93233/236032 blocks
Filesystem check /dev/sda2 done
Bypassing firmware validation.
09/10/26 20:52:32 vfmod start
09/10/26 20:52:37 vfmod end
---------mounting ramfs-------------------
root=/dev/sda1 rootfstype=ext4 console=ttyS0,9600 rootdelay=5 pcie_ports=native quiet quiet;quiet
mknod: /mnt/dev/null: File exists
INIT: Entering runlevel: 5
Initializing cgroups
Enabling FOS failure detection feature
Starting Fabric OS Services...
[wmd_init] Checksum does not match. current_cksum = 0x16c0388f stored_cksum = 0xcf25a6c1
[wmd_init] FPGA version = 0x0f
[wmd_init] reset_reason = 0x01
[wmd_init] updated reset_reason = 0x00
Found 3(threshold 5) abnormal reboots within 3000 seconds window(threshold)
Pre-existing WM Trace not found.
sys_lock_debug_init:wm pid hash table chunk size 409600......
Existing reboot reason fsize=10 rb=
.
Loading system configuration
bhpc_irq_init: Pcie domain 0 err interrupt handler Installed
ham_post_message:HAM_SCN_GO_ACTIVE
Hasm HAM_SCN_GO_Active - take over
platform_take_control done, on Active role now
Fabric OS (G630_02)
G630_02 login: 2026/09/10-20:52:50 (CDT), [HAM-1004], 220713, CHASSIS, INFO, G630_02, Processor rebooted - PowerCycle.
2026/09/10-20:52:52 (CDT), [FVS-1001], 220714, CHASSIS, INFO, G630_02, Flow Vision Stats daemon initialized.
2026/09/10-20:52:52 (CDT), [FV-1001], 220715, CHASSIS, INFO, G630_02, Flow Vision daemon initialized.
2026/09/10-20:53:00 (CDT), [MAPS-1206], 220716, CHASSIS, INFO, G630_02, A MAPS email notification sent from the switch could not be delivered to Email server.
2026/09/10-20:53:03 (CDT), [SEC-3092], 220717, FID 128, INFO, G630_02, WWN card programming started.
2026/09/10-20:53:03 (CDT), [SEC-3092], 220718, FID 128, INFO, G630_02, WWN card programming success.
2026/09/10-20:53:04 (CDT), [FCR-1069], 220719, FID 128, INFO, G630_02, The FC Routing service is enabled.
2026/09/10-20:53:04 (CDT), [FCR-1068], 220720, FID 128, INFO, G630_02, The FC Routing service is disabled.
2026/09/10-20:53:06 (CDT), [ZONE-1022], 220721, FID 128, INFO, G630_02, The effective configuration has changed to d__efault__Cfg.
hasm_process_scn:HAM_SCN_GO_ACTIVESep 10 20:53:06 All service instances on Active
2026/09/10-20:53:06 (CDT), [FV-1002], 220722, FID 128, INFO, G630_02, Flow Vision Config Replay Completed Successfully.
2026/09/10-20:53:07 (CDT), [MAPS-1145], 220723, FID 128, INFO, G630_02, FPI Profile dflt_fpi_profile is activated for E-Ports.
2026/09/10-20:53:07 (CDT), [MAPS-1144], 220724, FID 128, INFO, G630_02, FPI Profile dflt_fpi_profile is activated for F-Ports.
2026/09/10-20:53:07 (CDT), [MAPS-1201], 220725, FID 128, INFO, G630_02, MAPS has started monitoring with SAN_Edge_conservative_policy policy.
POST1: started running Thu Sep 10 20:53:10 CDT 2026
POST1:Thu Sep 10 20:53:10 CDT 2026: Test #1 - Running Turboramtest
2026/09/10-20:53:13 (CDT), [MAPS-1003], 220726, FID 128, WARNING, G630_02, Chassis, Current Value:[ETH_MGMT_PORT_STATE, DOWN], Dashboard Category=Switch Resource, Quiet Time=None.
2026/09/10-20:53:13 (CDT), [MAPS-1002], 220727, FID 128, ERROR, G630_02, Chassis, Current Value:[TRUFOS_CERT_EXPIRED, TRUE], RuleName=defCHASSISTRUFOS_CERT_EXPIRED, Dashboard Category=N/A, Quiet Time=30 day.
POST1: Script PASSED with exit status of 0 Thu Sep 10 20:53:21 CDT 2026 took (0:0:11)
POST2: started running Thu Sep 10 20:53:22 CDT 2026
POST2:Thu Sep 10 20:53:22 CDT 2026: Test #1 - Running portloopbacktest
POST2: Test #1: portloopbacktest -lb_mode 2 Status: PASSED exit_status 0 Thu Sep 10 20:54:34 CDT 2026 took (0:1:12)
POST2:Thu Sep 10 20:54:34 CDT 2026: Test #2 - Running portloopbacktest -lb_mode 11
POST2: Test #2: portloopbacktest -lb_mode 11 -keyword initAll Status: PASSED exit_status 0 Thu Sep 10 20:56:34 CDT 2026 took (0:2:0)
POST2: Script PASSED with exit status of 0 Thu Sep 10 20:56:34 CDT 2026 took (0:3:12)
2026/09/10-20:56:44 (CDT), [BL-1000], 220728, CHASSIS, INFO, G630_02, Initializing ports...
2026/09/10-20:56:52 (CDT), [BL-1001], 220729, CHASSIS, INFO, G630_02, Port initialization completed.
NetSNMP Agent Version 5.8
Copyright (C) 2010 Free Software Foundation, Inc.
2026/09/10-21:00:00 (CDT), [MAPS-1207], 220730, CHASSIS, INFO, G630_02, There were 1 email delivery errors in the last hour.
2026/09/10-21:03:00 (CDT), [MAPS-1206], 220731, CHASSIS, INFO, G630_02, A MAPS email notification sent from the switch could not be delivered to Email server.
Fabric OS (G630_02)
G630_02 login: admin
Password:
2026/09/10-21:33:38 (CDT), [SEC-1308], 220732, FID 128, INFO, G630_02, All LDAP servers failed to authenticate user account 'admin'.
G630_02:admin> version
Kernel: 4.1.35rt41
Fabric OS: v9.1.1d2
Made on: Wed Jul 10 12:50:09 2024
Flash: Wed Oct 23 13:35:23 2024
BootProm: 4.0.23-sb
G630_02:admin> firmwareshow
Appl Primary/Secondary Versions
FOS v9.1.1d2
v9.1.1d2
G630_02:admin> switchshow
switchName: G630_02
switchType: 173.0
switchState: Online
switchMode: Native
switchRole: Principal
switchDomain: 17
switchId: fffc11
switchWwn: [REDACTED]
zoning: OFF
switchBeacon: OFF
FC Router: OFF
Fabric Name: Fabric A
HIF Mode: OFF
Index Port Address Media Speed State Proto
0 0 110000 id N32 No_Light FC
1 1 110100 id N32 No_Light FC
2 2 110200 id N32 No_Light FC
3 3 110300 id N32 No_Light FC
4 4 110400 id N32 No_Light FC
5 5 110500 id N32 No_Light FC
6 6 110600 id N32 No_Light FC
7 7 110700 id N32 No_Light FC
8 8 110800 id N32 No_Light FC
9 9 110900 id N32 No_Light FC
10 10 110a00 id N32 No_Light FC
11 11 110b00 id N32 No_Light FC
12 12 110c00 id N32 No_Light FC
13 13 110d00 id N32 No_Light FC
14 14 110e00 id N32 No_Light FC
15 15 110f00 id N32 No_Light FC
16 16 111000 id N32 No_Light FC
17 17 111100 id N32 No_Light FC
18 18 111200 id N32 No_Light FC
19 19 111300 id N32 No_Light FC
20 20 111400 id N32 No_Light FC
21 21 111500 id N32 No_Light FC
22 22 111600 id N32 No_Light FC
23 23 111700 id N32 No_Light FC
24 24 111800 id N32 No_Light FC
25 25 111900 id N32 No_Light FC
26 26 111a00 id N32 No_Light FC
27 27 111b00 id N32 No_Light FC
28 28 111c00 id N32 No_Light FC
29 29 111d00 id N32 No_Light FC
30 30 111e00 id N32 No_Light FC
31 31 111f00 id N32 No_Light FC
32 32 112000 id N32 No_Light FC
33 33 112100 id N32 No_Light FC
34 34 112200 id N32 No_Light FC
35 35 112300 id N32 No_Light FC
36 36 112400 id N32 No_Light FC
37 37 112500 id N32 No_Light FC
38 38 112600 id N32 No_Light FC
39 39 112700 id N32 No_Light FC
40 40 112800 id N32 No_Light FC
41 41 112900 id N32 No_Light FC
42 42 112a00 id N32 No_Light FC
43 43 112b00 id N32 No_Light FC
44 44 112c00 id N32 No_Light FC
45 45 112d00 id N32 No_Light FC
46 46 112e00 id N32 No_Light FC
47 47 112f00 id N32 No_Light FC
48 48 113000 id N32 No_Light FC
49 49 113100 id N32 No_Light FC
50 50 113200 id N32 No_Light FC
51 51 113300 id N32 No_Light FC
52 52 113400 id N32 No_Light FC
53 53 113500 id N32 No_Light FC
54 54 113600 id N32 No_Light FC
55 55 113700 id N32 No_Light FC
56 56 113800 id N32 No_Light FC
57 57 113900 id N32 No_Light FC
58 58 113a00 id N32 No_Light FC
59 59 113b00 id N32 No_Light FC
60 60 113c00 id N32 No_Light FC
61 61 113d00 id N32 No_Light FC
62 62 113e00 id N32 No_Light FC
63 63 113f00 id N32 No_Light FC
64 64 114000 id N32 No_Light FC
65 65 114100 id N32 No_Light FC
66 66 114200 id N32 No_Light FC
67 67 114300 id N32 No_Light FC
68 68 114400 id N32 No_Light FC
69 69 114500 id N32 No_Light FC
70 70 114600 id N32 No_Light FC
71 71 114700 id N32 No_Light FC
72 72 114800 id N32 No_Light FC
73 73 114900 id N32 No_Light FC
74 74 114a00 id N32 No_Light FC
75 75 114b00 id N32 No_Light FC
76 76 114c00 id N32 No_Light FC
77 77 114d00 id N32 No_Light FC
78 78 114e00 id N32 No_Light FC
79 79 114f00 id N32 No_Light FC
80 80 115000 id N32 No_Light FC
81 81 115100 id N32 No_Light FC
82 82 115200 id N32 No_Light FC
83 83 115300 id N32 No_Light FC
84 84 115400 id N32 No_Light FC
85 85 115500 id N32 No_Light FC
86 86 115600 id N32 No_Light FC
87 87 115700 id N32 No_Light FC
88 88 115800 id N32 No_Light FC
89 89 115900 id N32 No_Light FC
90 90 115a00 id N32 No_Light FC
91 91 115b00 id N32 No_Light FC
92 92 115c00 id N32 No_Light FC
93 93 115d00 id N32 No_Light FC
94 94 115e00 id N32 No_Light FC
95 95 115f00 id N32 No_Light FC
96 96 116000 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
97 97 116100 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
98 98 116200 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
99 99 116300 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
100 100 116400 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
101 101 116500 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
102 102 116600 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
103 103 116700 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
104 104 116800 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
105 105 116900 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
106 106 116a00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
107 107 116b00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
108 108 116c00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
109 109 116d00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
110 110 116e00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
111 111 116f00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
112 112 117000 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
113 113 117100 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
114 114 117200 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
115 115 117300 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
116 116 117400 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
117 117 117500 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
118 118 117600 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
119 119 117700 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
120 120 117800 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
121 121 117900 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
122 122 117a00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
123 123 117b00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
124 124 117c00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
125 125 117d00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
126 126 117e00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
127 127 117f00 -- N32 No_Module FC (No QFLEX Ports on Demand license) Disabled (Persistent) (None)
G630_02:admin> license --show
License Id : [REDACTED]
License 1 :
/> License serial number : [REDACTED]
License features : Trusted FOS (TruFOS) Certificate
Generation date : 07/12/2022
Expiry date : 06/30/2023
License has expired
License 2 :
/> License key : [REDACTED]
License features : Extended Fabric
Trunking
Fabric Vision and IO Insight
License 3 :
/> License key : [REDACTED]
License features : Ports on Demand
License Capacity : 48
G630_02:admin> license --show -port
96 SFP-based ports are available in this switch
32 QSFP-based ports are available in this switch
Ports on Demand license is installed
No Q-Flex Ports on Demand license is installed
Dynamic POD method is in use
96 SFP-based port assignments are provisioned for use in this switch:
48 SFP-based port assignments are provisioned by the base switch allowance
48 SFP-based port assignments are provisioned by the Ports on Demand license
96 SFP-based ports are assigned to the base switch allowance or installed licenses:
48 ports are assigned to the Ports on Demand base switch allowance
48 SFP-based ports are assigned to the Ports on Demand license
SFP-based ports assigned to the base switch allowance:
0*, 1*, 2*, 3*, 4*, 5*, 6*, 7*, 8*, 9*
10*, 11*, 12*, 13*, 14*, 15*, 16*, 17*, 18*, 19*
20*, 21*, 22*, 23*, 24*, 25*, 26*, 27*, 28*, 29*
30*, 31*, 32*, 33*, 34*, 35*, 36*, 37*, 38*, 39*
40*, 41*, 42*, 43*, 44*, 45*, 46*, 47*
SFP-based ports assigned to the Ports on Demand license:
48*, 49*, 50*, 51*, 52*, 53*, 54*, 55*, 56*, 57*
58*, 59*, 60*, 61*, 62*, 63*, 64*, 65*, 66*, 67*
68*, 69*, 70*, 71*, 72*, 73*, 74*, 75*, 76*, 77*
78*, 79*, 80*, 81*, 82*, 83*, 84*, 85*, 86*, 87*
88*, 89*, 90*, 91*, 92*, 93*, 94*, 95*
SFP-based ports that are not assigned:
None
0 license reservations are still available for use by unassigned ports
96 license assignments are held by offline ports (indicated by *)
0 QSFP-based port assignments are provisioned for use in this switch:
0 QSFP-based port assignments are provisioned by the base switch allowance
0 QSFP-based ports are assigned to the base switch allowance or installed licenses:
0 ports are assigned to the Q-Flex Ports on Demand base switch allowance
QSFP-based ports assigned to the base switch allowance:
None
QSFP-based ports assigned to the Q-Flex Ports on Demand license:
None
QSFP-based ports that are not assigned:
96, 97, 98, 99, 100, 101, 102, 103, 104, 105
106, 107, 108, 109, 110, 111, 112, 113, 114, 115
116, 117, 118, 119, 120, 121, 122, 123, 124, 125
126, 127
0 license reservations are still available for use by unassigned ports
G630_02:admin> chassisshow
Chassis State: Enabled
FAN Unit: 1
Fan Direction: Non-portside Intake
Time Awake: 0 days
FAN Unit: 2
Fan Direction: Non-portside Intake
Time Awake: 0 days
FAN Unit: 3
Fan Direction: Non-portside Intake
Time Awake: 0 days
POWER SUPPLY Unit: 1
Power Source: AC
PS Voltage input: 119.00 V
Fan Direction: Non-portside Intake
Power Usage: -240W
Factory Part Num: 23-1000082-02
Factory Serial Num: [REDACTED]
Manufacture: Day: 15 Month: 1 Year: 2019
Time Awake: 0 days
POWER SUPPLY Unit: 2
Power Source: AC
PS Voltage input: 119.00 V
Fan Direction: Non-portside Intake
Power Usage: -228W
Factory Part Num: 23-1000082-02
Factory Serial Num: [REDACTED]
Manufacture: Day: 15 Month: 1 Year: 2019
Time Awake: 0 days
CHASSIS/WWN Unit: 1
System AirFlow: Non-portside Intake
Header Version: 2
Factory Part Num: 40-1001199-07
Factory Serial Num: [REDACTED]
Manufacture: Day: 29 Month: 4 Year: 19
Update: Day: 4 Month: 3 Year: 2026
Time Alive: 55905 hours
Time Awake: 60040 hours
ID: BRD0000CA
Part Num: SLKWRM0000390
G630_02:admin> sensorshow
sensor 1: (Temperature) is Ok, value is 24 C
sensor 2: (Temperature) is Ok, value is 35 C
sensor 3: (Temperature) is Ok, value is 37 C
sensor 4: (Temperature) is Ok, value is 38 C
sensor 5: (Temperature) is Ok, value is 26 C
sensor 6: (Temperature) is Ok, value is 51 C
sensor 7: (Temperature) is Ok, value is 46 C
sensor 8: (Temperature) is Ok, value is 42 C
sensor 9: (Temperature) is Ok, value is 44 C
sensor 10: (Temperature) is Ok, value is 44 C
sensor 11: (Fan ) is Ok,speed is 6535 RPM
sensor 12: (Fan ) is Ok,speed is 6535 RPM
sensor 13: (Fan ) is Ok,speed is 6535 RPM
sensor 14: (Power Supply) is Ok
sensor 15: (Power Supply) is Ok
G630_02:admin> sfpshow 10 -f
Identifier: 3 SFP
Connector: 7 LC
Transceiver: 6804406000000000 8,16,32_Gbps M5 sw Inter,Short_dist
Encoding: 6 64B66B
Baud Rate: 280 (units 100 megabaud)
Length 9u: 0 (units km)
Length 9u: 0 (units 100 meters)
Length 50u (OM2): 2 (units 10 meters)
Length 50u (OM3): 7 (units 10 meters)
Length 62.5u: 0 (units 10 meters)
Length 50u (OM4): 10 (units 10 meters)
Vendor Name: BROCADE
Vendor OUI: 00:05:1e
Vendor PN: 57-1000333-01
Vendor Rev: A
Wavelength: 850 (units nm)
Options: 083a Loss_of_Sig,Tx_Fault,Tx_Disable
BR Max: 112
BR Min: 0
Serial No: [REDACTED]
Date Code: 190510
DD Type: 0x68
Enh Options: 0xfa
Status/Ctrl: 0x32 Rx_Ratesel_32G,Tx_Ratesel_32G
Pwr On Time: 6.43 years (56403 hours)
E-Wrap Control: 0
O-Wrap Control: 0
Alarm flags[0,1] = 0x0, 0x40
Warn Flags[0,1] = 0x0, 0x40
Temperature: 39 Centigrade
Current: 7.496 mAmps
Voltage: 3285.4 mVolts
RX Power: -inf dBm (0.0 uW)
TX Power: -0.5 dBm (883.8 uW)
State transitions: 1
Last poll time: 09-10-2026 CDT Thu 20:34:18
G630_02:admin> sfpshow
Port 0: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 1: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 2: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 3: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 4: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 5: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 6: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 7: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 8: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 9: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 10: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 11: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 12: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 13: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 14: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 15: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 16: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 17: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 18: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 19: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 20: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 21: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 22: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 23: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 24: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 25: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 26: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 27: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 28: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 29: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 30: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 31: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 32: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 33: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 34: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 35: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 36: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 37: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 38: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 39: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 40: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 41: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 42: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 43: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 44: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 45: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 46: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 47: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 48: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 49: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 50: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 51: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 52: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 53: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 54: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 55: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 56: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 57: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 58: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 59: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 60: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 61: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 62: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 63: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 64: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 65: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 66: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 67: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 68: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 69: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 70: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 71: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 72: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 73: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 74: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 75: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 76: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 77: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 78: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 79: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 80: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 81: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 82: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 83: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 84: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 85: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 86: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 87: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 88: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 89: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 90: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 91: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 92: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 93: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 94: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 95: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps
Port 96: Media not installed
Port 97: Media not installed
Port 98: Media not installed
Port 99: Media not installed
Port 100: Media not installed
Port 101: Media not installed
Port 102: Media not installed
Port 103: Media not installed
Port 104: Media not installed
Port 105: Media not installed
Port 106: Media not installed
Port 107: Media not installed
Port 108: Media not installed
Port 109: Media not installed
Port 110: Media not installed
Port 111: Media not installed
Port 112: Media not installed
Port 113: Media not installed
Port 114: Media not installed
Port 115: Media not installed
Port 116: Media not installed
Port 117: Media not installed
Port 118: Media not installed
Port 119: Media not installed
Port 120: Media not installed
Port 121: Media not installed
Port 122: Media not installed
Port 123: Media not installed
Port 124: Media not installed
Port 125: Media not installed
Port 126: Media not installed
Port 127: Media not installed
G630_02:admin> sfpshow -health
Port 0: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 1: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 2: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 3: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 4: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 5: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 6: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 7: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 8: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 9: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 10: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 11: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 12: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 13: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 14: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 15: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 16: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 17: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 18: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 19: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 20: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 21: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 22: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 23: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 24: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 25: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 26: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 27: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 28: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 29: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 30: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 31: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 32: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 33: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 34: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 35: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 36: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 37: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 38: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 39: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 40: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 41: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 42: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 43: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 44: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 45: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 46: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 47: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 48: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 49: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 50: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 51: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 52: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 53: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 54: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 55: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 56: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 57: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 58: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 59: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 60: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 61: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 62: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 63: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 64: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 65: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 66: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 67: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 68: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 69: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 70: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 71: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 72: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 73: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 74: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 75: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 76: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 77: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 78: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 79: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 80: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 81: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 82: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 83: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 84: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 85: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 86: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 87: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 88: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 89: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 90: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 91: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 92: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 93: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 94: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 95: id (sw) Vendor: BROCADE Serial No: [REDACTED] Speed: 8,16,32_Gbps Health: Green
Port 96: Media not installed
Port 97: Media not installed
Port 98: Media not installed
Port 99: Media not installed
Port 100: Media not installed
Port 101: Media not installed
Port 102: Media not installed
Port 103: Media not installed
Port 104: Media not installed
Port 105: Media not installed
Port 106: Media not installed
Port 107: Media not installed
Port 108: Media not installed
Port 109: Media not installed
Port 110: Media not installed
Port 111: Media not installed
Port 112: Media not installed
Port 113: Media not installed
Port 114: Media not installed
Port 115: Media not installed
Port 116: Media not installed
Port 117: Media not installed
Port 118: Media not installed
Port 119: Media not installed
Port 120: Media not installed
Port 121: Media not installed
Port 122: Media not installed
Port 123: Media not installed
Port 124: Media not installed
Port 125: Media not installed
Port 126: Media not installed
Port 127: Media not installed
G630_02:admin> mapsdb --show
1 Dashboard Information:
=======================
DB start time: Thu Sep 10 20:05:47 2026
Active policy: SAN_Edge_conservative_policy
Configured Notifications: />Fenced Ports : None
Decommissioned Ports : None
Fenced circuits : N/A
Quarantined Ports : None
Top Zoned PIDs <pid(it-flows)>:
2 Switch Health Report:
=======================
Current Switch Policy Status: HEALTHY
3.1 Summary Report:
===================
Category |Today |Last 7 days |
Port Health |No Errors |No Errors |
BE Port Health |No Errors |No Errors |
Fru Health |In operating range |In operating range |
Security Violations |In operating range |No Errors |
Fabric State Changes |In operating range |No Errors |
Switch Resource |Out of operating range |In operating range |
Fabric Performance Impact|In operating range |In operating range |
IO Latency |In operating range |In operating range |
3.2 Rules Affecting Health:
===========================
Category(Violation Count)|RepeatCount|Rule Name |Execution Time |Object |Triggered Value(Units)|
Switch Resource(1) |1 |defCHASSISETH_MGMT_PORT_STA|09/10/26 20:05:55|Chassis |DOWN |
| |TE_DOWN | | | |
G630_02:admin> Returns This item is guaranteed to be as described and covered by the Money Back Guarantee.
We will accept returns for any reason. Please refer to the return policy for more details.
All returns must be packaged safely using the same packaging we used to send the item to you. All original items must be included, and the return must be received in the same condition it was delivered. If the packaging we shipped it in was lost or damaged, please contact us before you return it. Shipping We are located in Iowa and can ship to most of the contiguous U.S. within 4 days or less. Many areas are 2–3 days.
Please verify the address is correct before completing the purchase. All items will be shipped to the address you choose during checkout. We are unable to change the shipping address or cancel the order after it has been placed.
All purchases with a total price of $750 or more will require a signature on delivery.#9176
