Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

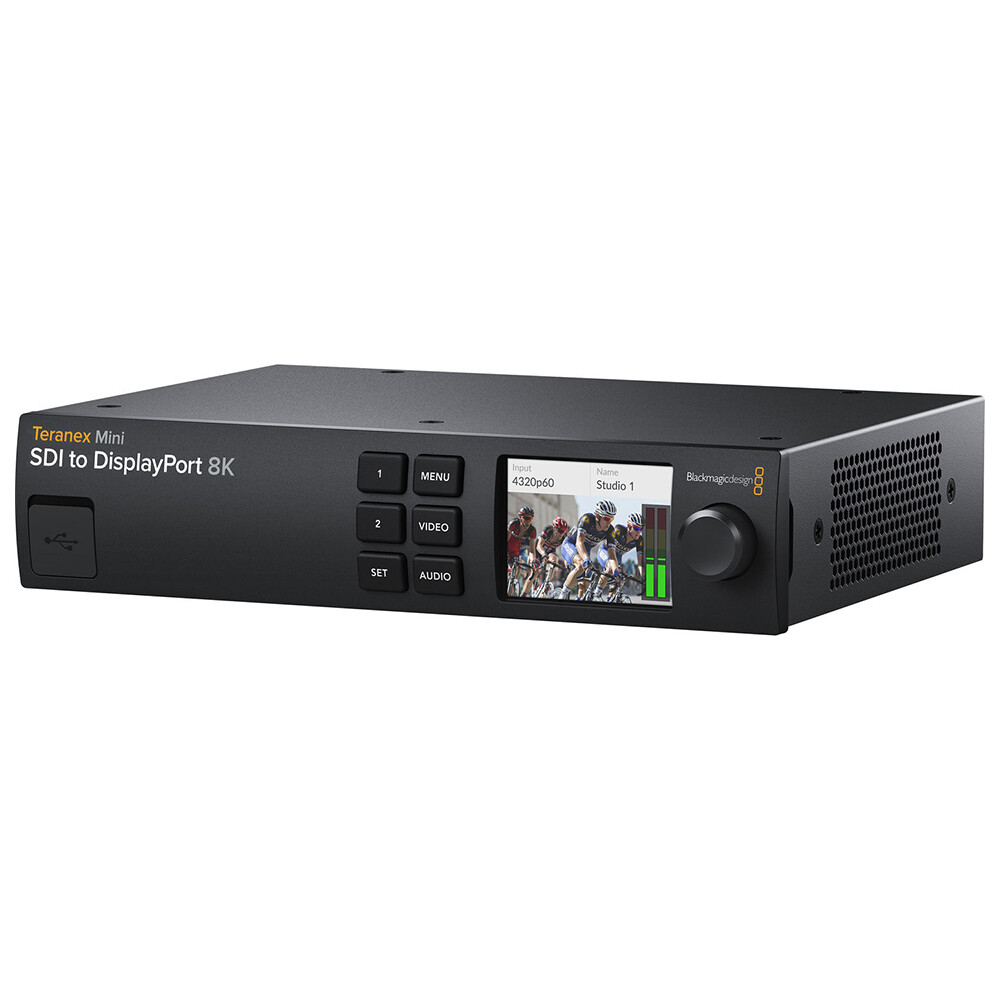

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
Price: US $809.99
Listing Design by OCDesignsOnline
  • Home
  • View all listings
  • About Us
  • response
  • Faq
  • Contact Us
Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR ConverterDescriptionItem IncludesSpecificationsDescriptionThe Teranex Mini SDI to DisplayPort 8K HDR Converter from Blackmagic Design provides an advanced 8K monitoring solution. Its DisplayPort outputs enable you use pro monitors like the Apple Pro Display XDR as part of your on-set or post-production monitor setup. The four 12G-SDI inputs support 4K signals independently or an 8K input signal together, either DCI 8K or 8K video split into four UHD signals. It can use third-party calibration probes such as the SpectraCal C6, X-Rite i1 Display Pro, or the Klein K10-A probe to accurately align connected displays for precise color. The built-in, color LCD screen displays not only the video image, but it can also display two on-screen scopes selected from WFM, Parade, Vector, and Histogram options. The 8K is available on the four SDI outputs, via the single USB-C DisplayPort output, or the two full-size DisplayPort outputs for monitors that support quad HDMI inputs. If you are not connected to an 8K monitoring solution, a built-in down-converter enables you to display the 8K input video on an Ultra HD or HD monitor. This unit will convert between 2SI and square division automatically. The Mini SDI to DisplayPort 8K HDR solution supports a variety of HDR workflows including PQ and HLG, and it supports both Rec. 202 and Rec. 709 as well as 100% of the DCI-P3 format. Two independent 3D LUTs can be loaded at the same time, and you can switch between them from the unit's front panel. In addition to the LCD video screen, the front of the Teranex Mini SDI to DisplayPort 8K HDR Converter features a rotating selection knob and six front-panel buttons for navigating. Use the included rubber feet for desktop mounting or support the converter with the separately available Teranex Mini Rack Shelf.Note:The USB-C port is for DisplayPort over USB-C. Note that this requires a certified DisplayPort over USB-C cable, which is different from a generic USB-C cable or a Thunderbolt cable.Features
  • Includes support for HDR via SDI and DisplayPort
  • 2 built-in scopes live overlaid on monitor
  • Film industry quality 33 point 3D LUTs
  • Advanced Quad Link 12G-SDI inputs for 8K
  • Selectable HD and 4K content pixel-by-pixel mode
Box Contains
    Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
  • 4 x Rubber Foot
  • 1-Year Warranty

Item IncludesBox Contains

    Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
  • 4 x Rubber Foot
  • 1-Year Warranty

SpecificationsTypeConverterVideo Input Connectors4 x BNC (12G-SDI)Input Video FormatSDI (4:4:4/4:2:2 RGB, YUV)
DCI 8K: fps
8K: fps
DCI 4K: fps
UHD 4K: fps
DCI 2K: fps
DCI 2KPsF: 23.98/24/25/29.97/30 fps
1080p: fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fpsAudio Input ConnectorsNoneEmbedded Audio InputSDI: 16-Channel (per Input)Video Output Connectors4 x BNC (12G-SDI) (Loop Output)
2 x DisplayPort (DisplayPort 1.4)
1 x USB Type-C (DisplayPort 1.4)
Output Video FormatSDI (4:4:4/4:2:2 RGB, YUV)
DCI 8K: 25/29.97/30/47.95/48/50/59.94/60 fps
8K: fps
DCI 4K: fps
UHD 4K: fps
UHD 4K: fps
DCI 2K: fps
DCI 2KPsF: 23.98/24/25/29.97/30 fps
1080p: fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fpsAudio Output Connectors2 x RCA AnalogOutput Audio FormatAnalog: 48 kHz / 24-BitEmbedded Audio OutputSDI: 16-Channel (per Output)Video Standard ComplianceSMPTE I/O1 x RJ45 Control1 x USB Type-CDisplay Size2.2"OS CompatibilityWindows 10macOS 10.14macOS 10.1 or LaterOperating Temperature32 to 104°F / 0 to 40°CStorage Temperature-4 to 140°F / -20 to 60°COperating Humidity0 to 90%Payment Policy
