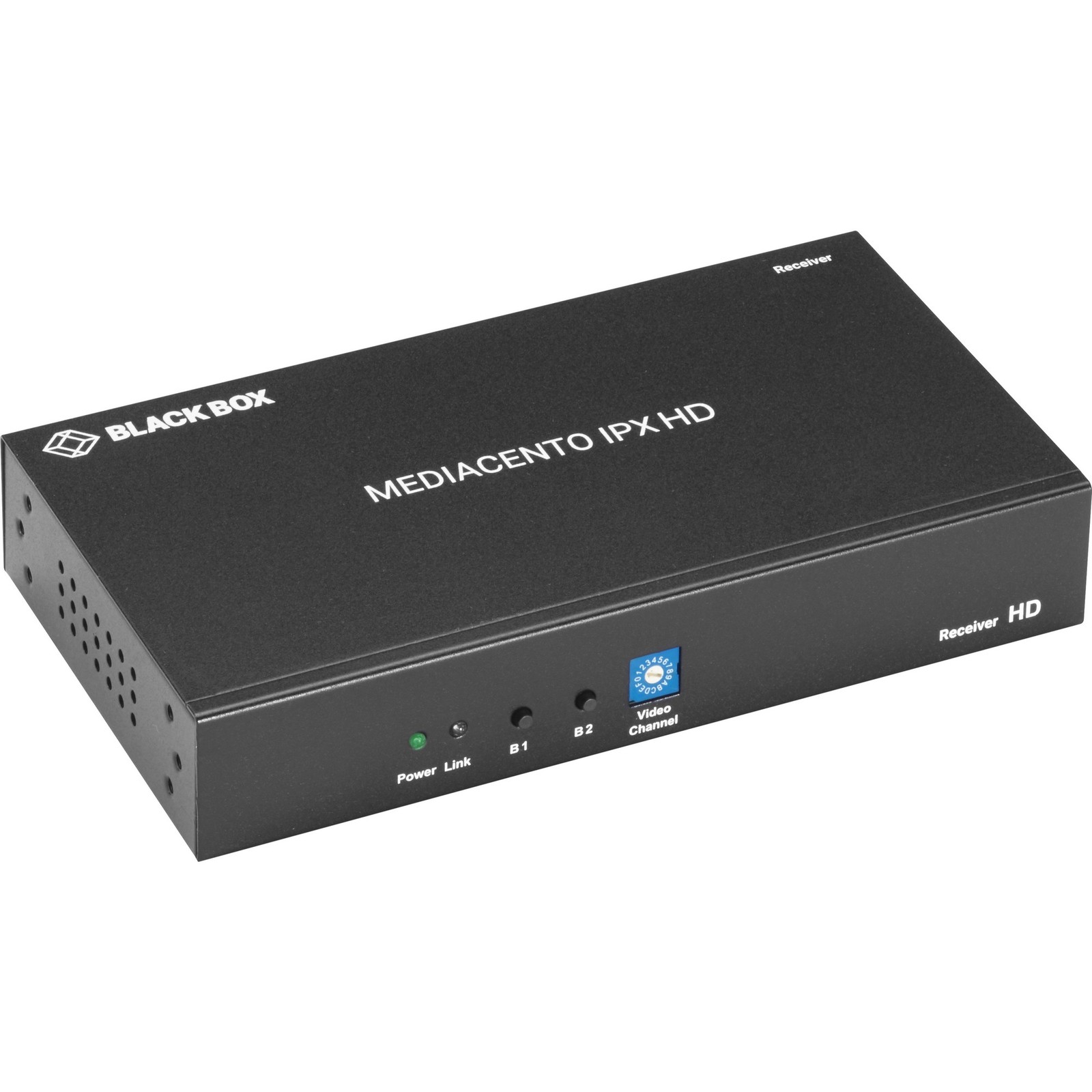

Black Box MediaCento IPX HD Extender Receiver - HDMI-Over-IP (VXHDMIHDIPRX) Black Box MediaCento IPX HD Extender Receiver - HDMI-Over-IP (VXHDMIHDIPRX)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: MediaCento IPX HD Extender Receiver - HDMI-Over-IP 1 x 5-VDC, 3-A Power Supply 1 x Quick Start Guide
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS) 2
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
MediaCento IPX HD is great for:
- Touchscreen applications using the iCOMPEL Digital Signage system.
- Basic HDMI video and audio extension direct point to point, or point to multipoint over a gigabit Ethernet network.
- Streaming video to classrooms in schools.
- Corporate video sharing and training.
- Sharing video in command and control room setups.
HDMI HD video over IP
This IP-based video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to unicast HDMI HD video signals on your Gigabit Ethernet network. In a multicast configuration, one transmitter can drive multiple receivers with no extra network load.
HD means better video
The MediaCento IPX HD supports High Defenition video for great pictures up to 1080p.
Plug-and-play setup
Whether you choose to utilize existing LAN infrastructure, or setup a dedicated video network, setup is easy. For a unicast setup, simply connect your source, your display, a network switch, and you're ready go!
PoE support for remote powering
The MediaCento IPX HD is PoE powered eliminating the need for additional power supplies. Using a PoE network switch completely eliminates the need for external power supplies making installation easier.
Create 8x8 video walls
For video streaming and multicasting video over a network to a video wall, see our LPB2900 Series Gigabit PoE+ Managed Switches (LPB2910A, LPB2926A, LPB2952A).
Signals that go for miles
The MediaCento IPX HD Unicast system transmits up to 328 feet (100 m) point to point, but goes even further with a network switch added to the mix.
Optimal PC-to-screen performance
MediaCento features EDID copy function and is HDCP 2.2-compliant.
Digital signage and video wall applications:
- Hospitality
- Bars/restaurants
- Retail
- Venues/events
- Corporate multi-room solutions
Package Contents:
- MediaCento IPX HD Extender Receiver - HDMI-Over-IP
- 1 x 5-VDC, 3-A Power Supply
- 1 x Quick Start Guide
SpecificationPhysical CharacteristicsReceiver Width7.09"Receiver Height1.26"Receiver Depth3.86"Receiver Weight (Approximate)1.04 lbWarrantyLimited Warranty3 YearInterfaces/PortsNetwork (RJ-45)YesHDMI OutYesNumber of HDMI Outputs1Number of Network (RJ-45) Ports1VideoMaximum Video Resolution1920 x 1080Graphics ModesFull HDGeneral InformationBrand NameBlack BoxMarketing Information Scalable HD Video Distribution Over Your Existing IP Network The MediaCento IPX HD is a robust and flexible solution for distributing High Definition (1080p) HDMI video and audio over your existing, standards-based Gigabit Ethernet network using TCP/IP protocols. Its primary benefit is enabling scalable video extension in applications like digital signage, corporate training, classroom streaming, and control room video sharing. It supports both basic point-to-point and large-scale point-to-multipoint configurations, utilizing a multicast setup where one transmitter can drive many receivers without placing extra burden on the network. Simplified Setup Setup is significantly simplified by its plug-and-play nature and its PoE power support, which eliminates the need for separate external power supplies. The system ensures excellent picture quality with 1080p HD resolution, an EDID copy function for optimal PC-to-screen performance, and is HDCP 2.2 compliant. It also allows for the creation of video walls up to 8x8 displays and extends signals far beyond the standard 328 feet (100 m) point-to-point distance when network switches are introduced. Product TypeVideo Extender ReceiverProduct NameMediaCento IPX HD Extender Receiver - HDMI-over-IPManufacturerBlack Box CorporationManufacturer Part NumberVX-HDMI-HDIP-RXProduct LineMediaCentoMedia & PerformanceMedia Type SupportedTwisted PairTitleProduct TitleBlack Box MediaCento IPX HD Extender Receiver - HDMI-over-IP (VXHDMIHDIPRX)Technical InformationMaximum Operating Distance328.08 ftConnectivity TechnologyWiredNumber of Output Devices Supported1 Shipping
