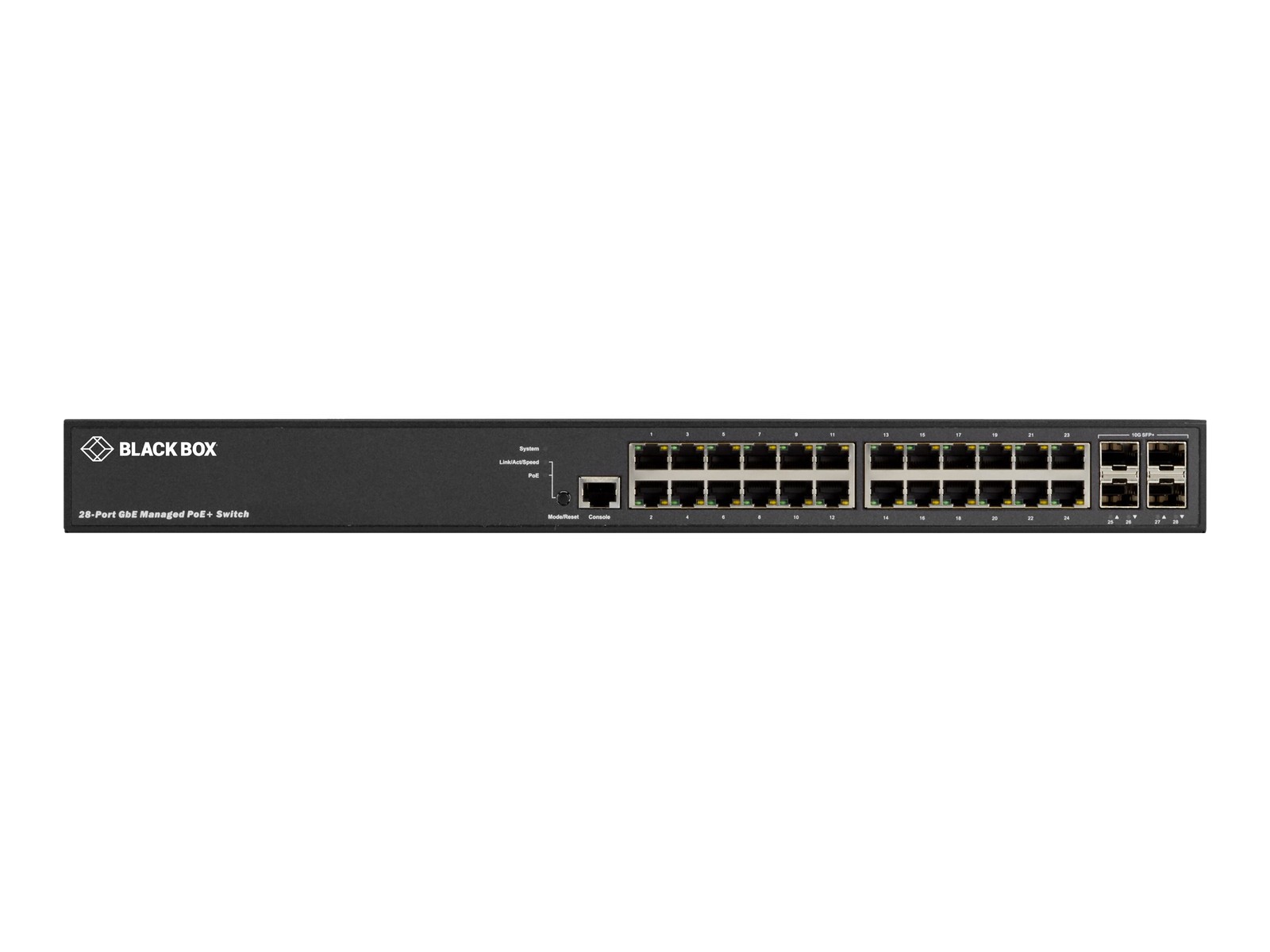

Black Box LPB3000 Ethernet Switch (LPB3028A) Black Box LPB3000 Ethernet Switch (LPB3028A)Package Contents: LPB3000 Ethernet Switch 1 x AC Power Cord 4 x Adhesive Rubber Feet 1 x Mounting Kit 1 x RJ-45 to DB9 Serial Console Cable
TAA Compliant: Yes
Additional Information: Forward Capacity:95.238 MPPS Switching Capacity:128 MPPS Layer 2 Switching:STP, RSTP, MSTP, VLANs, Voice VLAN, Generic VLAN IGMP v1/2/3, IGMP querier, IGMP proxy, Link Aggregation Control Protocol, DHCP Relay
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
The Gigabit Ethernet Managed Switches add high-speed ports while offering the management and security features your enterprise network needs. Provides 10/100/1000BASE-T UTP ports and 1G/10G SFP+ ports.
Fully Manageable
The switch is fully managed, supporting SNMP versions 1, 2c, and 3. The embedded RMON software agents support RMON groups 1 (history), 2 (statistics), 3 (alarms), and 9 (events).
The integral webserver enables web-based management via a web browser. This GUI interface enables switch configuration, system dashboard, maintenance, and monitoring.
The wide range of management and support features also includes dual image, port mirroring, LLDP, sFlow®, UPnP®, IPv6, SSH, RADIUS, DHCP Client/DHCPv6 Client, SNTP, cable diagnostics, ping, Syslog, and Telnet client with SSH security.
Support for VLAN and QoS
Support for up to four simultaneous VLANs enables you to segment traffic with port-based, 802.1Q tag-based, or MAC-based VLANs. VoIP traffic is automatically assigned to a voice-specific VLAN to maintain quality. 802.1p Layer 2 quality of service (QoS) enables prioritization of time-sensitive applications such as VoIP and video.
Secure
You get enterprise-class security features, too. 802.1X port-based network access control authenticates devices connecting to your network. The switch also supports SNMPv3 cryptographic security, SSH, and SSL. Plus, you can set up a guest VLAN that enables visitors to access the Internet without also giving them access to the corporate network.
10-GE Uplinks
This switch features 10-GE uplinks that increase backplane capacity.
Super-Fast Switch Control Processor
The Gigabit Ethernet Managed Switch has a powerful switch control processor that improves IGMP performance.
Green
The PoE+ Gigabit Managed Switch Eco features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%.
Cable length detection adjusts signal strength to the cable length, reducing power consumption on shorter cable runs.
This product is covered by one or more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
Package Contents:
- LPB3000 Ethernet Switch
- 1 x AC Power Cord
- 4 x Adhesive Rubber Feet
- 1 x Mounting Kit
- 1 x RJ-45 to DB9 Serial Console Cable
SpecificationManagement & ProtocolsManageableYesPower DescriptionPower SourcePower SupplyPoE Budget370 WPoE (RJ-45) PortYesPhysical CharacteristicsForm FactorDesktopWeight (Approximate)8.36 Warranty1 YearInterfaces/PortsNetwork (RJ-45)YesUplink PortYesPort/Expansion Slot Details
- 24 x Gigabit Ethernet PoE+
- 4 x 10 Gigabit Ethernet SFP+ Expansion Slot
Total Number of Network Ports24ModularYesI/O ExpansionsTotal Number of Expansion Slots4.0Expansion Slot TypeSFP+Number of SFP+ Slots4General InformationBrand NameBlack BoxMarketing Information The Gigabit Ethernet Managed Switches add high-speed ports while offering the management and security features your enterprise network needs. Provides 10/100/1000BASE-T UTP ports and 1G/10G SFP+ ports. Fully Manageable The switch is fully managed, supporting SNMP versions 1, 2c, and 3. The embedded RMON software agents support RMON groups 1 (history), 2 (statistics), 3 (alarms), and 9 (events). The integral webserver enables web-based management via a web browser. This GUI interface enables switch configuration, system dashboard, maintenance, and monitoring. The wide range of management and support features also includes dual image, port mirroring, LLDP, sFlow®, UPnP®, IPv6, SSH, RADIUS, DHCP Client/DHCPv6 Client, SNTP, cable diagnostics, ping, Syslog, and Telnet client with SSH security. Support for VLAN and QoS Support for up to four simultaneous VLANs enables you to segment traffic with port-based, 802.1Q tag-based, or MAC-based VLANs. VoIP traffic is automatically assigned to a voice-specific VLAN to maintain quality. 802.1p Layer 2 quality of service (QoS) enables prioritization of time-sensitive applications such as VoIP and video. Secure You get enterprise-class security features, too. 802.1X port-based network access control authenticates devices connecting to your network. The switch also supports SNMPv3 cryptographic security, SSH, and SSL. Plus, you can set up a guest VLAN that enables visitors to access the Internet without also giving them access to the corporate network. 10-GE Uplinks This switch features 10-GE uplinks that increase backplane capacity. Super-Fast Switch Control Processor The Gigabit Ethernet Managed Switch has a powerful switch control processor that improves IGMP performance. Green The PoE+ Gigabit Managed Switch Eco features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%. Cable length detection adjusts signal strength to the cable length, reducing power consumption on shorter cable runs. This product is covered by one or more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838. Product TypeEthernet SwitchProduct NameLPB3000 Ethernet SwitchManufacturerBlack Box CorporationManufacturer Part NumberLPB3028AProduct SeriesLPB3000Packaged Quantity1Media & PerformanceEthernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
Media Type Supported
- Optical Fiber
- Twisted Pair
Network Technology
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.1x
- IEEE 802.3az
