Biostar TA75M+ AMD A75 USB 3.0 SATA 6Gb/s Socket FM1 Micro ATX Motherboard For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

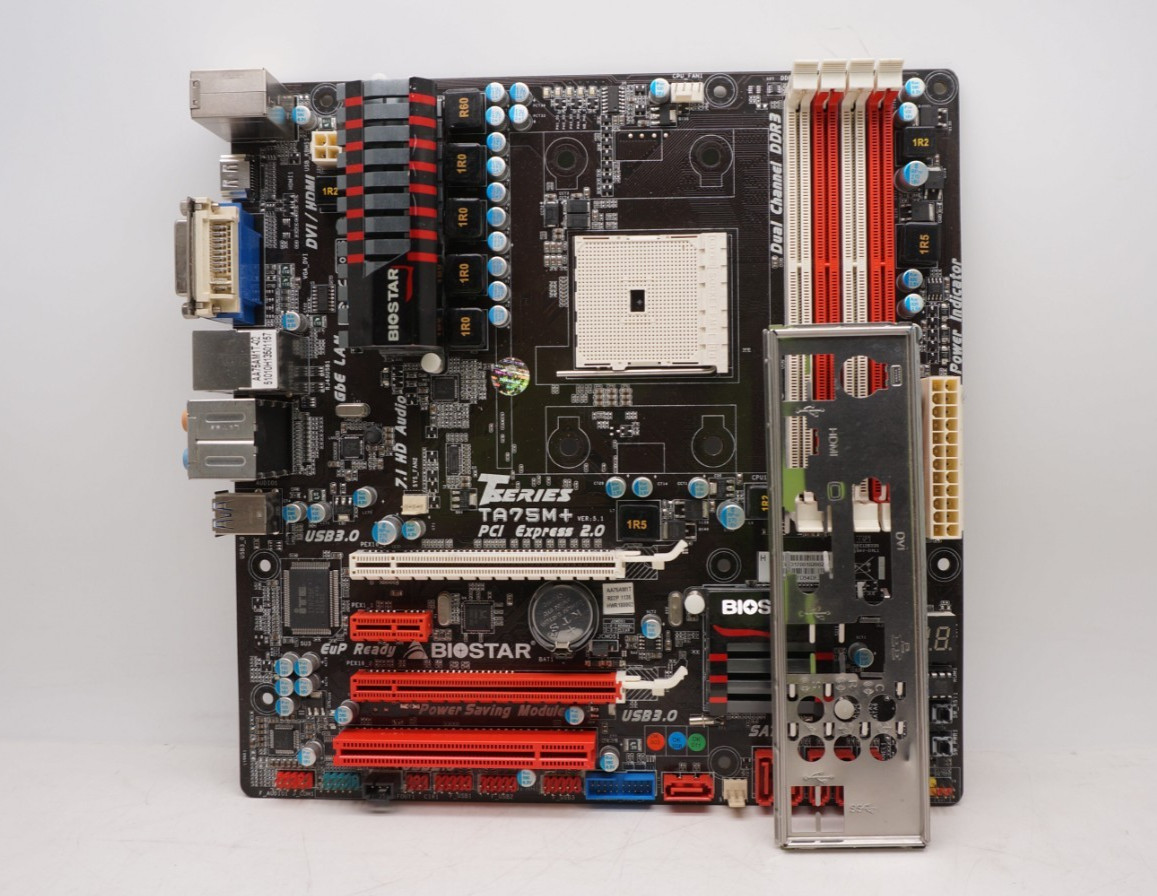

Biostar TA75M+ AMD A75 USB 3.0 SATA 6Gb/s Socket FM1 Micro ATX Motherboard
Price: US $45.00
Biostar TA75M+ AMD A75 USB 3.0 SATA 6Gb/s
Socket FM1 Micro ATX Motherboard
100% workingcondition.
Motherboard were removed from working desktop
and has been fullytested in Diagnostic software
Chipset
AMD A75
CPU SUPPORT
AMD A8 Processor
AMD A6 Processor
AMD A4 Processor
AMD E2 Processor
Maximum CPU TDP (Thermal Design Power) : 100Watt
MEMORY
Support Dual Channel DDR3 2000(OC)/1866/1600/1333/1066/800 MHz
4 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory
INTEGRATED VIDEO
By CPU model
Maximum resolution: VGA:1920x1600, DVI-D:1920x1200, HDMI®:1920x1200
STORAGE
6 x SATA III Connector
Support SATA RAID: 0,1,10
LAN
Realtek RTL8111E - 10/100/1000 Controller
AUDIO CODEC
Realtek ALC892 8-Channel Blu-ray Audio
USB
2 x USB 3.0 Port
1 x USB 3.0 Header
4 x USB 2.0 Port
3 x USB 2.0 Header
EXPANSION SLOT
2 x PCI-E 2.0 x16 Slot(x16 + x4)
1 x PCI-E 2.0 x1 Slot
1 x PCI Slot
REAR I/O
1 x PS/2 Keyboard
2 x USB 3.0 Port
4 x USB 2.0 Port
1 x HDMI® Connector
1 x DVI Connector
1 x VGA Port
1 x LAN Port
6 x Audio Jacks
INTERNAL I/O
1 x USB 3.0 Header
3 x USB 2.0 Header
6 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Connector
2 x System Fan Connector
1 x CIR Header
1 x COM Port Header
DIMENSION
Micro ATX Form Factor Dimension: 24.4cm x 22.5cm ( W x L )
Please makesure you buy the right CPU,
MEMORY to ensure 100% compatibility your otherhardware.
