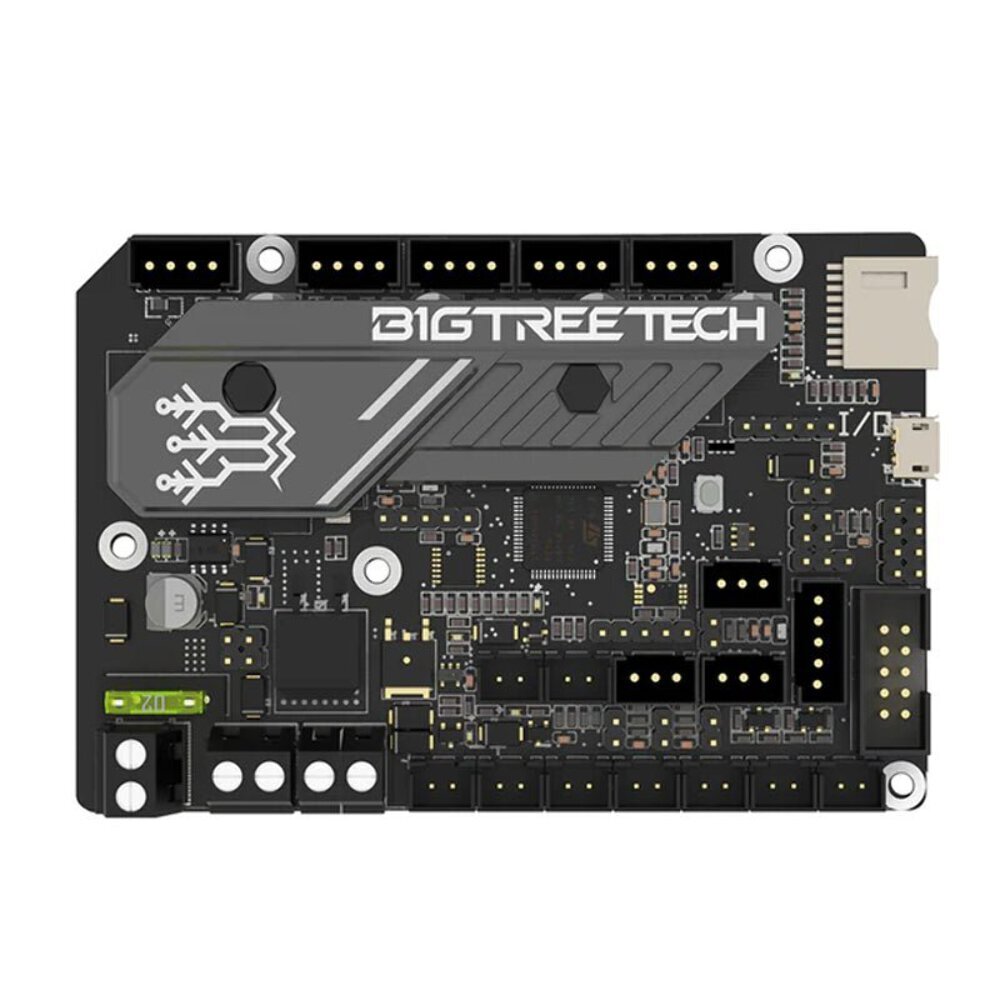

BigTreeTech SKR e3 Mini v3The BIGTREETECH SKR Mini E3 V3.0 is a 32-bit control board designed as an upgrade for Creality's Ender 3 series 3D printers. It offers enhanced performance, quieter operation, and expanded functionality, making it a popular choice among 3D printing enthusiasts. Specifications: Microcontroller Unit (MCU): ARM Cortex-M0+ STM32G0B1RET6 Power Input: DC 12V/24V Logic Voltage: 3.3V Motor Drivers: Integrated TMC2209 stepper drivers in UART mode Supported Displays: 2.4-inch TFT, 3.5-inch TFT, and the original Ender 3 LCD12864 screen Temperature Sensor Interfaces: Two 100K NTC thermistor inputs Dimensions: 103.75mm x 70.25mm Key Features: Silent Operation: Integrated TMC2209 stepper drivers ensure ultra-quiet motor performance. Enhanced Cooling: Upgraded heat sink design improves heat dissipation, enhancing reliability. Multiple Fan Outputs: Three controllable fan interfaces allow for better thermal management. Flexible Firmware Support: Compatible with Marlin and Klipper firmware, offering customization options. Easy Installation: Designed as a drop-in replacement for Ender 3 series printers, simplifying the upgrade process. For detailed information and resources, including firmware and user manuals, visit the official BIGTREETECH GitHub repository. GitHub BigTreeTech SKR e3 Mini v3

The BIGTREETECH SKR Mini E3 V3.0 is a 32-bit control board designed as an upgrade for Creality's Ender 3 series 3D printers. It offers enhanced performance, quieter operation, and expanded functionality, making it a popular choice among 3D printing Unit (MCU): ARM Cortex-M0+ STM32G0B1RET6

Power Input: DC 12V/24V

Logic Voltage: 3.3V

Motor Drivers: Integrated TMC2209 stepper drivers in UART mode

Supported Displays: 2.4-inch TFT, 3.5-inch TFT, and the original Ender 3 LCD12864 screen

Temperature Sensor Interfaces: Two 100K NTC thermistor inputs

Dimensions: 103.75mm x 70.25mm

Key Features:

• Silent Operation: Integrated TMC2209 stepper drivers ensure ultra-quiet motor performance.
• Enhanced Cooling: Upgraded heat sink design improves heat dissipation, enhancing reliability.
• Multiple Fan Outputs: Three controllable fan interfaces allow for better thermal management.
• Flexible Firmware Support: Compatible with Marlin and Klipper firmware, offering customization options.
• Easy Installation: Designed as a drop-in replacement for Ender 3 series printers, simplifying the upgrade process.

For detailed information and resources, including firmware and user manuals, visit the official BIGTREETECH GitHub repository.
