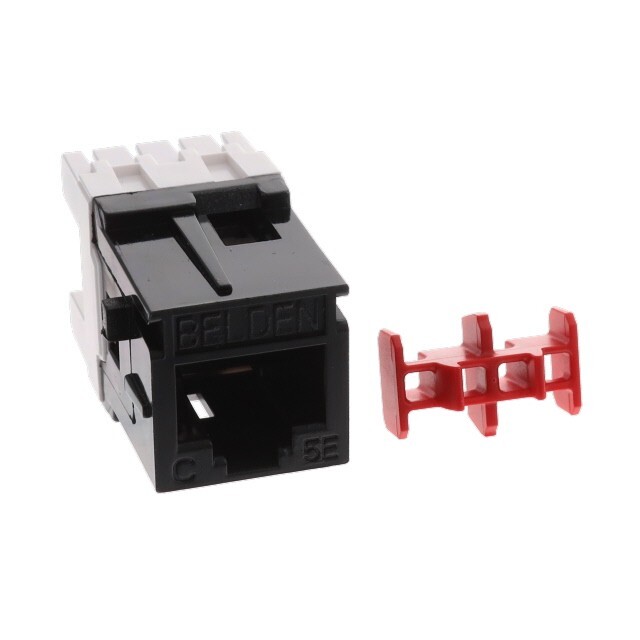

The Cat5e Modular Jack is a punch down UTP connector that ensures excellent long-term reliability as well as extremely stable transmission performance. They are designed to be used within the Belden IBDN 4800, 3600 and 2400 Systems.
The Beyond Cat5e performance exceeds all parameters specified in the Cat5e standard. All performance characteristics have been set to guarantee transmission performance up to 300 MHz and a data-rate of up to 4.8 Gb/s.
The MDVO-Style is designed to be used with Flex Patch Panels as well as Interface and MediaFlex Workstation Outlets. The modular jacks can also be mixed and matched with a wide variety of adapters and boxes to suit practically any installation configuration for workstation outlet, consolidation point and telecommunications closet MDVO
Tool Compatibility: Belden 110 Connecting Tool, MediaFlex Termination StationPlug /Jack Compatibility: RJ45, RJ11Termination Front Connection: Mated ConnectionTermination Front Connection Durability: 1,000 cyclesTermination Rear Connection: Gas Tight IDC ConnectionTermination Rear Connection Durability: 20 terminationsConnector/Hardware Retention: 20 lbsPlug/Connector Retention: 11.250 lbsColor: BlackPack of 10Manufacturer:Belden Wire & Cable
Product Category:Modular Connectors / Ethernet (Female)
USOC of Positions / Contacts per Category:Cat 5e
Mounting Style:MDVO
Mounting Angle:Straight
Termination Style:IDC
Current Rating:1.5 A
Voltage Rating:-
Minimum Operating Temperature:- 10 C
Maximum Operating Temperature:+ 60 C
Color:Black
Application:1000 Base-TBrand:Belden Wire & CableContact Material:Copper AlloyContact Plating:GoldFlammability Rating:UL 94 V-0LED L / R Color:-Number of Ports:1 PortNumber of Positions:8 PositionProduct Type:Modular Connectors / Ethernet Connectors / Ethernet ConnectorsTab Direction:User Selectable
