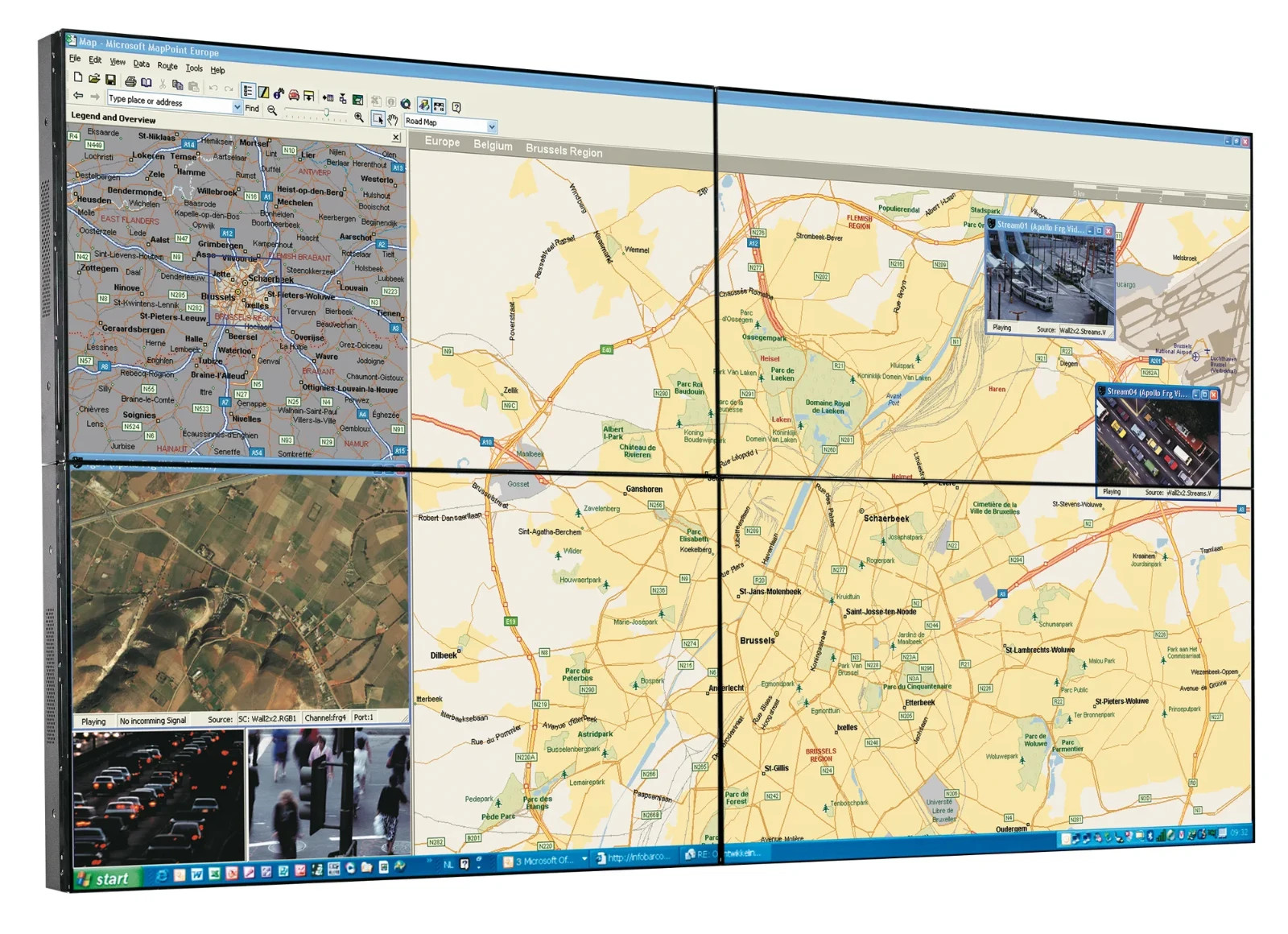

Free listing template designed by dewiso.comBarco OverView NSL-5521 55” Full HD LED-lit LCD Display for LCD Video Wall PanelFeatures and further details

Barco’s NSL-5521 is a professional-grade 55” Full HD LED-lit LCD designed for high-performance video walls. Featuring ultra-narrow bezels, brilliant image quality, and 24/7 reliability, it’s ideal for control rooms, command centers, broadcast studios, and security operations.

🔹 Key Features:

• 55” Full HD resolution (1920 x 1080) – vivid, high-definition visuals

• Ultra-narrow bezels – 1.9mm (R/B), 3.8mm (L/T) for nearly seamless video wall integration

• Direct LED backlighting – ensures brightness (700 cd/m²) and longevity (up to 60,000 hours)

• High contrast ratio – 3500:1 for crisp, clear images in all lighting conditions

• Wide 178° viewing angles – optimal visibility from any position

• 10-bit color processing – 1.07 billion colors for stunning visual depth and color accuracy

• AIR (Anti Image Retention) circuitry – prevents screen burn-in during continuous usage

• Low noise fans – efficient cooling without disruption

• Eco-friendly design – mercury-free, low heat output, and energy-efficient (130W typical)

• Versatile connectivity – VGA, HDMI, DVI-D, DisplayPort, CVBS, S-Video, and Component

• Built-in wall control software – remote setup, source selection, image tuning via RS-232

• Compact and lightweight – only 3.87” depth and 35 kg net weight

📊 Product Specifications – NSL-5521

General:

• LCD Panel: S-PVA, normally black with DID technology and AIR circuitry

• Resolution: Full HD (1920 x 1080)

• Aspect Ratio: 16:9

• Pixel Density: 40 dpi

• Refresh Rate: 60 Hz

• Luminance: 700 cd/m² (typical)

• Contrast Ratio: 3500:1 (typical)

• Viewing Angle: 178° horizontal / 178° vertical

• White Point: 10,000 K

• Color Depth: 10-bit – 1.07 billion colors

• Internal Processing: 10-bit for precise color calibration

Durability:

• Backlight Type: Direct LED

• Backlight Lifetime: 60,000 hours (typical)

• MTBF: >100,000 hours (to half brightness)

Dimensions:

• Diagonal: 55" (1396 mm)

• Active Area: 1210 x 680 mm (47.63” x 26.79”)

• Unit Size: 1215.3 x 686.1 x 98.2 mm (47.85” x 27.01” x 3.87”)

• Bezel Width: 1.9 mm (R/B), 3.8 mm (L/T)

• Net Weight: 35 kg (77.3 lbs) | Gross Weight: 48.5 kg (107.1 lbs)

Power:

• Input Voltage: 100–240 VAC, 50–60 Hz

• Power Consumption: 130W (typ.), 300W (max), 20W (sleep), 2.5W (standby)

• Heat Dissipation: Max 1023 BTU/h

Connectivity:

• Video Inputs/Outputs:

  • VGA (DSUB-15P)

  • DVI-D (single-link, HDCP)

  • DisplayPort (in, out via DVI)

  • HDMI Type A (HDCP, out via DVI)

  • CVBS (BNC in/out)

  • S-Video (Mini-DIN in/out)

  • Component Video (3xBNC in/out)

• Control:

  • RS-232 (DSUB9 in/out)

  • Barco Wall Control Manager (via RS232 chain)

Environmental:

• Operating Temperature: 0–40°C

• Operating Humidity: 20–80% non-condensing

• Storage Temperature: -20–60°C

• Storage Humidity: 10–90% non-condensing

Certifications:

• EMI/EMC: EMC / IEC / FCC / CE / KCC

• Safety: UL / c_UL / CB / TÜV / new, never used. Box was opened for inspection. Comes in the original packaging.

  • Package Includes:
  (1-Panel) Barco OverView NSL-5521 55” Full HD LED-lit LCD Display for Video Wall Panel
