These radios are fully tested and factory defaulted.Includes PoE.

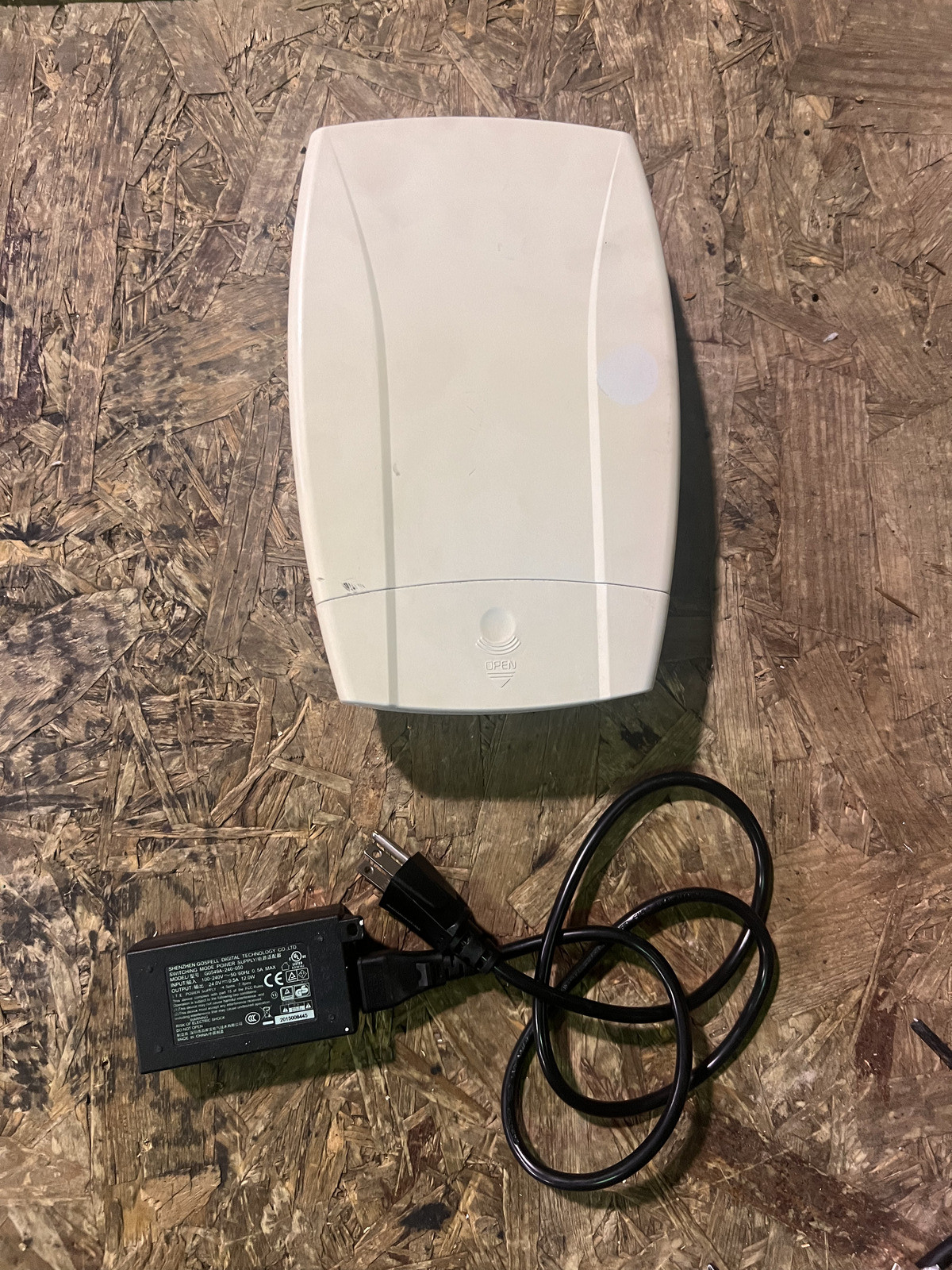

BaiCell Antenna

Manufacturer Part Number: EG7035L-M11

The UE operates with LTE-TDD to enable high-speed, wireless communications. Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the UE simultaneously.

Product Features

• Supports TDD and FDD LTE network modes
TDD bands 42,43,48
FDD band 7
• Complies with 3GPP Release 9 CAT4 standards
• 100 Mbps Ethernet interface
• Convenient, simple, GUI-based local and remote Web management
• Built-in bipolar directional high-gain LTE antenna
• TR069 network management protocol
• Cell lock, SIM lock, and Pin lock
• User-friendly LED indicators
• Power supply with PoE
• Pole mount or wall mount
• Wi-Fi assisted alignment

Basic Specifications

• LTE Standard: 3GPP Release 9, CAT4
• Ethernet LAN Port: One RJ-45 port 10/100 auto-sensing, auto-MDX, PoE
• LED Indicators: MIU/LTE/SIM/LAN/PWR/LTE Signal
• USIM: 1.8V/3V 2FF
• Restore Button: Tactile button. Press the button for at least 10 seconds to restore the UE to its factory settings
• Power Supply:
Input: Universal range 100V~240V AC
Output: PoE (24 VDC, 0.5A)
• Dimensions: About 9.5 in (H) x 6 in (W) x 2 in (D), About 241mm * 154mm * 50mm
• Weight: About 2 lbs (900 g)

RF Specifications

• LTE Mode: TDD/FDD
• Channel Bandwidth: 5 MHz / 10 MHz / 15 MHz / 20 MHz
• MAX Output Power: 23 ± 2dBm
• TXRX: 1T2R
• Frequency Band: 42/43/48
• Peak Rate:
FDD DL: 100 Mbps, UL 50 Mbps
TDD DL: 100 Mbps, UL 10 Mbps (2:7)
• Antenna Gain:
14 dBi @ 3.x GHz, 2 ports
11 dBi @ 2.x GHz, 2 ports
• Modulation:
UL: QPSK, 16QAM
DL: QPSK, 16QAM, 64QAM
• Receive Sensitivity: -94 dBm @ QPSK, 20 MHz, 25̊C
• Antenna Type: Internal directional
• Polarization: ±45°
• Antenna Efficiency: > 70%
• Isolation: ≤ -25dB
• VSWR: ≤ 2
• Horizontal Beamwidth (3 dB): 63 ±3°@ 2.x GHz, 2 ports, 60 ±3°@ 3.x GHz, 2 ports
• Vertical Beamwidth (3 dB): 35 ±3°@ 2.x GHz, 2 ports, 25 ±5°@ 3.x GHz, 2 ports

SW Specifications

• Network Mode: NAT / Bridge / Tunnel
• SIM: PIN management SIM lock
• IP Protocol: IPv4 / IPv6
• Network Connection Management: Auto / manual
• LTE Scan Mode: Full band scan, frequency lock
• WLAN: WPS; MSSID isolation; VLAN
• VPN: L2TP; GRE; PPTP; L2 VxLAN
• NAT: Port forwarding, Port trigger, DMZ, ALG
• Firewall: IP/MAC/URL filter; Access control; Block port scanner / SYN flood; SPI filter
• Network Management: TR069 SNMP
• Diagnostics: TCP dump; Ping; Trace route
• Statistics: LTE status / connection time / system up time Device status; DHCP client list; Wi-Fi station list; LTE status; Firewall status
• Maintenance: Date and time setting; Reboot; Restore factory settings; Restore / back up configuration files; Firmware upgrade locally or OTA
• System Logs: Operating; Run-time; Filter / select / display / export

Environmental Specifications• Operating Temperature: -40°F to 131°F / -40°C to 55°C
• Storage Temperature: -40°F to 158°F / -40°C to 70°C
• Operating Humidity: 5% ~ 95%
• Ingress Protection Rating: IP65Wi-fi Specifications• Standard: IEEE 802.11 b/g/n
• Channel Bandwidth: 20/40 MHz
• Frequency: 2.4 GHz
• TXRX: 1T1R
• Peak Rate:
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: 300 Mbps
• Modulation: DSSS/CCK, OFDM
• Receive Sensitivity:
-64 dBm @ 65 Mbps, typical for 802.11n
-65 dBm @ 54 Mbps, typical for 802.11g
-76 dBm @ 11 Mbps, typical for 802.11b
• Max Output Power: 10 ±3dBm
• Antenna Type: Internal omni
• Antenna Gain: 0 dBi
