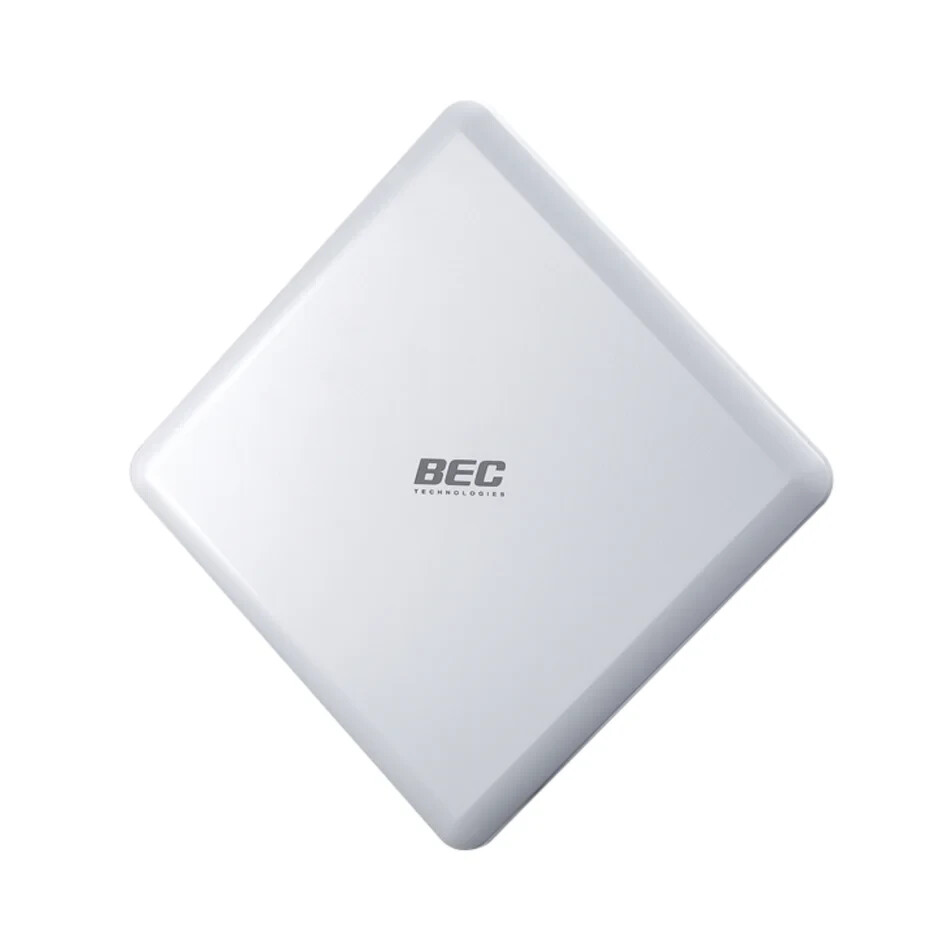

BEC RidgeWave 7000 R28-GOutdoor Cellular Wireless Gigabit LTE RouterThe RidgeWave® BEC 7000 R28-G is a High-Power LTE CAT B CPE-CBSD delivering robust connectivity for CBRS B48 commercial deployments. The 7000 R28-G is an LTE CAT 15 UE supporting carrier aggregation up to 4 CA DL / 2CA uplink, with a high gain 15dBi 4T4R antenna to support DL MIMO 4×4 and UL MIMO 2×4. CBRS deployments with the 7000 R28-G will experience increased capacity, higher throughput, and extended coverage.
Unique to BEC devices are GORE® Vents for pressure equalization, humidity, and airflow, accompanied by lighting/ESD Protection and the IP68/UL 50E enclosure to ensure protection against dirt, harmful ingress of water, humidity, and extreme temperatures for years of dependable operation.
The RidgeWave® BEC 7000 R28-G integrates seamlessly with BECentral®, BEC’s proven cloud-based remote management as a complete solution for managing large-scale UE deployments. Administrators can remotely provision, monitor, upgrade, and troubleshoot devices from a single centralized location in real-time. For CAF II or other ETC support recipients, BECentral® fully supports scheduling, testing, report generation, and submission for FCC Performance Measures.
Ideal applications:
Fixed Wireless Last Mile AccessMission CriticalIndustrialOil and GasMiningMarine
Multi-Element Adaptive Antenna4×4 MIMO Patented Dual-Pol Dual-Slant antenna technology ensures faster and efficient bi-directional transmissionBuilt to LastIP-68/UL-50E Enclosure, complete protection against dust and water ingressVentilationGORE® Vent for pressure equalization, humidity, and airflowWind Tunnel TestedSuccessfully operating up to 132mph (F2 Tornado 113-157mph)Surge /Lightning ProtectionIEC 6100-4-2 (ESD) and IEC 61000-4-5 (Lighting)Extended Temperature Range-40°C to 70°C (-40°F to 158°F)PoE PoweredGigabit LAN Interface with IEEE 802.3at (PoE+) complaintCorrosion ProtectionSurTec treated Die-cast alloyForm FactorUnder 5lbs, easily mount onto lightweight poles or exterior walls
Network Certification: OnGo, FCC Part 96 Authorized CAT B CPE-CBSD
Supported Frequency Band
Comply 3GPP Rel.12 with Carrier Aggregation4G/LTE: TDD (Cat.15)B48 (3550MHz ~ 3700MHz)Data Rates up to 580Mbps DL and 30Mbps UL (TDD Config. 2, SSF: 7)Carrier Aggregation: 4CA DL/2CA ULLTE Bandwidth: 15MHz, 10MHz, 15MHz & 20MHzModulation: 256QAM DL / 64QAM ULMaximum Transmit Power: 38dBm EIRPLTE AntennaMIMO Directional (Dual Polarization)4×4 MIMO DL / 2×2 MIMO UL4T4R DL / 2T4R ULGain: 15.5dBi ± 1dBiOperational Modes
Bridge or RoutedFirewall
Built-in NAT FirewallStateful Packet Inspection (SPI)Prevents DoS attacks include Land Attack, Ping of Death, etc.IP Filtering, MAC Filtering, URL FilteringPassword protection for system managementAccess Control and VPN pass-throughSNTP, DNS relay and DDNSIGMP snooping and IGMP proxyNetwork Protocols and Features
NAT, static routing and RIP-1/2NAT supports PAT and multimedia applicationsVirtual Server and DMZSNTP, DNS relay and DDNSIGMP snooping and IGMP proxyQuality of Service Control
Supports the DiffServ approachTraffic prioritization based on protocol, port number, and IP addressManagement
Quick Installation WizardWeb-based GUI for remote and local managementFirmware upgrade and configuration data upload & download via web-based GUIDHCP server/client/relayTR-069 supports remote managementBECentral® Cloud ManagementSNMP and Syslog monitoringPhysical Interface
Gigabit LAN Interface with IEEE 802.3at compliant PoE P.DWAN: 4G LTESIM Card: One (1) slot 2FF SizeLED Indicators: Power, LAN(PoE), LTE Signal Strength, and InternetPower Specifications
Input: PoE-PD (802.3at PD complaint (25.5W))Operating Environment
Operating temperature: -40°C to 70°C (-40°F to 158°F)
