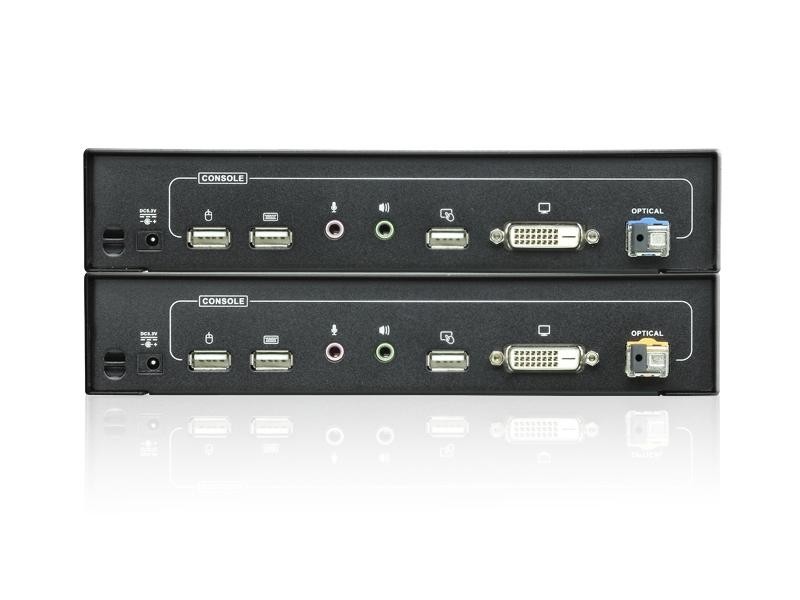

for All Products Aten CE680 USB DVI Single Link Optical KVM Extender (Transmitter/Receiver) Kit with Audio Up to 1950ft Manufacturer:Aten SKU:CE680 Condition:New Warranty:3 Years
The CE680 is a DVI Optical KVM Extender that overcomes length restrictions of standard DVI cables by using fiber optics to send high definition audio, video and control signals over longer distances. The CE680 can transmit KVM DVI signals very long distances - up to 600 m away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gbps optical link, for resolutions up to 1920 x 1200 at 60Hz, 24-bits, with picture perfect quality.
In addition to extending keyboard and mouse control, the CE680 also transfers RS-232 signals (up to 115 kbps) and USB signals in both directions, with ports for both, allowing you to connect serial devices, such as barcode scanners; or USB devices such as touchscreens, which can provide access to a computer connected at the local site - up to 600 m away. The CE680 allows access to a computer from both the local and remote consoles (USB keyboard, monitor, and mouse). Furthermore, the CE680 takes advantage of the newest fiber optic cable technology to connect the local and remote units; providing easy installation and a very long 600 m extension of KVM DVI signals.
Features
- Allows access to a computer or KVM installation from a local / remote console
- Supports DVI-D interface and allows transmission of DVI single-link signals
- Superior video quality of up to 1920 x 1200 at 60 Hz (24-bits) - get an excellent, crisp image on your screen over long distance transmissions up to 600 m*
- Touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Uses one fiber optic cable to connect the local and remote units
- HDCP compatible
- RS-232 serial port - connect to a serial terminal, or serial devices such as barcode scanners (Baud Rate 115200 bps)
- PC Wakeup support - use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
- Audio Enabled - supports stereo speakers and microphone
- Rack mountable
Specifications:
Function CE680L CE680R Connectors KVM Ports Video 1 x DVI-D Female (White) N/A Speaker 1 x Mini Stereo Jack Female (Green) N/A Mic. 1 x Mini Stereo Jack Female (Pink) N/A USB (KB / Mouse) 1 x USB Type B Female (White) N/A USB (Touch Panel) 1 x USB Type B Female (White) N/A Console Ports Keyboard 1 x USB Type A Female (White) Video 1 x DVI-D Female (White) Mouse 1 x USB Type A Female (White) Speaker 1 x Mini Stereo Jack Female (Green) Mic. 1 x Mini Stereo Jack Female (Pink) USB (Touch Panel) 1 x USB Type A Female (White) RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black) Power 1 x DC Jack (Black) Optical In/Out 1 x bi-directional SFP (LC) LEDs Local 1 (Green) N/A Remote 1 (Green) 1 (Green) Link 1 (Green) 1 (Green) Switches Operation Mode Selection 1 x Pushbutton Wakeup PC N/A 1 x Pushbutton Fiber Optics Operating Distance* 600 m with (SM) fiber Wavelength 1310/1550 nm for SM Data rate Single fiber: 3.125G bps Power Consumption DC5.3V, 10.2W DC5.3V, 9.0W Environment Operating Temp. 0–50°C Storage Temp. -20–60°C Humidity 0–80% RH, Non-condensing Physical Properties Housing Metal Weight 1.09 kg 1.09 kg Dimensions (L x W x H) 21.50x16.29x4.18cm 21.50x16.29x4.18cm
Package Includes:
- 1x CE680L DVI Optical KVM Extender (Local Unit)
- 1x CE680R DVI Optical KVM Extender (Remote Unit)
- 1x Custom KVM Cable Set (1.8m)
- 1x USB Cable (1.8m)
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
