Atari A8 MiniKeyboard – Professional Diagnostic & Repair Tool (XL/XE)
If you have ever repaired or upgraded an Atari 800XL or 130XE, you know the frustration. Trying to test a motherboard while a full-sized stock keyboard is perched precariously on top—slipping, sliding, and risking a short circuit—is a recipe for disaster.

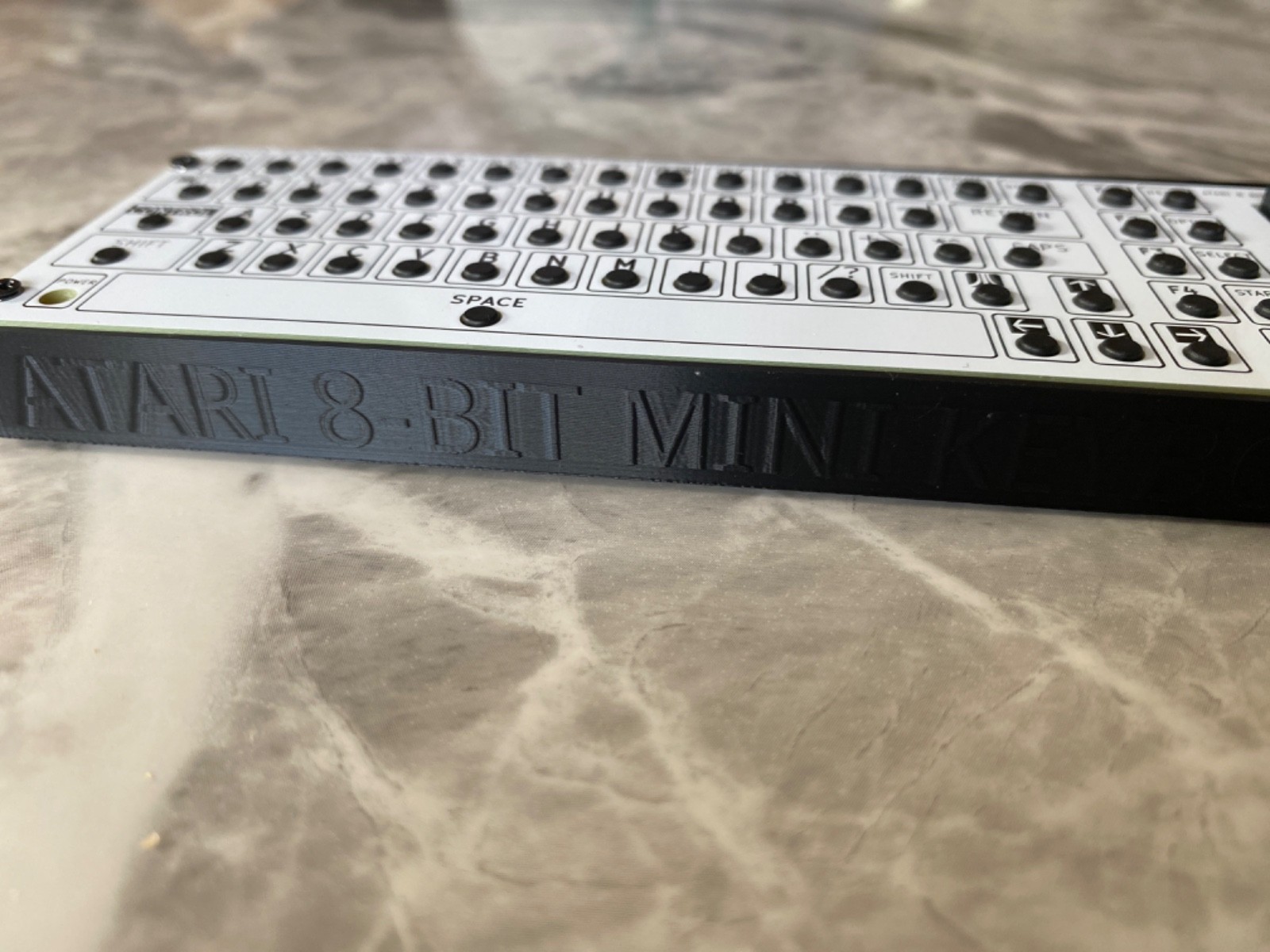

TheA8 MiniKeyboardis a compact, purpose-built solution designed to make troubleshooting and prototype testing safe and easy.
Key Features
Universal Compatibility:Includes a double-sided adapter compatible with bothAtari XL and XEmodels.
Enhanced Layout:Includes dedicatedF-keysandduplicated arrow keysfor easier navigation during testing.
High-Quality Connection:Connects via a generous300mm 24-pin IDC ribbon cable, giving you plenty of room to work on the motherboard without the keyboard getting in your way.
Revised Design:This is the latest version with the corrected power LED trace—no "bodge wires" required.
Standard Tactile Switches:Durable, responsive buttons.
What’s Included?
- 1x Fully Assembled A8 MiniKeyboard
- 1x Double-Sided XL/XE Adapter PCB
- 1x 300mm Ribbon Cable
- Plastic Case
Technical SpecificationsFeatureDetailsSupported ModelsAtari 600XL, 800XL, 65XE, 130XE, 800XEAdapter Thickness0.6mm (Slim-fit for original connectors)Cable Length300mm (IDC 24-pin)ConnectivityDouble-sided (Single-sided adapters available for aftermarket connectors)Export to Sheets
IMPORTANT NOTE:Always check your keyboard connectors before plugging in. These adapters are thin (0.6mm) to ensure a proper fit; please handle with care.Never plug or unplug the keyboard while the system is powered on.
Built by an enthusiast, for enthusiasts.Whether you are flashing a U1MB, testing a RAM upgrade, or performing a total restoration, this is the tool your workbench is missing.
Final thoughts: This is a licensed product, however unlike open source products where I often give a designer credit, in this case the requirement is that I sell this as my own product, nevertheless, you can see from the silkscreen the designer as he printed it on the PCB itself.
About the double sided connector to the Atari motherboard, it is designed to be split in half, you can break it in half - one connector for XE motherboard, and one for XL motherboard. In the picture I've left both halves attached you just use one side or the other depending upon whether you use it for XL or XE. If you are familiar with the Atari age thread, there was a variant that only worked in stock motherboards, this is the single sided connector that works in all motherboards (stock atari or aftermarket ribbon connectors).
Thanks for looking at my sale! I will have more licensed products this year!
