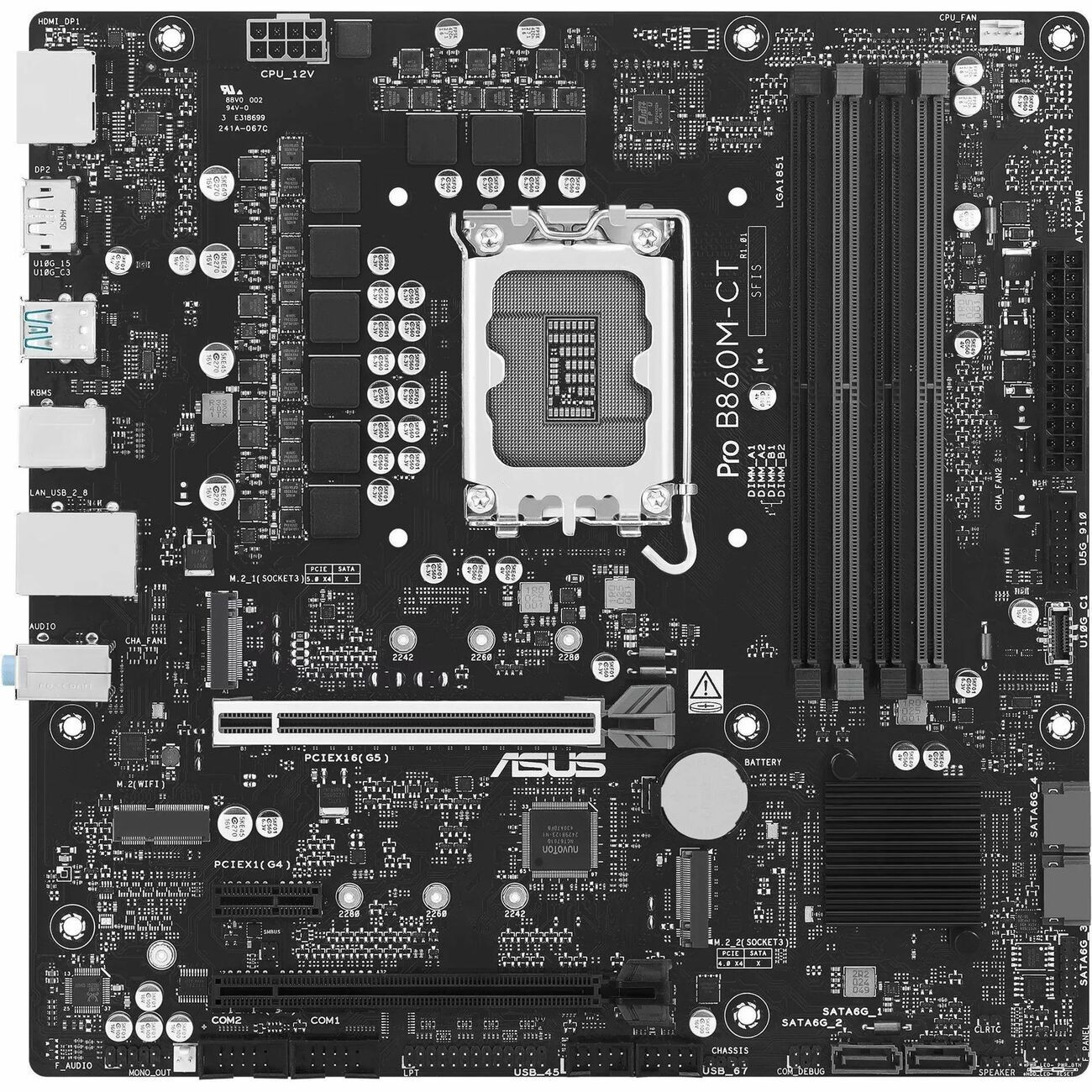

Asus Pro B860M-CT-CSM Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - Micro ATX (299990) Asus Pro B860M-CT-CSM Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - Micro ATX (299990)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: Pro B860M-CT-CSM Desktop Motherboard 2 x SATA 6Gb/s cables 1 x Screw package for M.2 SSD 1 x I/O Shield 1 x M.2 Key E screw package 1 x ACC Express Activation Key Card 1 x Quick start guide

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)

Brand Compatibility: Intel

Product Description

This item is brand-new, factory sealed.

Micro-ATX B860 business motherboard with enhanced security, reliability, manageability and serviceability
Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (Series 2)
ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced System Security: A self-recovering BIOS, TXT, TPM to safeguard PCs and NIST SP 800-193 compliance
Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient Management and Customization: BIOS EZ Deploy, an event log and commercial BIOS kit to enable easy maintenance
Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Ultrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-C
DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
Model
Pro B860M-CT-CSMNews and Updates
Please visit our GLOBAL website to check and download the latest updates.CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.Chipset
Intel B860 ChipsetMemory
4 x DIMM slots, max. 256GB, DDR5, dual DIMM clips
Supports up to 8666+ MT/s(OC) , Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)"
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit /> Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics
2 x DisplayPort
1 x HDMI port
Graphics specifications may vary between CPU types. Please refer to for any updates.
DP1 Supports max. 4K at 60Hz and DP2 Supports max. 8K at 30Hz as all specified in DisplayPort 1.4
Supports 4K at 60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors or graphic cards resolution.
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.Expansion Slots
Intel Core Ultra Processors(series 2)
1 x PCIe 5.0 x16 SafeSlot
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to for the list of supported peripherals.Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors(series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
4 x SATA 6Gb/s ports
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.Ethernet
1 x Intel1Gb
ASUS LANGuard
With Intel I219-V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.Wireless and Bluetooth
M.2 slot only 2230 (Key E, CNVi and PCIe)
Wi-Fi module is sold separately.USB
Rear USB (Total 4 ports)
1 x USB 10Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A )
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 portsAudio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports
1 x USB 10Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A )
2 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
1 x Intel 1Gb Ethernet
3 x Audio jacksInternal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-Out Audio header (with Amp IC)
1 x M.2 slot (Key E)
1 x Speaker header
1x SMBUS header
1 x 10-1 pin Front Panel System header
1x SPI header(14-5 pin)Special Features
ASUS Q-Design
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Box headers
- Dual DIMM clips
- SafeSlot
Bespoke Motherboard Design and Business Focused Features
- ASUS Self-Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS Kit
- Anti-moisture coating
- BIOS EZ Deploy
- 24/7 reliability
- Overcurrent protection
TXT support
TPM IC onboard
Please contact local FAE for Commercial BIOS kit.Software Features
ASUS Exclusive Software
ASUS DriverHub
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS MyHotkeyRemote Management Features
IT Management software supported
- ASUS Control Center Express (ACCE)
Ready for ASUS DASH LAN Card
1 x SMBUS header
ASUS DASH LAN Card is sold separately.BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOSManageability
WOL by PME, PXEAccessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x Screw package for M.2 SSD
1 x I/O Shield
1 x M.2 Key E screw package
Documentation
1 x ACC Express Activation Key Card
1 x Quick start guidePackage Contents:

• Pro B860M-CT-CSM Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Screw package for M.2 SSD
• 1 x I/O Shield
• 1 x M.2 Key E screw package
• 1 x ACC Express Activation Key Card
• 1 x Quick start guide

SpecificationPhysical CharacteristicsForm FactorMicro Warranty3 YearI/O ExpansionsNumber of PCI Express x1 Slots1Total Number of Expansion Slots3PCI Express Standard

• PCI Express 4.0
• PCI Express 5.0

Number of PCI Express x16 Slots2Total Number of PCI Express Slots3MemoryMemory TechnologyDDR5 SDRAMNumber of Memory Slots4Memory Speed Supported8666 MHzMemory Form Factor
