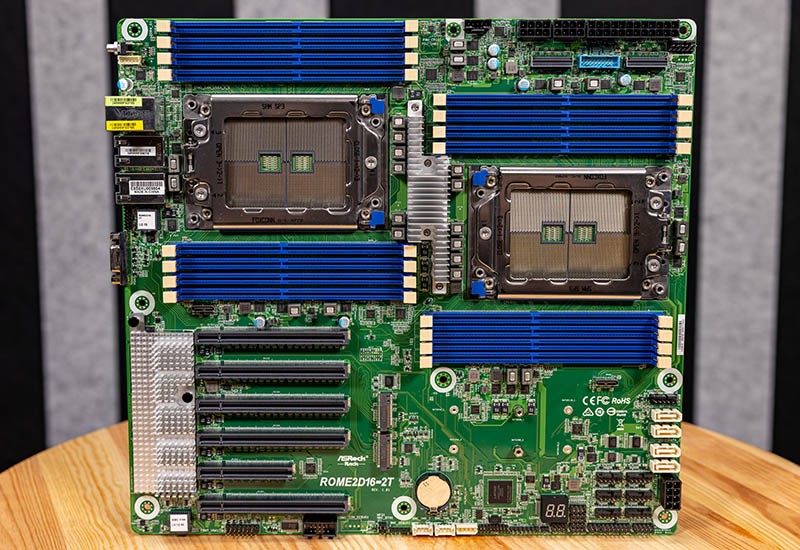

Asrock Rack ROME2D16-2T EPYC™ 7002 en 7003 mainboard LGA4094 DDR4 RJ45 BMCSpecificationsPhysical StatusForm FactorEEBDimensions12" x 13" (305mm x 330mm)Processor SystemCPUSupports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors

*A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ TechnologySocketDual Socket SP3 (LGA4094)Thermal Design Power280 WChipsetSystem on ChipSystem MemorySupported DIMM Quantity8+8 DIMM slots (1DPC)Supported TypeSupports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
Max. Capacity per DIMMRDIMM: up to 64GB
LRDIMM: up to 128GB
RDIMM/LRDIMM-3DS: up to 256GB
NVDIMM-N: up to 32GBMax. DIMM FrequencyRDIMM/ LRDIMM/NVDIMM-N: max. 3200MHzVoltage1.2VPCIe Expansion Slots (SLOT7 close to CPU)PCIe x 16SLOT6: PCIe x16 (PCIe 4.0 x16) [CPU1]
SLOT5: PCIe x16 (PCIe 4.0 x16) [CPU0]
SLOT4: PCIe x16 (PCIe 4.0 x16) [CPU1]
SLOT3: PCIe x16 (PCIe 4.0 x16) [CPU0]
SLOT1: PCIe x16 (PCIe 4.0 x16) [CPU0]PCIe x 8SLOT2: PCIe x8 (PCIe 4.0 x8) [CPU1]M.21 M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor [CPU0]
1 M-key (PCIe4.0 x4), supports 22110/2280/2242 form factor [CPU0]Other PCIe Expansion ConnectorsOthers2 SlimSAS (PCIe4.0 x8 or 8 SATA 6Gb/s) [CPU0, CPU1]*
*SlimSAS from CPU0 support PCIe only while installing 2 processorsOCuLink2 Oculink (PCIe4.0 x4 or 4 SATA 6Gb/s) [CPU0,CPU1]SATA/SAS StoragePCH Built-in StorageAMD EPYC 7003/7002 (Up to 21 SATA 6Gb/s):
CPU0: 1 SlimSAS, 1 OCuLink, 1 M.2
CPU1: 1 SlimSAS, 1 OCuLink, 4 SATA 7-pinEthernetAdditional GbE Controller1 Intel®X550-AT2: 2 RJ45 (10GbE)Server ManagementBMC ControllerASPEED AST2500: IPMI2.0 with iKVM and vMedia supportIPMI Dedicated GLAN1 x Realtek RTL8211E for dedicated management GLANGraphicsControllerASPEED AST2500: 1 DB15Rear I/OUID Button/LED1 UID button w/ LEDVGA Port1 DB15 (VGA)USB 3.2 Gen1 Port2 Type-A (USB3.2 Gen1)RJ452 RJ45 (10GbE)
1 dedicated IPMIInternal Connector/HeadersPower Connector1 (24-pin, ATX main power), 3 (8-pin, ATX 12V)Install ATX12V1 and ATX12V2 for regular use; Use the ATX12V3 power connector when installing one or more +12V PCIE devices that totally requires more than 12A of current.Auxiliary Panel Header1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBusSystem Panel1 (9-pin): power switch, reset switch, system power LED, HDD activity LEDCOM Header1VGA header1Fan Header8 (6-pin)TPM Header1 (17-pin, LPC), 1 (13-pin, SPI)SGPIO Header4HSBP1SMBus header2PMBus header1IPMB Header1Clear CMOS1 (contact pads)USB 3.2 (Gen1) Header1 (19-pin, 2 USB3.2 Gen1)NMI Header1LED IndicatorsStandby PWR LED 5vsb180 Debug Port LED1Fan Fail LED8System BIOSBIOS Type32MB AMI UEFI Legal BIOSBIOS FeaturesPlug and Play (PnP), ACPI 6.3 Compliance Wake Up Events, SMBIOS 3.3.0, ASRock Rack Instant FlashHardware MonitorTemperatureCPU, MB, Card side, X550 Temperature SensingFanFan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed ControlVoltageVsoc,Vcpu, VCCM, VPPM, +1.8V, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSBSupported OSOSMicrosoft®Windows:
Server 2016 (64bit)
Server 2019 (64bit)

Linux:
RedHat Enterprise Linux Server 8.2 (64bit) / 7.9 (64bit)
CentOs 8.2 ( 64 bit) / 7.9 ( 64 bit)
SUSE SLES 15.2(64 bit) / 12.5(64bit)
UBuntu 20.04.1 (64 bit) /18.04.5 (64 bit) / 16.04.7 (64 6.7 u3 / 7.0 u1
vSphere 6.7 u3 / 7.0 u1
CITRIX Hypervisor 8.1.0EnvironmentTemperatureOperation temperature: 10°C ~ 35°CNon operation temperature: -40°C ~ 70°C
