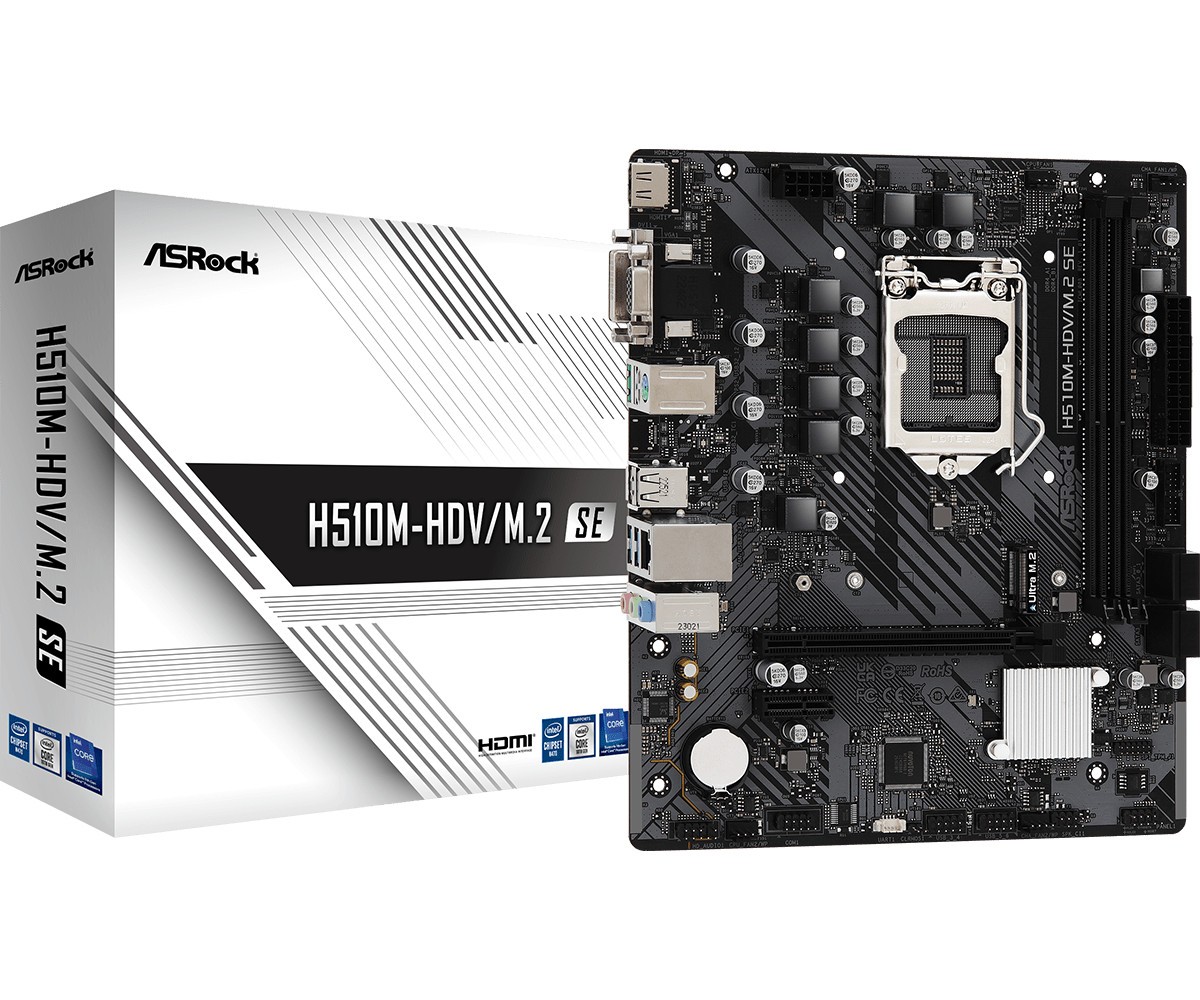

Asrock H510M-HDV/M.2 SE LGA1200 M-Atx 2 Ddr4 Vga Dvi Hdmi M.2

• Unique FeatureRock-Solid Durability
  - 5 Power Phase
  EZ Update
  - ASRock Auto Driver Installer
• CPU- Supports 10thGen & 11thGen Intel®Core™ Processors (LGA1200)
  - Supports Intel®Turbo Boost Max 3.0 Technology
• Chipset- Intel®H470
• Memory- Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB
  - Supports Intel®Extreme Memory Profile (XMP) 2.0
  - 15μ Gold Contact in DIMM Slots

  *11th Gen Intel®Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium®and Celeron®support DDR4 2666 natively.
  10th Gen Intel®Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium®and Celeron®support DDR4 2666 natively.
• BIOS- 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics- 1 x HDMI
  Intel®11thGen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
  Intel®10thGen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz
  - 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60Hz
  - 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz

  *Intel®UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  Graphics specifications may vary between CPU types.
• Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN- Gigabit LAN 10/100/1000 Mb/s
  - Realtek 8111H
• SlotsIntel®11thGen & 10thGen Processors:
  - 1 x PCIe 4.0 x16 Slot (PCIE1)*
  Intel®11thGen Processors support PCIe 4.0 x16
  Intel®10thGen Processors support PCIe 3.0 x16
  Intel®H470 Chipset:
  - 1 x PCIe 3.0 x1 Slot (PCIE2)*

  *Supports NVMe SSD as boot disks
• StorageChipset:
  - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
  - 4 x SATA3 6.0 Gb/s Connectors

  *Supports Intel®Optane™ Technology
  Supports NVMe SSD as boot disks
• RAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
  - 6 x USB 2.0 (2 Rear, 4 Front)

  *All USB ports support ESD Protection
• Connector- 1 x COM Port Header
  - 1 x SPI TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

  *CPU_FAN1 supports the fan power up to 1A (12W).

  **CPU_FAN2/WP supports the fan power up to 2A (24W).

  ***CHA_FAN1~2/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O- 1 x PS/2 Mouse/Keyboard Port
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 1 x HDMI Port
  - 2 x USB 2.0 Ports
  - 4 x USB 3.2 Gen1 Ports
  - 1 x RJ-45 LAN Port
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFISoftware
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock XFast LAN
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash
  - ASRock Internet Flash
  - ASRock Easy RAID Installer

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories- 1 x User Manual
  - 1 x I/O Shield
  - 2 x SATA Data Cables
  - 1 x Screw for M.2 Socket
• Form Factor- Micro ATX Form Factor: 9.1-in x 7.8-in, 23.1 cm x 19.8 cm
• OS- Microsoft®Windows®10 64-bit / 11 64-bit
• Certifications- FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is
