Motherboard Description:

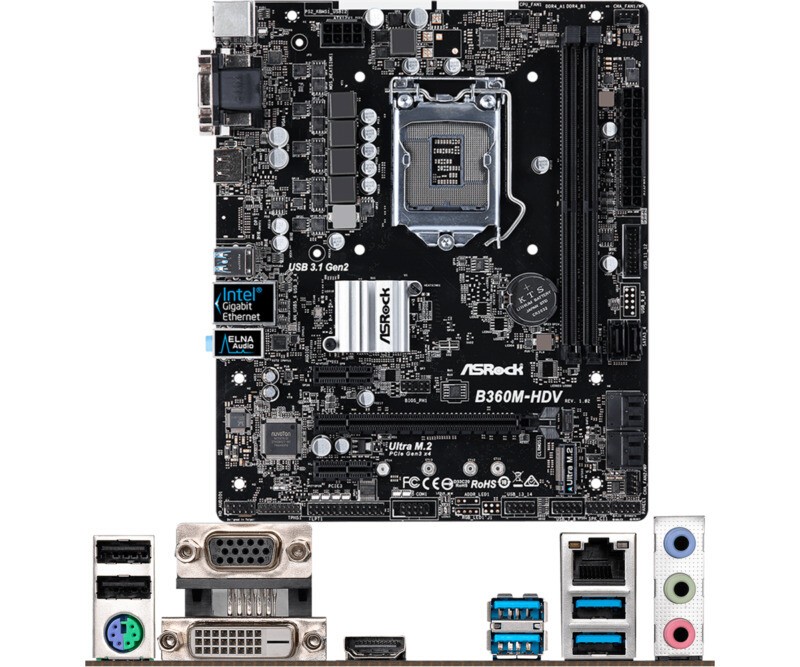

Asrock B360M-HDV Motherboard Intel B360 LGA1151 2 x DDR4 Micro ATX DVI-D HDMI

Instructions:

Please DO NOT use fake memory, because the motherboard maybe can't support.

Please DO NOT use single-side memory, because some motherboards can't support.

Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.

Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

Package Included:

1 * motherboard

2 * sata cable

1 x I/O back panel

Product information

CPU

- Supports 9th and 8th Generation Intel® Core™ Processors (Socket 1151)

- Supports CPU up to 95W

- Supports Intel® Turbo Boost 2.0 Technology

Chipset

-Intel® B360

RAM

- Dual channel DDR4 memory technology

- 2 x DDR4 memory slots

- Supports DDR4 2666 / 2400 / 2133 (non-ECC), un-buffered memory

- Maximum system memory capacity: 32GB*

- Supports Intel® Extreme Memory Profile (XMP) 2.0 technology

- DIMM sockets feature 15µ gold plated headers

*Due to operating system limitations, the actual memory that can be used under Windows® 32-bit operating system will be less than 4GB. Using a 64-bit CPU under Windows® 64-bit operating system does not have this limitation.

BIOS

- Multilingual 128Mb AMI UEFI Legal BIOS with GUI support

- Compliant with ACPI 6.0 Compliant Wake Events

- Support SMBIOS 2.7

- CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multifunction Regulator

Onboard graphics card

- Supports Intel® UHD graphics built-in visual technologies: Intel® High Speed Sync Video Technology (AVC, MVC (S3D) and MPEG-2 Full HW Encode1), Intel® InTru™ 3D, Intel® Clear Video Technology, Intel® Insider™, Intel® UHD Graphics Chip

- DirectX 12

- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (decode only), MPEG2, MJPEG, VC-1

- Three display output options: D-Sub, DVI-D and HDMI

- Supports simultaneous output of three monitors

- Supports HDMI 1.4 technology, up to 4K x 2K (4096x2160) @ 30Hz resolution

- Support DVI-D, maximum resolution up to 1920x1200 @ 60Hz

- Supports D-Sub, up to 1920x1200 @ 60Hz

- Supports HDMI 1.4 port auto-sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (requires HDMI compatible monitor)

- Supports HDCP 2.2 functionality via DVI-D and HDMI 1.4 ports

- Supports 4K Ultra HD (UHD) playback via HDMI 1.4 port

*Only processors with built-in GPU can support Intel® UHD graphics chip built-in visual technology and display output.

Sound effect

- 7.1 channel high definition audio (Realtek ALC887 audio codec)*

- Support anti-surge

- ELNA Professional Audio Capacitors

*To configure 7.1-channel high-definition audio, use the front panel audio module and enable multi-channel audio through the audio driver.

local area network

- Gigabit LAN 10/100/1000 Mb/s

- Giga PHY Intel® I219V

- Support Wake-On-LAN function

- Support anti-lightning/anti-ESD static electricity

- Supports Energy Efficient Ethernet 802.3az

- Support PXE

Expansion slot

- 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)*

- 2 x PCI Express 3.0 x1 slots (flexible PCIe slots)

*Support NVMe SSD boot

Storage

- 6 x SATA3 6.0 Gb/s ports, support NCQ, AHCI and hot plug*

- 1 x Ultra M.2 connector (M2_1), supports M Key 2230/2242/2260/2280 type M.2 SATA3 6.0 Gb/s and M.2 PCIe module to Gen3 x4 (32 Gb/s)**

*If M2_1 is occupied by a PCIE-type M.2 device, SATA3_3 will be disabled.

**Supports Intel® Optane™ Technology

Support NVMe SSD boot

Support ASRock U.2 kit

Onboard interface

- 1 x Printer Port Header

- 1 x COM port header

- 1 x TPM header

- 1 x Chassis open warning function header and speaker header

- 1 x CPU Fan Connector ((4-pin))*

- 2 x Chassis/Water Pump Fan Connectors ((4-pin)) (Smart Fan Speed Control)**

- 1 x 24-pin ATX power connector

- 1 x 8-pin 12V power connector

- 1 x front panel audio jack

- 2 x USB 2.0 pin headers (supports 4 USB 2.0 ports) (supports ESD protection)

- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (supports ESD protection)

*CPU fan connector supports up to 1A (12W) power supply.

**The case/water pump fan supports up to 2A (24W) water cooling fan.

CHA_FAN1/WP and CHA_FAN2/WP can automatically detect 3-pin or 4-pin fans.

I/O port on the rear panel

- 1 x PS/2 keyboard/mouse port

- 1 x D-Sub connector

- 1 x DVI-D port

- 1 x HDMI port

- 2 x USB 2.0 ports (supports ESD protection)

- 4 x USB 3.1 Gen2 Type-A Connectors (10 Gb/s)

- 1 x RJ-45 network interface with indicator lights (action/connection indicator and speed indicator)

- HD Audio Jack: Line In / Front / Mic

Dimensions

- Micro ATX; 8.9-in x 7.4-in, 22.6 cm x 18.8 is the only online payment method we accept. Please make sure you have a valid/confirmed PayPal account prior offerding. And please make sure that your PayPal registed address is the same with your registed address.
