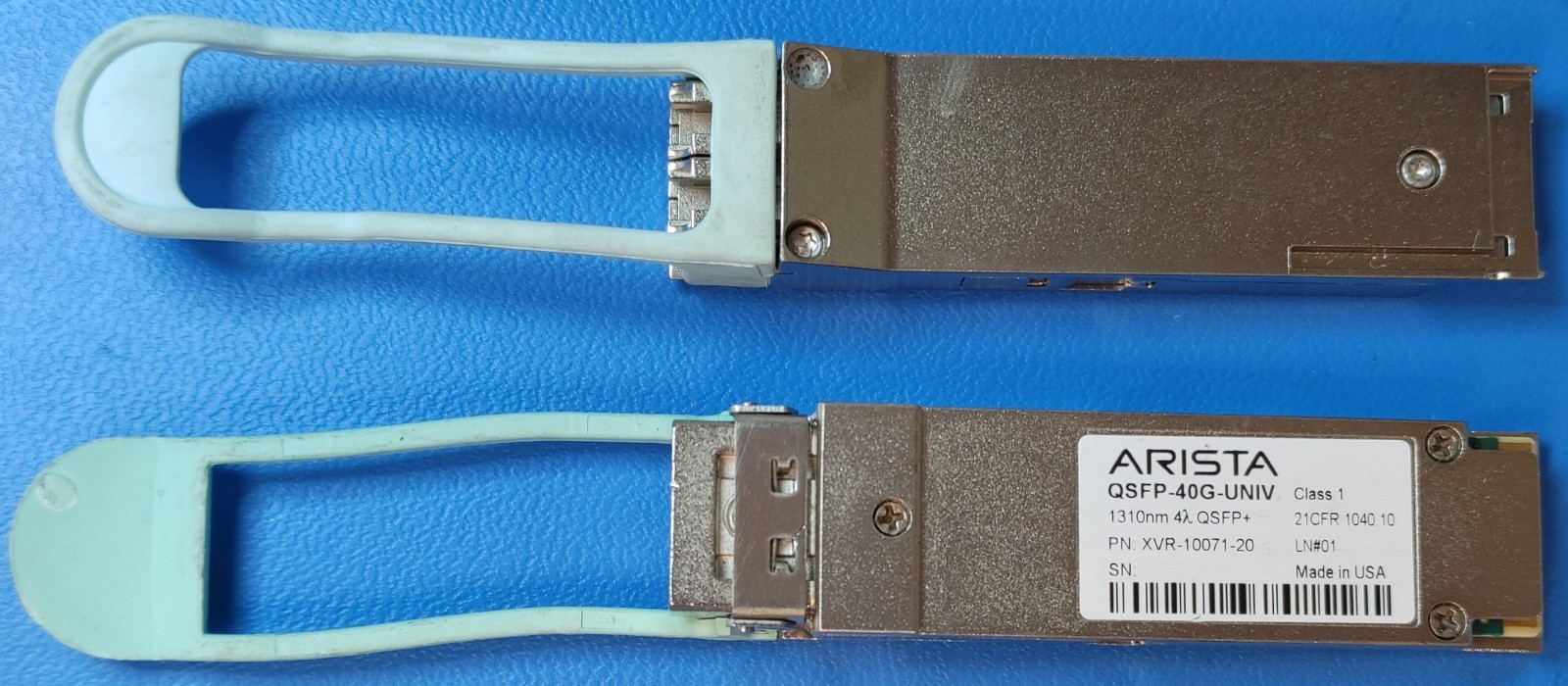

Arista QSFP-40G-UNIV / XVR-10071-2040GBASE-LR4 Transceiver 1310nm QSFP+

TheArista QSFP-40G-UNIV / XVR-10071-20 is a 40-gigabit universal QSFP+optical transceiver designed to support both multi-mode and single-mode fiberinfrastructure.

·Data Rate: 40 Gbps aggregate (4 channels at ~11.2 Gbps per channel)

·Wavelength: 1310nm nominal (utilizing 4 CWDM lanes: 1271, 1291, 1311,and 1331nm)

·Connector Type: Duplex LC

·Media andReach:

o Up to 150 meters over duplex OM3/OM4 multi-mode fiber (MMF)

o Up to 500 meters over single-mode fiber (SMF)

·PowerConsumption: Maximum 3.5W

·Features: Supports Digital Diagnostics Monitoring (DDM/DOM) andcomplies with QDR/DDR InfiniBand and 40GBASE-LX4 standards
