Description:
Amphenol

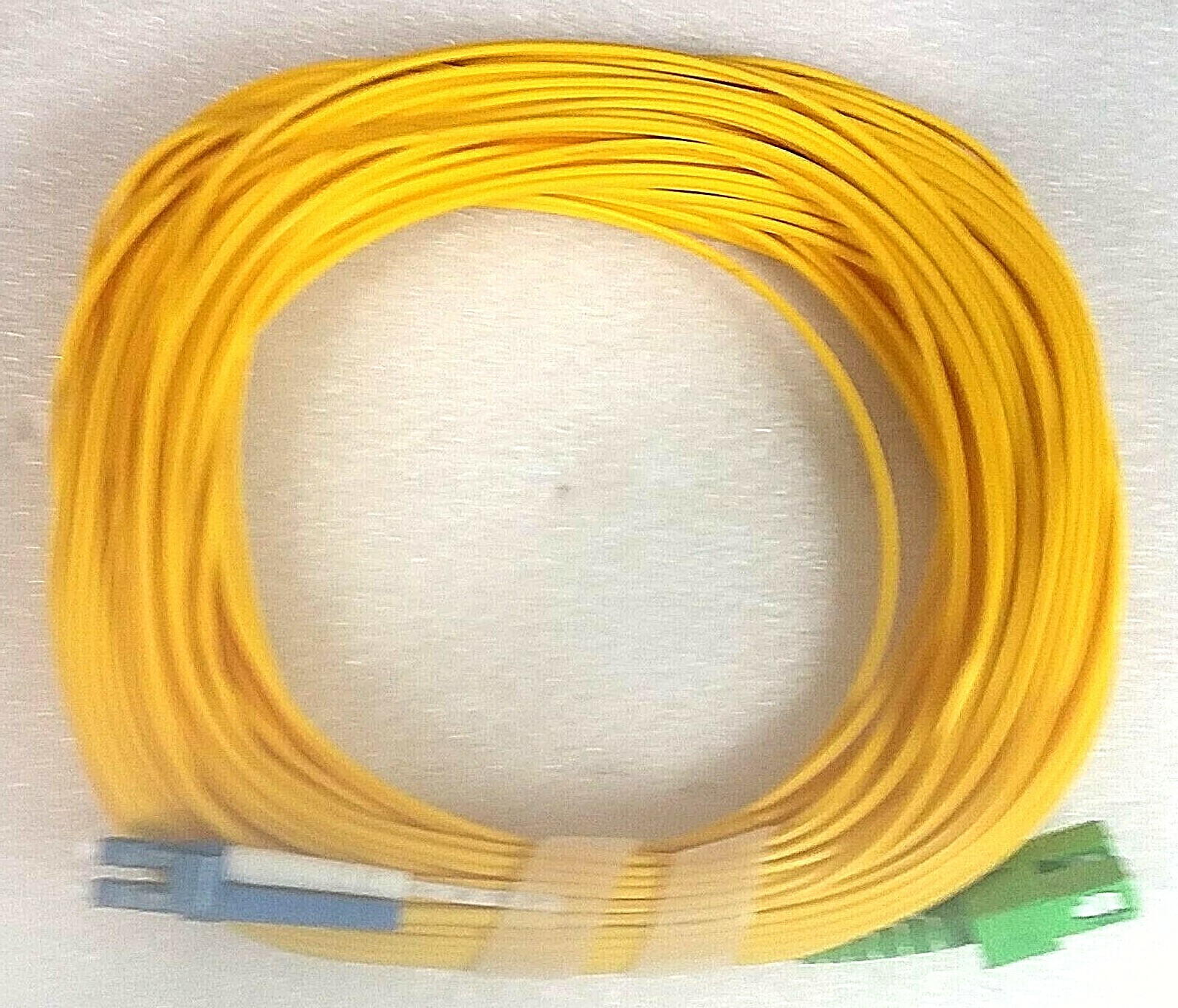

SM DX 25meters, SMF28e, Ofnr, 2mm,.SC/APC-LC/UPC, 8.33/125um; 25 meters; RoHsCompliant;
Singlemode Duplex Optical Fiber Cable-Singlemodecable features a 9-micron glass core.Duplexcable consistsof twofibers, usually in a zipcord (side-by-side) style. Useduplexmultimode orsinglemode fiberoptic cable for applications that require simultaneous, bi-directional data transfer. ...
SMF28e- Singlemode Fiber Optical Cable- This enhanced single-modefiberis an ITU-T G.652.D compliant opticalfiberthat builds on our low-lossfibertechnology to enable extended networking distances for long-haul,metro, and accessapplications.SMF-28e fiber is optimized for various CWDM applications and provides flexibilityand versatility in network design, as it enables the use of the full transmission window.
OFNR- Optical Fiber Nonconductive Riser:This is a cable containing only glass fiber with no copper conductive elements. It is generally intended for vertical runs between floors as part of a fiber backbone. This type of cable complies with the Underwriters Laboratories (UL) fire safety test Riser/1666.
RoHs Compliant-RoHSis a product levelcompliancebased on the European Union's Directive 2002/95/EC, the Restriction ofthe Use of certain Hazardous Substances in Electrical and Electronic Equipment.
Connectors: SC/APC-LC/UPC-SCis a type offiber optic connectorwith snap (push-pull coupling) coupling type and a 2.5 mm diameter ferrule, which is popularly used in single mode duplex system for its high performance and accurate alignment.
SC APC connectoris commonly used in applications that are much more sensitive to return loss, and requires for high precision signal, such as FTTX (Fiber To The X), video delivery through RF signal, WDM (wavelength division multiplexing) applications and analogue equipment like CCTV. They are green in color.
LC/UPC-LC connector. (LucentConnector) A miniaturized version of thefiber-opticSCconnector. It looks somewhat like the SC, but is half the size with a 1.25mm ferruleinstead of 2.5mm. LC connectors are generally used in High-density connections,SFP and SFP+transceivers,XFP transceivers[. UPC stands for ultra physical contact connector.This results in alower backreflection (ORL) than a standard PC connector, allowing more reliable signals in digital TV,telephony and data systems, where UPC today dominates the market.
Part #942-99B4E-5D225
bb
