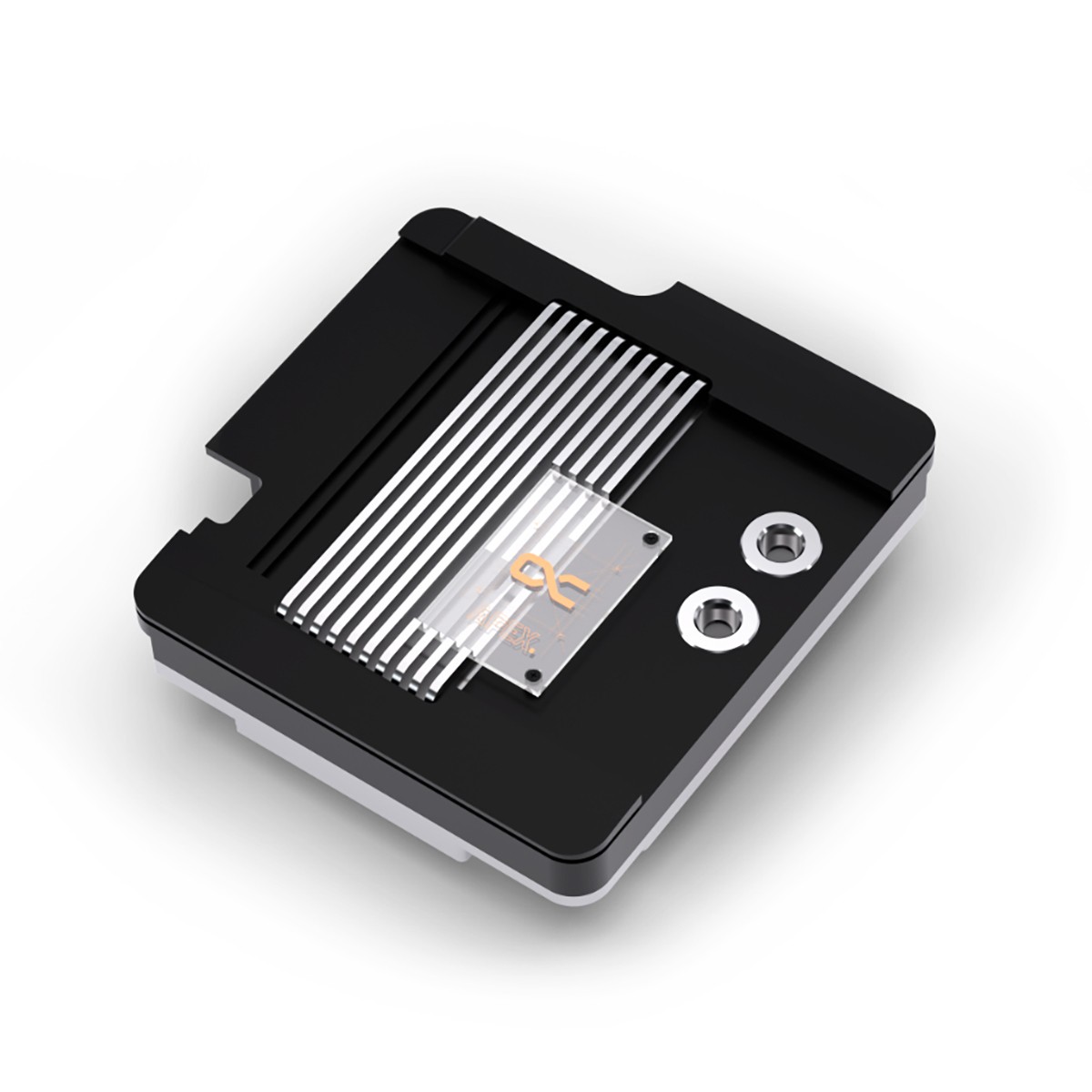

The Apex Monoblock is the ideal cooling solution for maximum performance, combined with an elegant design that is perfectly matched to the motherboard. Developed specifically for the motherboard, the monoblock cools the CPU, the voltage regulators (VRMs), as well as the M.2 NVMe SSD located below the CPU socket. All key motherboard components are actively cooled through the monoblock's water block. Compatibility: ASUS ProArt X870E-Creator WiFi (AM5) Thchnical Data Dimensions (L x W x H) (in mm) 174.40 x 164.50 x 51.50 Material cooler: Chome-plated copper (Cu-HCP) Material cover: Aluminium (AlMg0,7Si) Material cooler top: Plexi (LXN865) Material terminal Threads: Brass (CuZn39Pb3) Material connection thread: 2x G 1/4 Brass (CuZn39Pb3) Maximum torque G1/4 thread (in Nm): 1.00 Maximum torque M3 thread (in Nm): 0.48 Maximum torque M4 thread (in Nm: 1.12 Maximum operating temperature (in C): 60 Recommended working temperature (in C): 20 Minimum operating temperature (in C): -20 Maximum tested pressure (in bar): 2.00 Recommended working pressure (in bar): 0.00 - 1.00 Thickness of cooling fins (in mm): 0.40 Distance between cooling fins (in mm):0.40
