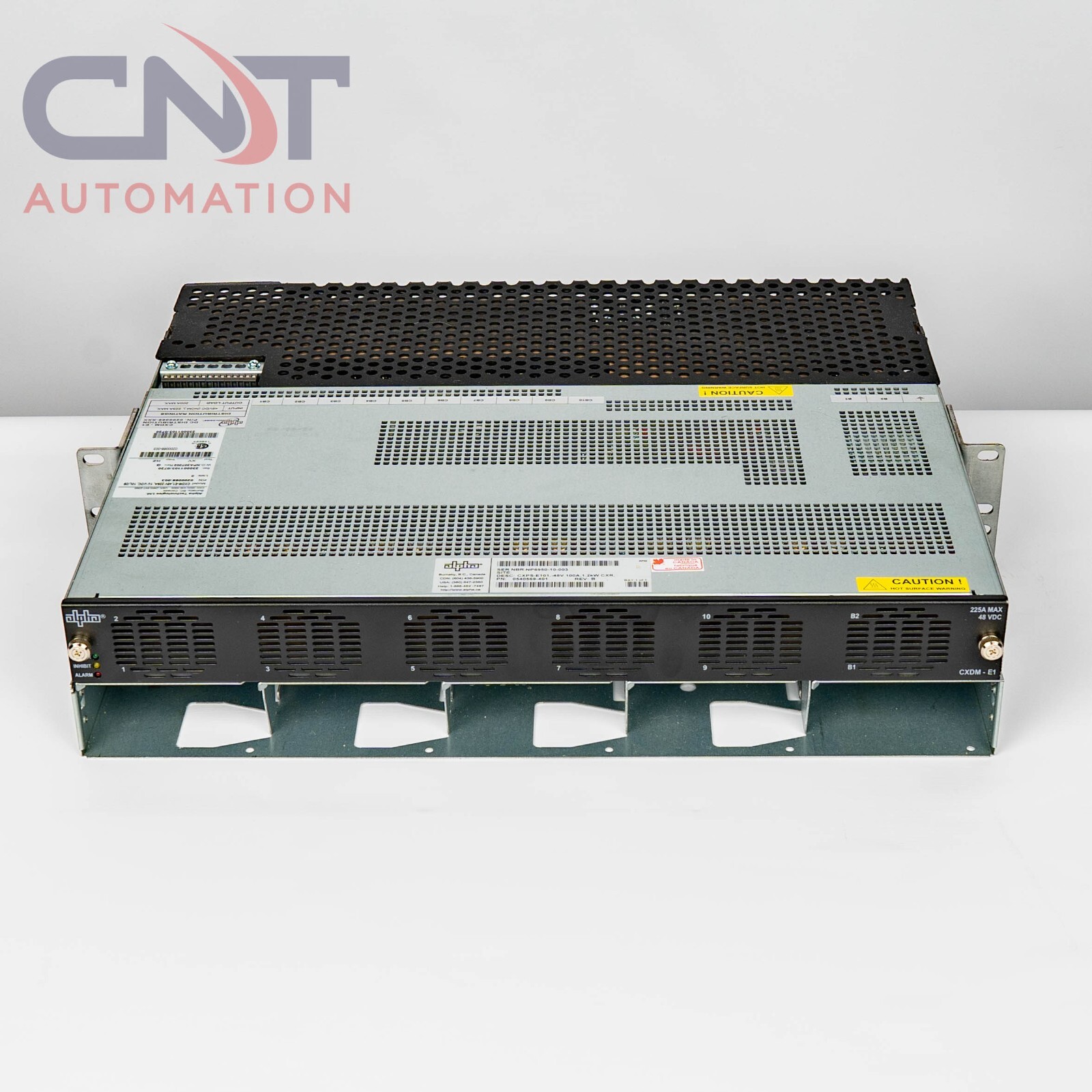

Visit Our StoreVisit Our Rental StoreAlpha Technologies CXDM-E1 Mainframe With CXCM1 HP ControllerItem Condition:New

We classify new items to be units that have not been used and showno signs of previous use. New items may not include the originalpackaging.

Item Description

Cordex CXCM1 HP Controller New in Original Packaging. Unit is new unused inventory from a previous project. Ships from Canada, Ontario with an expedited service. For questions please contact us. We appreciate your business!



Product Features:

The Alpha CXDM-E1 is the perfect distribution solution for space constrained applications. The 225A capacity panel is configured for ten load breaker positions (125A per position) and two battery breakers (125A per position). In addition, two pole-ganged breakers can be utilized to increase breaker capacity to 200A. Plug-in bullet type breakers are utilized in the design for convienience and ease of installation.

The CXDM-E1 has been designed for seamless integration with Cordex 48V-1.2kW and 48V-2.0kW rectifiers. A DB-25 interface is also provide to enable integration with Cordex CXCi(+) and CXCM1 controllers. The compact size of the panel and the rectifier systems can easily be integrated into equipment racks taking minimal capacity distribution center with 10 load breaker positions

Ultra compact, high density, utilizing standard plug-in circuit breakers

Integrated low voltage battery disconnect and 2 breakers for battery protection

Universal 19/23" rack mounting

Compact 1RU high, maximizing space for revenue generating equipment

Integrated controller I/O for 1.2kW Cordex rectifiers, simplifying installation

Modular, hot swappable controller for use with Alpha's HP 1.2kW rectifier platform

Advanced next-generation control and monitoring platform for Alpha's Cordex product family

Integrated USB host for local firmware upgrades, configuration updates and system backup/restoration

Seamless integration of multiple energy systems allowing comprehensive management, monitoring & control

Integrated OLED display with numerous features including local monitoring and configuration management



Features



Electrical











User Interface:

Display: Integrated OLED display with selection and navigation buttons. Features: ALCO, backup, restore, s/w and OS upgrade, display rotate, reset, IPv4/6 address view, system(s) status display

Input Voltage:

10 to 60 Vdc



System I/O



Web UI: Embedded web based UI accessed via Ethernet using internet browser (Firefox, Chrome, IE)

Alarm Relays:

4 (3 + 1 internal on some models)*



Voltage Inputs:

1 + 1 internal



Audio: Built in multi-tone speaker



Temp Inputs:

2



LED Indicators: System OK: Green Minor: Amber Major/Critical:



Current Inputs:

1 (0 + 1 internal on some models)



Digital Inputs:

2 (1 + 1 internal on some models)



Mechanical







Battery:

• Automatic battery test

• Battery runtime and capacity indication

• Charge current control

• Temperature compensation

• Equalize

• Absorption charge settings with entry/exit criteria



Mounting:

Modular controller for 1.2kW series shelf systems



Dimensions:

mm: 44H x 88W x 318D

inches: 1.73H x 3.5W x 12.5D



Weight:

0.45kg (1.0 lb)









System:

• User management – Admin + 5 users with configurable access rights

• Advanced inventory management with custom inventory items

• User configurable alarms and custom data

• Advanced equation editing with timers and counters

• Software, firmware, and configuration file upgrade management

• CAN Bus interface to Cordex power electronics and peripherals

-  Custom data logging and performance monitoring

-  Powersave feature for optimizing system efficiency



Environmental



Temperature:

-40 to +65°C (-40 to 149°F)



Humidity:

0 to 95% RH non-condensing



Agency Compliance



Safety:

CSA C22.2 No 60950-1

CE Marked





SNMP: SNMP v3 via Ethernet. Compatible with subscription and discovery

TCP/IP: IPv4 or IPv6

Email: SMTP via Ethernet



EMC:

EN55022:2010 EN55024:2010





Communication Ports:

CAN: Port accessbile on 1.2kW shelf system for connection to CXC HP periperals Ethernet: 1x Port (front); 10/100 Base T with full/half duplex; Auto MDI/MDI-X USB: 1x USB 2.0 Port (front)



Emissions:

CFR47 (FCC) Part 15 Class B EN55022 (CISPR 22) Class B

C-Tick





Immunity:

EN 55024

EN 61000-4-2/3/4/5/6/8



NEBS:

NEBS Level 3 (In Process)





Package Includes

Alpha Technologies CXDM-E1 Mainframe
