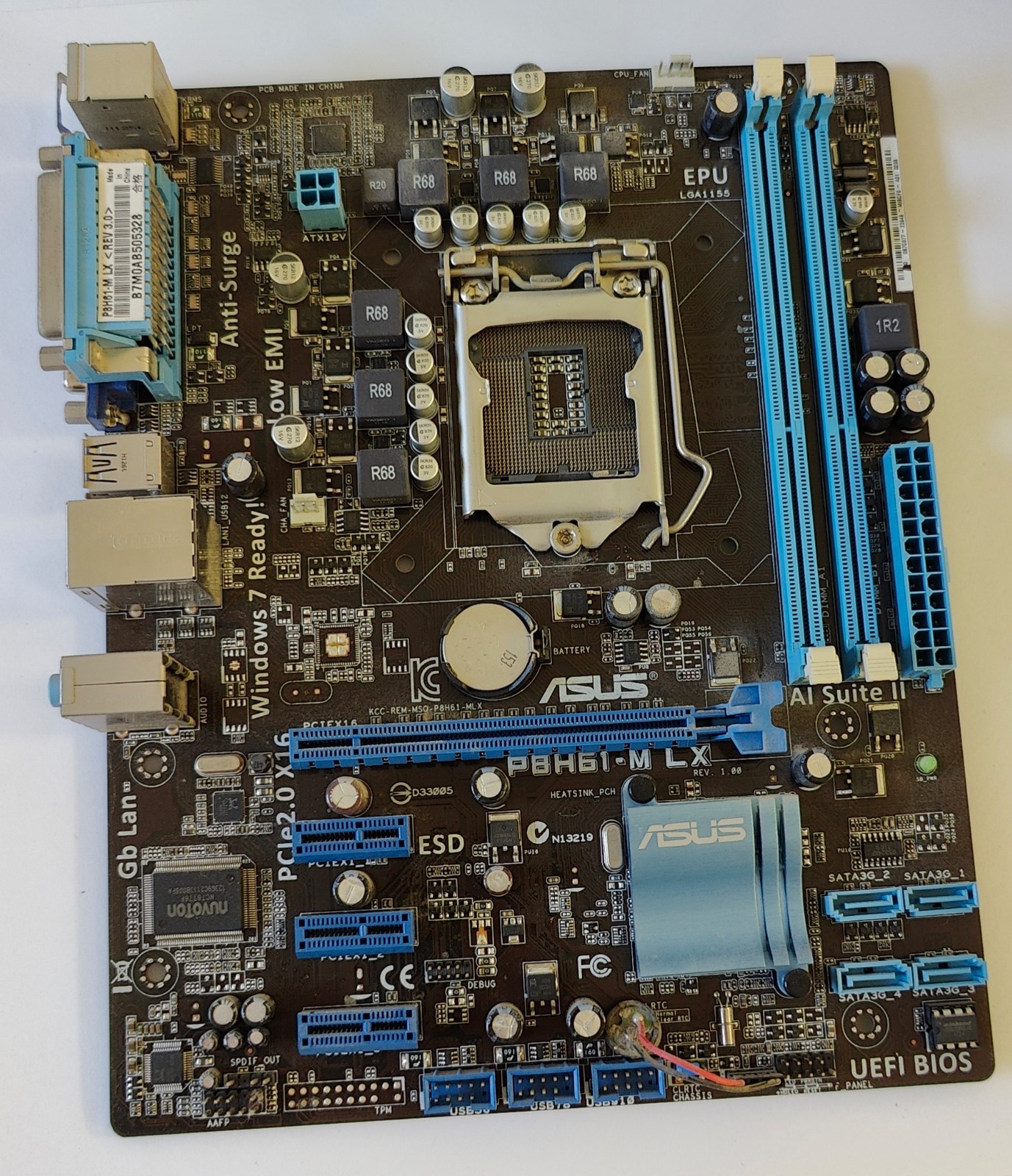

The ASUS P8H61-M LX is a budget-friendly uATX motherboard based on the Intel H61 chipset. It features the LGA 1155 socket, making it compatible with 2nd and 3rd Generation Intel Core processors (such as the i3, i5, and i7). It supports up to 16GB of DDR3 RAM and uses PCIe 3.0 for graphics expansion.
Core Specifications

• CPU Socket: LGA 1155
• Chipset: Intel H61
• Memory Support: 2x DDR3 DIMM slots supporting up to 16GB (speeds up to 1333/1066 MHz natively, and up to 2200 MHz via overclocking depending on the exact sub-model)
• Expansion Slots: 1x PCIe 3.0/2.0 x16, 3x PCIe 2.0 x1
• Storage: 4x SATA 3 Gb/s ports
• Form Factor: uATX (Micro-ATX)

Key Features

• BIOS: Features the user-friendly ASUS UEFI BIOS, enabling mouse controls and graphical settings.
• Integrated Video: Includes VGA (D-Sub) and DVI ports for processors equipped with Intel integrated graphics.
• Audio: 8-Channel High Definition Audio.
