Why bought from us?
Dear customers, if you read our this page, please continue to have a glance at me, I think you will be glad to select our items. We test the motherboard, check the BIOS, enter to window OS, run CPU-Z and 3DMark, to ensure all the parts no defect or DOA. You can buy it at ease.About the package:
We'll seal combo parts in an anti-electrostatic plastic bag with anti-blushing agent, then put it into a safe box.About the warranty:
Our parts have 90 days warranty, please note the following reason we don't accept returns:
A. Bought a wrong item.
B. Ruin the item on purpose.
C. The parts burned by technical mistake when assemble the PC.
D. The parts didn't buy from us. All our parts have warranty label and hidden marks on them, to distinguish our items from others'.
Technical Tips:
A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C. If the motherboard can't run correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.(Please view the following picture)

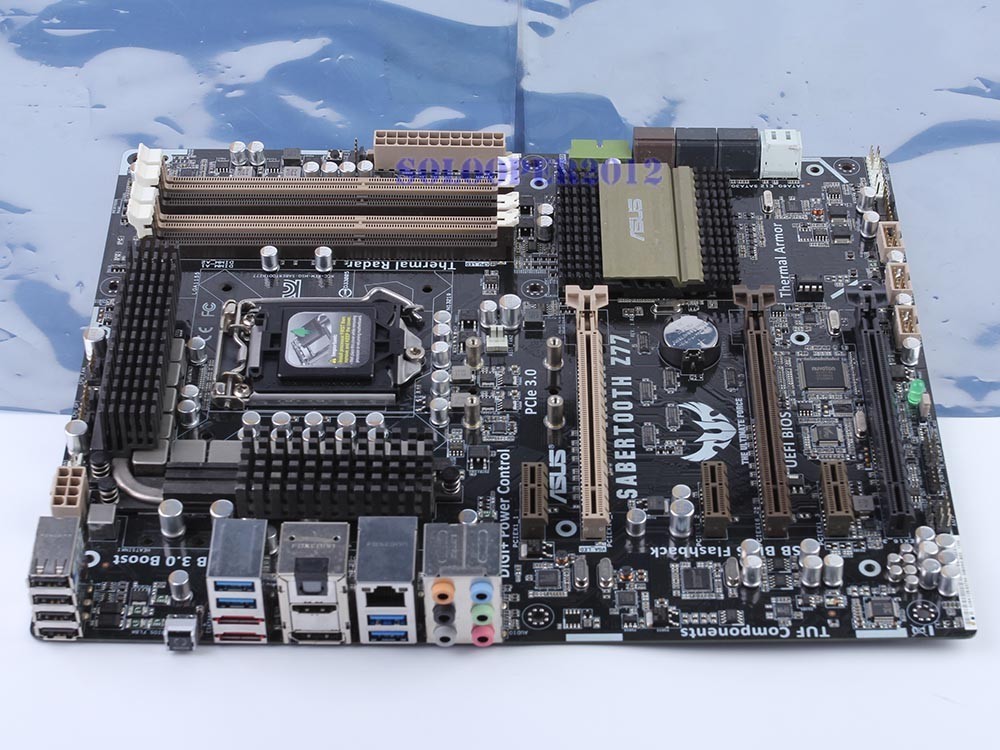

Motherboard specifics:
Packet Included:
1 x motherboard.
1 x I/O back panel.
2 x generic SATA II cables.Product Details:
CPU
Intel® Socket 1155 for 3rd/2nd Generation Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® Z77
Memory
4 x DIMM, Max. 32GB, DDR3 MHz Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1200 at 60 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 at 60 Hz
Maximum shared memory of 1696 MB
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2
1 x PCIe 2.0 x16 (x4 mode, black) *3
3 x PCIe 2.0 x1
Storage
Intel® Z77 chipset :
2 x SATA 6Gb/s port(s), brown
4 x SATA 3Gb/s port(s), black
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *4
ASMedia® ASM1061 controller : *5
2 x SATA 6Gb/s port(s), gray
2 x eSATA 6Gb/s port(s), red
LAN
Intel® 82579V, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
USB Ports
Intel® Z77 chipset : *6
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
ASMedia® ASM1042 controller : *6
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel® Z77 chipset :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Special Features
TUF ENGINE! Power Design :
- 8 +4 +2 Digital Phase Power Design
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility
Ultimate COOL! Thermal Solution :
- TUF Thermal Armor
- TUF Thermal Radar
Safe & Stable! Guardian Angel :
- Dust Defender
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite II
- USB Charger+
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Back I/O Ports
1 x DisplayPort
1 x HDMI
2 x eSATA 6Gb/s
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
4 x Optional Fan connector(s) (4 -pin)
2 x Assistant Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Clear CMOS jumper(s)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1: LucidLogix Virtu MVP supports Windows 7 operating systems.
*2: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors.
*3: The PCIe 2.0 x16 slot shares bandwidth with PCIe 2.0 x1_1 slot, PCIe 2.0 x1_2 slot and PCIe 2.0 x1_3 slot. The PCIe 2.0 x16 slot default setting is in x1 mode.
*4: Supports on Intel® Core™ processor family with Windows 7 operating systems.
*5: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
*6-1: Supports ASUS USB 3.0 Boost UASP Mode.
*6-2: The USB 3.0 ports only support Windows® 7 or later versions.
