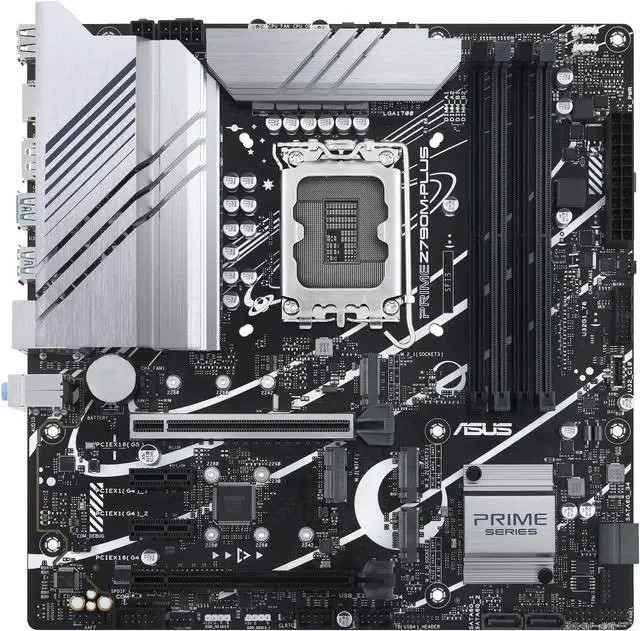

ModelPRIME Z790M-PLUS
CPUIntel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
ChipsetIntel® Z790 Chipset
Memory4 x DIMM, Max. 192GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II
Graphics1 x DisplayPort1 x HDMITM port
Expansion SlotsIntel® Core™ Processors (14th & 13th & 12th Gen)1 x PCIe 5.0 x16 slotIntel® Z790 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)2 x PCIe 4.0 x1 slots
StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s portsIntel® Core™ Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® Z790 ChipsetM.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports
Ethernet1 x Intel® 1Gb EthernetASUS LANGuard
Wireless & BluetoothM.2 slot only (Key E, CNVi & PCIe)
USBRear USB (Total 8 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)1 x USB 3.2 Gen 2 port (1 x Type-A)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers
Back Panel I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)1 x USB 3.2 Gen 2 port (1 x Type-A)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMITM port1 x Intel® 1Gb Ethernet port3 x Audio jacks
Internal I/O ConnectorsFan and cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headers
Power related1 x 24-pin Main Power connector1 x 8-pin + 12V Power connector1 x 4-pin + 12V Power connector
Storage related3 x M.2 slots (Key M)4 x SATA 6Gb/s ports
USB1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x M.2 slot (Key E)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4®) header
Form FactormATX Form Factor9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)Sold AS-IS. No refunds or returns.
