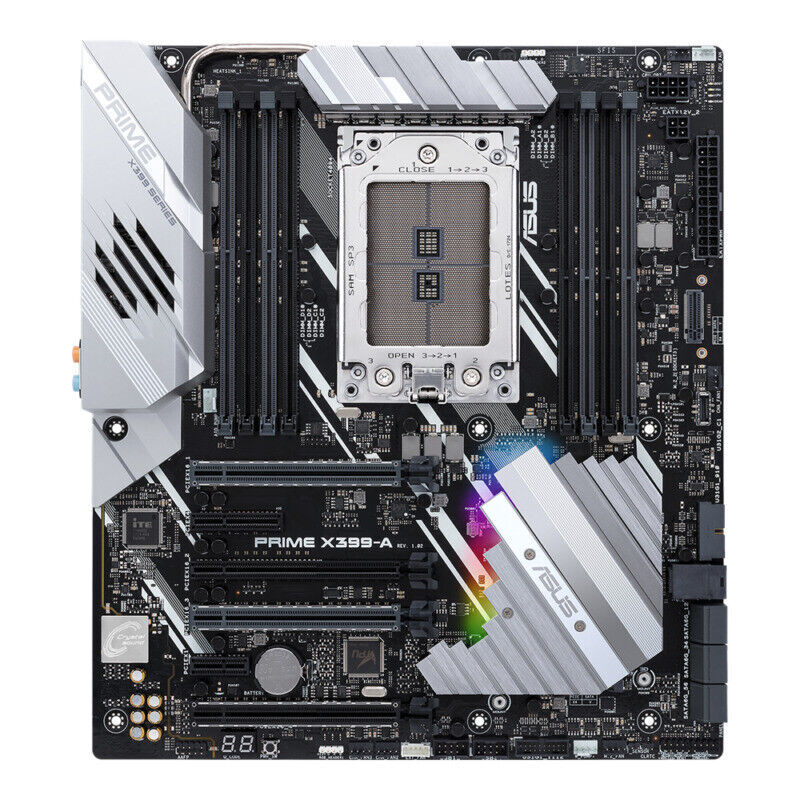

ASUS PRIME X399-A Motherboard For AMD Threadripper TR4 8×DDR4 E-ATX 2×M.2 RJ45

CPU

AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen™ Threadripper™ Processors

Chipset

AMD X399

Memory

AMD Ryzen™ Threadripper™ Processors

8 x DIMM, Max. 128GB, DDR4 MHz ECC and non-ECC, Un-buffered Memory

Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI® Technology

Supports NVIDIA® 3-Way SLI® Technology

Supports NVIDIA® 2-Way SLI® Technology

Supports AMD Quad-GPU CrossFireX™ Technology

Supports AMD 3-Way CrossFireX™ Technology

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

AMD Ryzen™ Threadripper™ Processors

4 x PCIe 3.0 x16 (single@x16, dual@x16/x16, triple@x16/x16/x8 mode) *

AMD X399 chipset

1 x PCIe 2.0 x4 (max at x4 mode)

1 x PCIe 2.0 x1

Storage

AMD Ryzen™ Threadripper™ Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x U.2 port

AMD X399 chipset :

6 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

LAN

Intel® I211-AT

ASUS Turbo LAN Utility

ASUS LAN Guard

Audio

Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB (Line-out at rear) and 113 dB SNR recording input (Line-in)

Audio Feature :

- DTS Connect

- DTS Headphone:X

- Optical S/PDIF out port(s) at back panel

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

- Unique de-pop circuit: Reduces start-up popping noise to audio outputs

- EMI protection cover to prevent electrical noise to affect the amplifier quality

Separate layer for left and right track, ensuring both sound deliver equal quality

USB Ports

AMD Ryzen™ Threadripper™ Processors :

8 x USB 3.1 Gen 1 port(s) (8 at back panel, , Type-A)

AMD X399 chipset :

1 x USB 3.1 Gen 2 port(s) (1 at mid-board)

AMD X399 chipset :

4 x USB 3.1 Gen 1 port(s) (4 at mid-board)

AMD X399 chipset :

4 x USB 2.0 port(s) (4 at mid-board)

ASMedia® USB 3.2 Gen 2 controller :

2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM)

Special Features

OC Design - ASUS PRO Clock Technology

- Full BCLK range for extreme overclocking performance

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :

- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App

AURA :

- Aura RGB Strip Headers

- Aura Lighting Effects Synchronization with compatible ASUS ROG devices

ASUS Exclusive Features :

- USB BIOS FlashBack™

- AI Suite 3

- Ai Charger

- Onboard Button : Power

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

- Turbo LAN

- Crystal Sound 3

- PC Cleaner

ASUS Quiet Thermal Solution :

- Stylish Design Heat-pipe solution

- Stylish Fanless Design with M.2 Heat-sink solution

- ASUS Fan Xpert 4

ASUS EZ DIY :

- ASUS EZ Flash 3

- ASUS USB BIOS FlashBack™

- ASUS UEFI BIOS EZ Mode

- Multi-language BIOS

ASUS Q-Design :

- ASUS Q-Shield

- ASUS Q-Code

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Connector

Gaming Aesthetics :

- 3D printing friendly

- AURA-RGB Lighting

M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)

Back I/O Ports

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 2 (teal blue)Type-A + USB Type-CTM

8 x USB 3.2 Gen 1 (blue)

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x USB BIOS FlashBack™ Button(s)

Internal I/O Ports

1 x 3-pin Cover fan (COV_FAN) connector

1 x Q_Code

1 x U.2 port

2 x Aura RGB Strip Header(s)

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x M.2_FAN connector

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x W_PUMP+ connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x 5-pin EXT_FAN(Extension Fan) connector

1 x Thermal sensor connector(s)

1 x Power-on button(s)

1 x Clear CMOS button(s)

1 x USB 3.2Gen 2 front panel connector

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Operating System

Windows® 10 64-bit

Form Factor

Extended ATX Form Factor

12 inch x 10.6 inch ( 30.5 cm x 26.9 cm )

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
