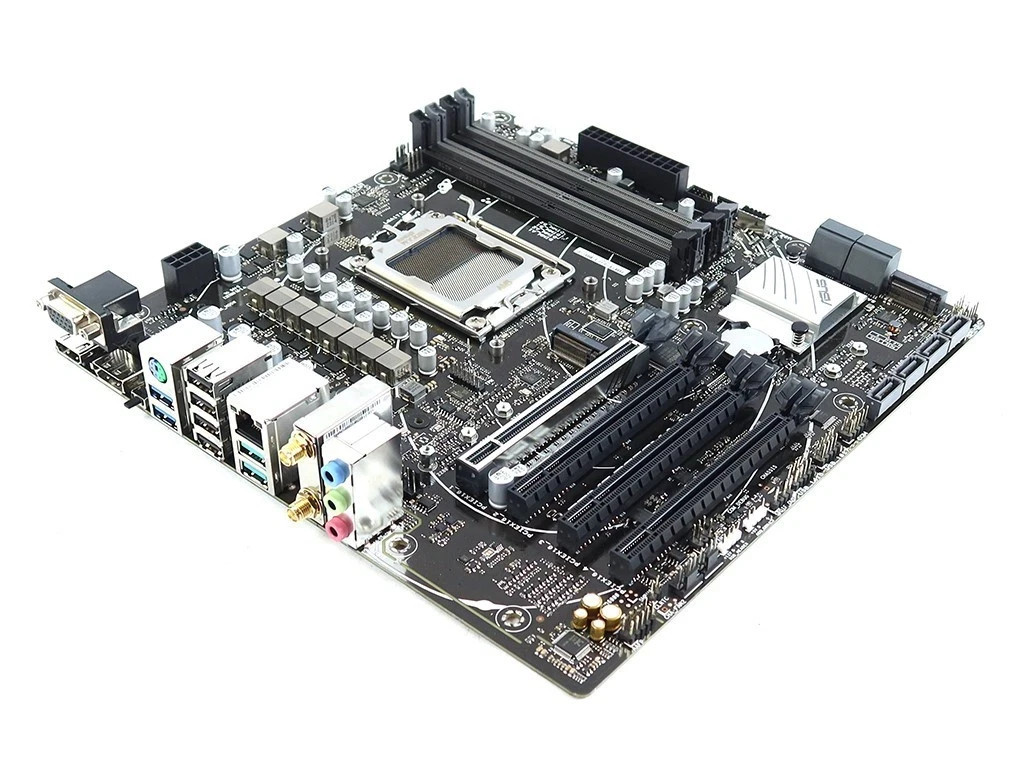

Asus PRIME B650M-A AX II AMD Chipset B650 Socket AM5 DDR5 HDMI VGA DisplayPort SATA 6Gb/s mATX Desktop Motherboard MB1ED0-A01.Model: PRIME B650M-A AX IIPart Number: MB1ED0-A01Compatible Part Numbers: MB1ED0-A08 MB1ED0-A1A MB1ED0-A19Chipset: AMD B650Socket: AMD AM5Compatible/Supported CPU: Supports AMD Ryzen 7000 / 8000 Series Desktop ProcessorsMax Supported Memory: 192GBNumber of Memory Slots: 4Memory Type: DDR5 SDRAMSpeed: 7600+ (OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800MHzStorage Interface: SATA 6Gb/sRAID Support: 0, 1, 10Bluetooth Standard: Bluetooth 5.2Wireless Lan Support: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency bandNetwork/Communications: Realtek 2.5Gb EthernetAudio: Realtek 7.1 Surround Sound High Definition Audio CODECConnectors: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 3x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector, Storage related, 1x USB 3.2 Gen 1 connector (supports USB Type-C ), 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2x USB 2.0 headers support 4 additional USB 2.0 ports, 3x Addressable Gen 2 headers, 1x Aura RGB header, 1x Clear CMOS header, 1x COM Port header, 1x Front Panel Audio header (AAFP), 1x S/PDIF Out header, 1x Speaker header, 1x SPI TPM header (14-1pin), 1x 10-1 pin System Panel headerInput/Output Ports: 2x USB 3.2 Gen 2 ports (2 x Type-A), 2x USB 3.2 Gen 1 ports (2 x Type-A), 4x USB 2.0 ports (4 x Type-A), 1x DisplayPort, 1x VGA port, 1x HDMI port, 1x Wi-Fi Module, 1x Realtek 2.5Gb Ethernet port, 3x Audio jacks, 1x BIOS FlashBack button, 1x PS/2 Keyboard/Mouse combo portExpansion Slots: 2x M.2 slots (Key M), 8x SATA 6Gb/s ports, 4x PCIe 4.0 x16 slotsForm Factor: mATXType: Desktop MotherboardSupported Operating System: Windows 11, Windows 10 64-bit
Additional Specifications:Graphics
1x DisplayPort
1x VGA port
1x HDMI port
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports max. 8K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
CPU Support:
Socket AM5
VendorCPU ModelFrequencyWattageL3 CacheCoreSteppingAMDRyzen 7 PRO 8700GE3.65GHz35W16MB8AMDRyzen 7 8700G4.2GHz65W16MB8B2AMDRyzen 7 PRO 8700G4.2GHz65W16MB8AMDRyzen 7 8700F4.1GHz65W16MB8AMDRyzen 5 PRO 8600GE3.9GHz35W16MB6AMDRyzen 5 8600G4.35GHz65W16MB8B2AMDRyzen 5 PRO 8600G4.35GHz65W16MB8AMDRyzen 5 8500GE3.4GHz35W16MB6AMDRyzen 5 PRO 8500GE3.4GHz35W16MB6AMDRyzen 5 8500G3.55GHz65W16MB6B2AMDRyzen 5 PRO 8500G3.55GHz65W16MB6B2AMDRyzen 5 8400F4.2GHz65W16MB6AMDRyzen 3 8300GE3.5GHz35W8MB4AMDRyzen 3 PRO 8300GE3.5GHz35W8MB4AMDRyzen 3 PRO 8300G3.45GHz65W8MB4B2AMDRyzen 3 8300G3.45GHz65W8MB4B2AMDRyzen 9 7950X4.5GHz170W64MB16AMDRyzen 9 PRO 79453.7GHz65W64MB12AMDRyzen 9 7950X3D4.2GHz120W128MB16AMDRyzen 9 7900X3D4.4GHz120W128MB12B2AMDRyzen 9 7900X4.7GHz170W64MB12AMDRyzen 9 79003.7GHz65W64MB12B2AMDRyzen 7 7800X3D4.2GHz120W96MB8B2AMDRyzen 7 PRO 77453.8GHz65W32MB8AMDRyzen 7 7700X4.5GHz105W32MB8AMDRyzen 7 77003.8GHz65W32MB8B2AMDRyzen 5 PRO 76453.8GHz65W32MB6AMDRyzen 5 7600X4.7GHz105W32MB6AMDRyzen 5 76003.8GHz65W32MB6B2AMDRyzen 5 7500F3.7GHz65W32MB6
