Item description

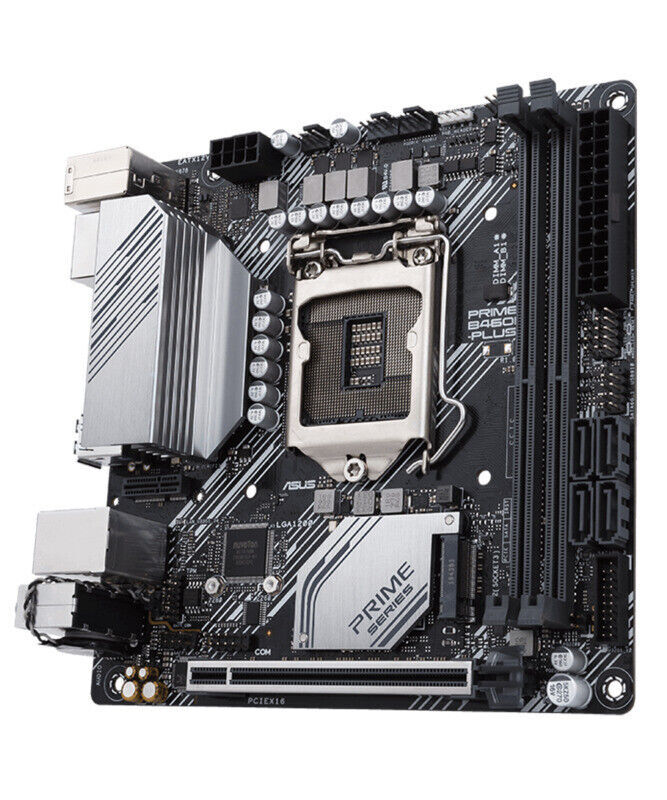

ASUS PRIME B460I-PLUS Motherboard Intel B460 LGA 1200 2 x DDR4 M.2 Mini ITX HDMI
CPU
Intel® Socket 1200 - Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® 14 nm processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 is supported by CPU type.
Chipset
Intel® B460
RAM
Intel® B460 Chip
2 x DIMM, supports up to 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*
Supports Intel® Extreme Memory Profile (XMP) technology
Graphical display
Integrated Graphics Processor - Supports Intel® UHD Graphics
1 x DisplayPort 1.4
1 x HDMI 1.4b
1 x DVI-D
*Display core specifications may vary between CPU types.
Expansion slot
16-channel CPU-
1 x PCIe 3.0/2.0 x16 expansion card slot (x16 mode)
Storage function (subject to shipment)
Supports a total of 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® B460 Chip :
1 x M.2 Socket 3 slot, support M key, 2260/2280 type storage device (PCIE mode)
4 x SATA 6Gb/s ports
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology
Intel® Optane™ Memory Technology
Network features
Realtek® RTL8111H, 1 x Gigabit LAN, Supports LANGuard Network Security
Wireless connections
M.2 slot only (Key E) (supports PCIe interface)*
*Wi-Fi module sold separately.
Sound effect
Realtek ALC887 7.1ch Hi-Fi Audio Chip*
- Support: Audio interface detection (Jack-detection), 24-Bit/192kHz playback
Audio function:
- Audio dividing line design
- Layered design of left and right channels
- High quality Japanese audio capacitors
* It needs to cooperate with the HD Audio module on the front panel of the chassis to support 8-channel audio output.
USB interface
Back USB ports (6 in total)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB port (4 in total)
2 x USB 3.2 Gen 1 (up to 5Gbps) ports
2 x USB 2.0 ports
Software function
ASUS Exclusive Software
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS-specific features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-Connector
- ASUS Q-DIMMs
- ASUS Q-Slot
AURA Sync
- Aura RGB header(s)
Backplane I/O Connectors
1 x PS/2 mouse and keyboard interface
1 x DisplayPort connector
1 x HDMI port
1 x LAN (RJ45) port
4 x USB 3.2 Gen 1 ports Type-A
2 x USB 2.0 ports
3 x audio jacks
Internal I/O Interface
1 x CPU Fan Header (1 x 4-pin)
1 x Chassis Fan Header
1 x AAFP Front Audio Header
1 x USB 3.2 Gen 1 (up to 5Gbps) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 connector to expand 2 external USB 2.0 ports
1 x M.2 Socket 3 slot,
1 x RGB strip header
1 x SPI TPM header
4 x SATA 6Gb/s device connection sockets
1 x 24-pin EATX motherboard power socket
1 x 8-pin ATX 12V motherboard power socket
1 x M.2 with E key for Wi-Fi module
1 x System Panel Socket
1 x AIO_Water Pump Connector
1 x Clear CMOS Jumper
1 x Serial Connection Socket (COM)
1 x Speaker Connector
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
OS
Windows® 10 64-bit
Dimensions
Mini ITX ; 6.7 in x 6.7 in ( 17.02 cm x 17.02 cm )
Included
1 x motherboard.
2 x SATA II cables.
1 x I/O shield.
