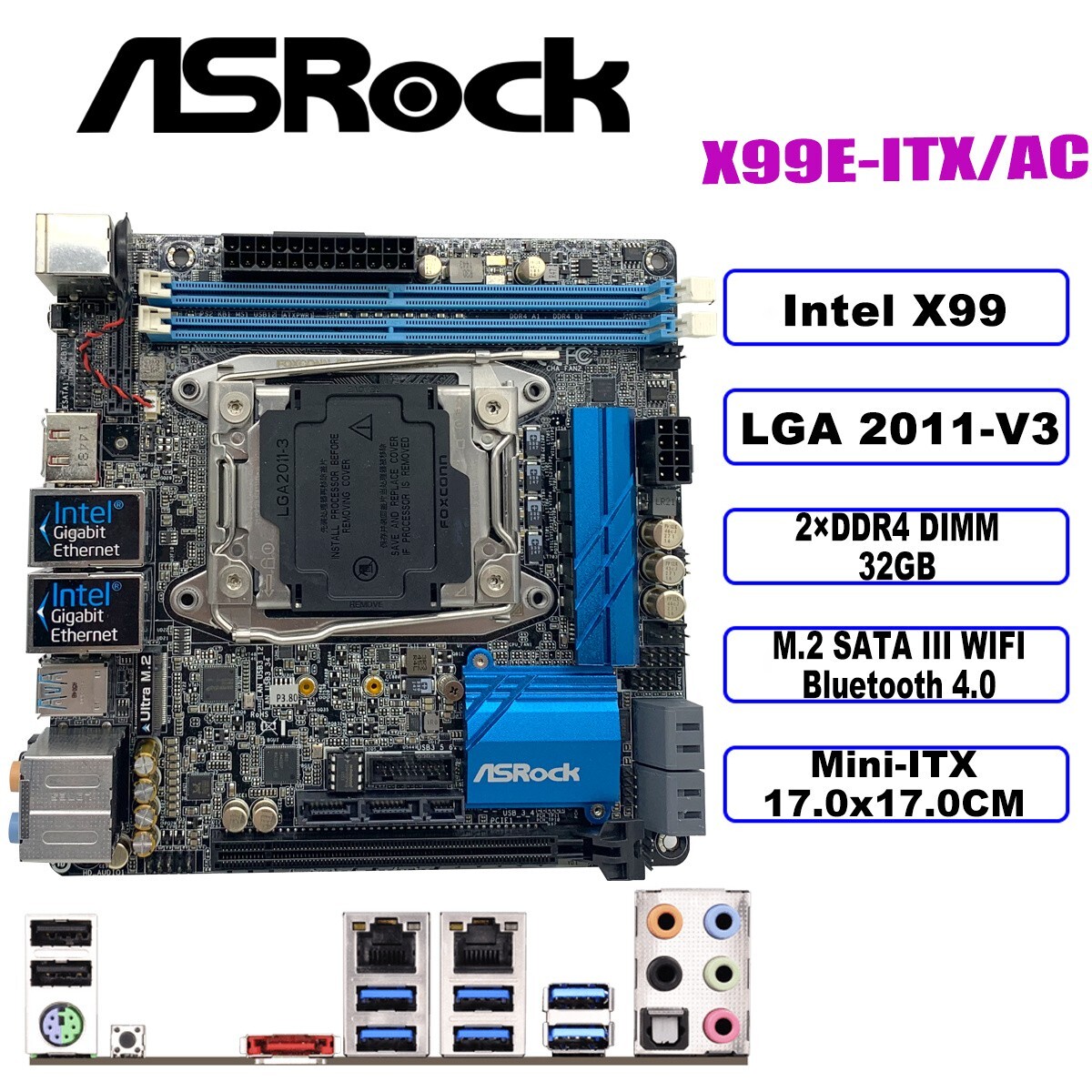

ASRock X99E-ITX/ac Motherboard Mini-ITX Intel X99 LGA2011-3 DDR4 SATA3 M.2 SPDIF
Note: The motherboard contains a button battery, which will be sent along with the motherboard.
Compatible Model:
ASRock X99E-ITX/ac
Features: - Original quality not include retail box or parts. - 100% tested working before shipping. - Free OEM I/O shield as a gift, updated the newest BIOS. - Without CMOS battery for safe sending. - Please check and confirm the model of your device before purchase. - We provide 90 days warranty, the buyer pays the postage of the returned package.
CPU - Supports Intel® Core™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket - Digi Power design - 6 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology - Supports Untied Overclocking Technology
Chipset - Intel® X99
Memory - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory - Supports non-ECC RDIMM (Registered DIMM) - Supports DDR4 ECC, un-buffered memory/RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket - Max. capacity of system memory: 128GB (with Core™ i7 CPU Broadwell-E) or 64GB (with Core™ i7 CPU Haswell-E) or 256GB (With Xeon® CPU)* - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. ** Please refer to Memory Support List on ASRock's website for more information.
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment
Graphics - n/a
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - Nichicon Fine Gold Series Audio Caps - TI® NE5532 Premium Headset Amplifier (Supports up to 600 Ohm headsets) - Supports DTS Connect
LAN - Gigabit LAN 10/100/1000 Mb/s - 1 x Giga PHY Intel® I218V, 1 x GigaLAN Intel® I211AT - Supports Intel® Remote Wake Technology (on Intel® I218V) - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Dual LAN with Teaming - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless LAN - Intel® 802.11ac WiFi Module (Free Bundle) - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 867Mbps - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 4.0 / 3.0 + High speed class II
Slots - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) - 1 x Vertical Half-size Mini-PCI Express Slot: For WiFi + BT Module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 13), NCQ, AHCI and Hot Plug* - 1 x SATA Express 10 Gb/s Connector** - 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) *RAID is supported on SATA3_0 ~ SATA3_5 ports only. **shared with SATA3_4, SATA3_5 Support to be announced.
Connector - 1 x Chassis Intrusion Header - 1 x TPM Header - 1 x Power LED Header - 1 x CPU Fan Connector (4-pin) (Supports 3-pin/4-pin Smart Fan Speed Control) - 2 x Chassis Fan Connectors (2 x 4-pin) (Support 3-pin/4-pin Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port - 1 x Optical SPDIF Out Port - 1 x eSATA Connector - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x USB 3.1 Gen2 Type-A Ports (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) - 4 x USB 3.1 Gen1 Ports (Intel® X99) (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Switch - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
Hardware Monitor - CPU, Chassis temperature sensing - CPU, Chassis Fan Tachometer - CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU, Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages
Form Factor - Mini-ITX Form Factor - 2oz Copper PCB - 8 Layer PCB - High Density Glass Fabric PCB
OS - Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Package Included:
1PCS ASRock X99E-ITX/ac Motherboard Mini-ITX 1PCS I/O Shield Backplane 2PCS SATA Cable
