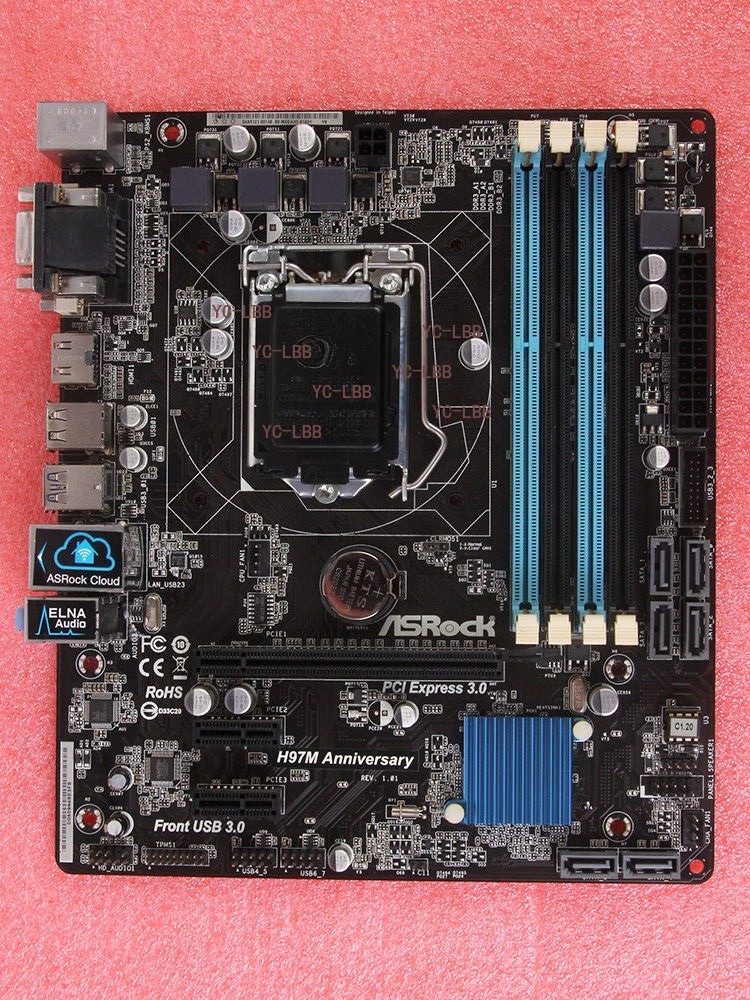

Official specification:
CPU
- Supports 5thGeneration Intel®Core™ i7/i5/i3/Pentium®/Celeron®Processors (Socket 1150)
- Supports New 4thand 4thGeneration Intel®Xeon®/Core™ i7/i5/i3/Pentium®/Celeron®Processors (Socket 1150)
- Supports Intel®Turbo Boost 2.0 Technology
Chipset
- Intel®H97
Memory
- Dual Channel DDR3/DDR3L Memory Technology
- 4 x DDR3/DDR3L DIMM Slots
- Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel®Extreme Memory Profile (XMP) 1.3 / 1.2
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows®32-bit OS. For Windows®64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 64Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 support
- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment
Graphics
- Supports Intel®HD Graphics Built-in Visuals : Intel®Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel®InTru™ 3D, Intel®Clear Video HD Technology, Intel®Insider™, Intel®HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 512MB*
- Three graphics output options: D-Sub, DVI-D and HDMI Ports
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 1920x1200 at 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 at 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 at 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
*The size of maximum shared memory may vary from different operating systems.
**Intel®HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
***Due to chipset limitation, the Blu-ray playback of Intel®HD Graphics is only supported under Windows®8 / 8 64-bit / 7 / 7 64-bit.
****Intel®InTru™ 3D is only supported under Windows®8 / 8 64-bit / 7 / 7 64-bit.
Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
- 2 x PCI Express 2.0 x1 Slots
SATA3
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel®Rapid Storage Technology 13 and Intel®Smart Response Technology), NCQ, AHCI and Hot Plug
Storage
- 2 x Rear USB 3.1 Gen1 ports by Intel®Z77, support USB 1.0/2.0/3.0 up to 5Gb/s
- 2 x Rear USB 3.1 Gen1 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.1 Gen1 header by Intel®Z77 (supports 2 USB 3.1 Gen1 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s
Connector
- 1 x TPM Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Unique Feature
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock UEFI Guide
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Micro ATX Form Factor
- Solid Capacitor design
- High Density Glass Fabric PCB
OS
- Microsoft®Windows®10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
