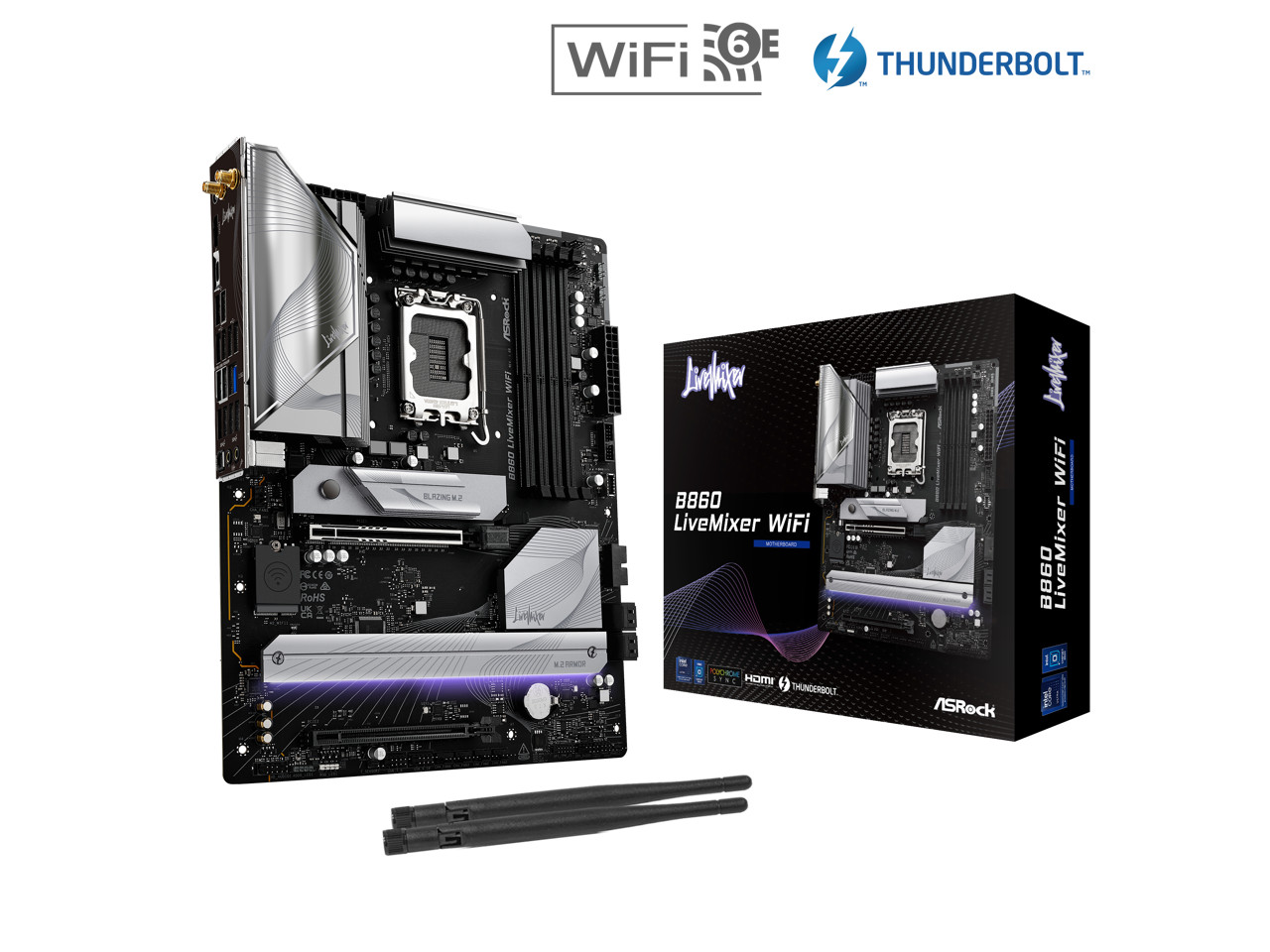

Learn more about ASRock B860 LiveMixer WiFiModelBrandASRockModelB860 LiveMixer WiFiPart NumberB860 LiveMixer WiFiSupported CPUCPU Socket TypeLGA 1851CPU TypeIntel Core Ultra Processors (Series 2)ChipsetsChipsetIntel B860MemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardUp to DDR5 8666+(OC)Maximum Memory Supported256GBChannel SupportedDual ChannelMemory FeatureSupports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
Supports Clocked Unbuffered DIMM (CUDIMM)Expansion SlotsPCI Express 5.0 x16CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*PCI Express 4.0 x16Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode** Supports NVMe SSD as boot disksStorage DevicesSATA 6Gb/s4 x SATA 6Gb/sM.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode** Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disksSATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesOnboard AudioAudio ChipsetRealtek ALC1220Audio Channels7.1 CH HD Audio with Content ProtectionOnboard LANLAN ChipsetDragon RTL8125BGMax LAN Speed2.5GbpsWireless LANWi-Fi 802.11 axBluetoothBluetooth 5.3Rear Panel PortsBack I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
1 x Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
6 x USB 3.2 Gen1 Ports**
6 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)* Supports USB PD 3.0 up to 5V@3A (15W) charging
** USB32_12 support Ultra USB Power.Internal I/O ConnectorsOnboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 HeaderOther Connectors1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.Software FeatureBIOS Feature256Mb AMI UEFI Legal BIOS with GUI supportSoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant FlashWindows 11Windows 11 64-bitPhysical SpecForm FactorATXDimensions (W x L)12.0" x 9.6"Power Pin1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)FeaturesFeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- Thunderbolt 4 Type-C Port (40 Gb/s)
Rock-Solid Durability
- 12+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) for VCore
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status CheckerPackagingPackage Contents2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
