Item description

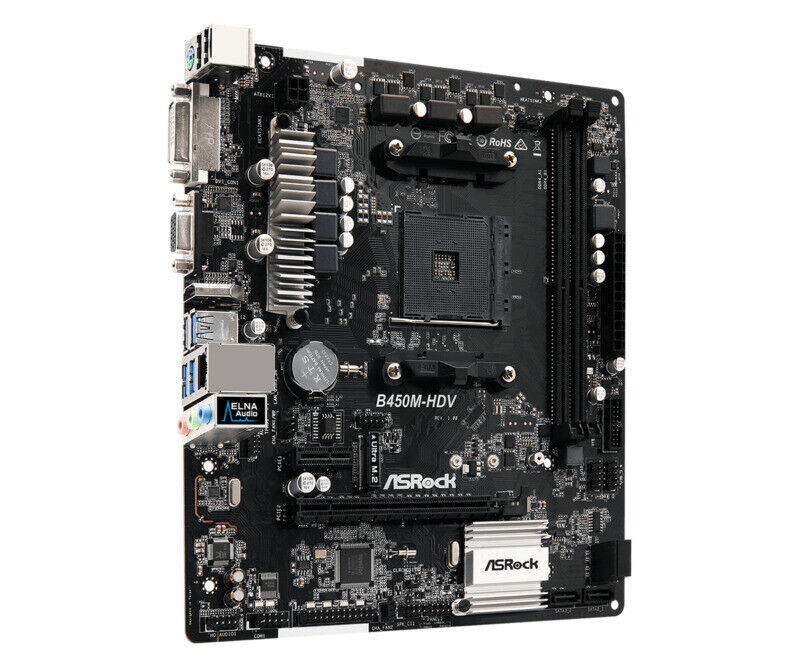

ASRock B450M-HDV Motherboard AMD B450 Socket AM4 2×DDR4 M-ATX M.2 DVI-D HDMI
CPU
- Supports AMD AM4 socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop processors
- Digitally powered
- Supports CPU up to 105W
Chipset
- AMD Promontory B450
RAM
- Dual channel DDR4 memory technology
- 2 x DDR4 memory slots
- AMD Ryzen series processors (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series APU (Cezanne) supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series APU (Renoir) supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 (non-ECC), un-buffered memory*
- Maximum system memory capacity: 64GB**
- Supports Extreme Memory Profile (XMP) memory modules
- DIMM sockets feature 15µ gold plated headers
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Support "Plug and Play"
- Compliant with ACPI 5.1, supports Wake Up Events
- Support jumper-free
- Support SMBIOS 2.3
- DRAM voltage multifunction regulator
Onboard graphics card
- Integrated AMD Radeon™ HD Vega series graphics cores on Ryzen series APUs*
- DirectX 12, Pixel Shader 5.0
- Shared memory defaults to 2GB. Supports up to 16GB of shared memory. **
- Three display output options: D-Sub, DVI-D and HDMI
- Supports simultaneous output of three monitors
- Supports HDMI, up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Support DVI-D, maximum resolution up to 1920x1200 @ 60Hz
- Supports D-Sub, up to 2048x1536 @ 60Hz
- Supports HDMI port auto-sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (Requires HDMI Compatible Display)
- Supports HDCP 1.4 via DVI-D and HDMI ports
- Supports 4K Ultra HD (UHD) playback via HDMI port
*Actual level of support depends on CPU
**To get up to 16GB of shared memory requires 32GB of system memory installed.
Sound effect
- 7.1 channel high definition audio (Realtek ALC887 audio codec)
- Support anti-surge
- ELNA Professional Audio Capacitors
local area network
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Support Wake-On-LAN function
- Support anti-lightning/anti-ESD static electricity
- Supports Energy Efficient Ethernet 802.3az
- Support PXE
Expansion slot
AMD Ryzen series processors (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode)*
AMD Ryzen series processors (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 slot (PCIE2: x8 mode)*
AMD Athlon series processors
- 1 x PCI Express 3.0 x16 slot (PCIE2: x4 mode)*
- 1 x PCI Express 2.0 x1 slot
*Support NVMe SSD boot
Storage
- 4 x SATA3 6.0 Gb/s ports, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and hot plug
- 1 x Super M.2 port, supports M Key 2242/2260/2280 type M.2 SATA3 6.0 Gb/s and M.2 PCIe modules to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir) , Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (Athlon series APU)*
*Support NVMe SSD boot
Support ASRock U.2 kit
Onboard interface
- 1 x Printer Port Header
- 1 x COM port header
- 1 x TPM header
- 1 x Chassis open warning function header and speaker header
- 1 x CPU Fan Connector ((4-pin))*
- 1 x Chassis Fan Connector ((3-pin))**
- 1 x Chassis/Water Pump Fan Connector ((4-pin)) (Smart Fan Speed Control)***
- 1 x 24-pin ATX power connector
- 1 x 4-pin 12V power connector
- 1 x front panel audio jack
- 2 x USB 2.0 pin headers (supports 4 USB 2.0 ports) (supports ESD protection)
- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (supports ESD protection)
*CPU fan connector supports up to 1A (12W) power supply.
**The chassis fan connector supports chassis fans up to 1A (12W) fan power.
***The case/water pump fan supports up to 2A (24W) water cooling fan.
CHA_FAN1/WP can automatically detect 3-pin or 4-pin fans.
I/O port on the rear panel
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub connector
- 1 x DVI-D port
- 1 x HDMI port
- 2 x USB 2.0 ports (supports ESD protection)
- 4 x USB 3.1 Gen1 ports (supports ESD protection)
- 1 x RJ-45 network interface with indicator lights (action/connection indicator and speed indicator)
- HD Audio Jack: Line In / Front / Mic
Dimensions
- Micro ATX; 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
Included
1 x motherboard.
2 x SATA II cables.
1 x I/O shield.
