please make sure this item is the correct one your wanted before purshasing.

Motherboard Description:

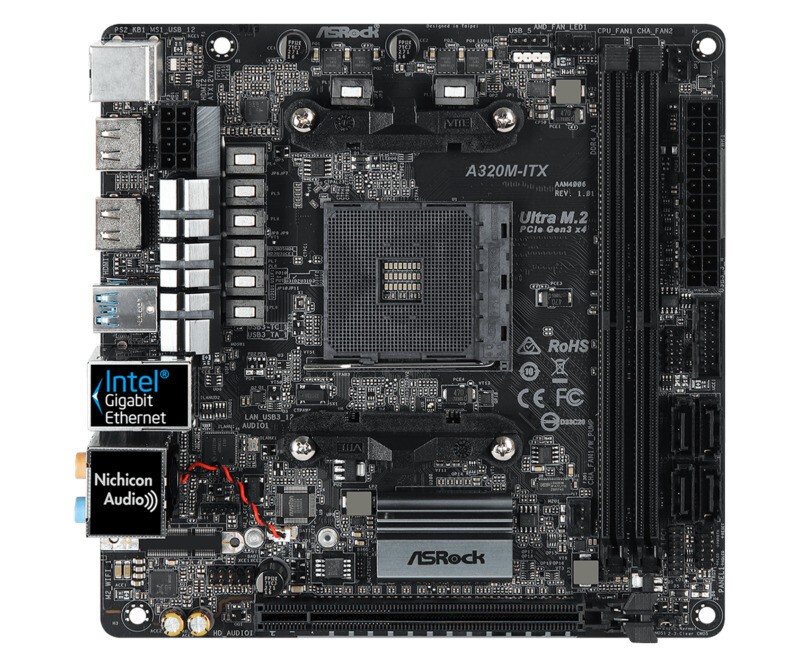

ASRock A320M-ITX Motherboard AMD A320 Socket AM4 D4 M.2 Mini-ITX HDMI for Please DO NOT use fake memory, because the motherboard maybe can't support.

Please DO NOT use single-side memory, because some motherboards can't support.

Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.

Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

Package Included:

1 * motherboard

2 * sata cable

1 x I/O back panel

Product information

Exclusive features

ASRock Super Alloy

- Advanced Inductance

- Dual-N MOS

- Nichicon 12k Black Capacitor (Original Japanese High Quality High Conductive Solid Capacitor)

- Black Matte PCB

- High density moisture proof fiber circuit board

- 2 oz copper PCB board

ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

ASRock Full Protection (supports all USB, audio, network interfaces)

ASRock Instant Update & App Market

CPU

- Supports AMD AM4 socket A-series APUs (Bristol Ridge) and Ryzen processors (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)

- Digitally powered

Chipset

- AMD Promontory A320

RAM

- Dual channel DDR4 memory technology

- 2 x DDR4 memory slots

- AMD Ryzen series processors (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*

- AMD Ryzen series processors (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*

- AMD Ryzen series processors (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 (non-ECC), un-buffered memory*

- AMD Ryzen series processors (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*

- AMD Ryzen series processors (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (non-ECC), un-buffered memory*

- AMD 7th Generation A-series APUs support DDR4 2400 / 2133 (non-ECC), un-buffered memory*

- Maximum system memory capacity: 32GB**

- DIMM sockets feature 15µ gold plated headers*

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

- Support "Plug and Play"

- Compliant with ACPI 5.1, supports Wake Up Events

- Support jumper-free

- Support SMBIOS 2.3

- CPU, DRAM, PCH 1.05V, PROM 2.5V, voltage multi-function regulator

Onboard graphics card

- Integrated AMD Radeon™ HD Vega series graphics cores on Ryzen series APUs*

- Integrated AMD Radeon™ HD R-series graphics cores on A-series APUs*

- DirectX 12, Pixel Shader 5.0

- Shared memory defaults to 2GB. Supports up to 16GB of shared memory. **

- Supports 2 x HDMI 1.4, up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz

- Supports HDMI 1.4 port auto-sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (requires HDMI compatible monitor)

- Supports HDCP 1.4 via HDMI 1.4 port

- Supports 1080p Blu-ray Disc (BD) HD playback via HDMI 1.4 port

*Actual level of support depends on CPU

**To get up to 16GB of shared memory requires 32GB of system memory installed.

Sound effect

- 7.1 channel high definition audio with content protection function (Realtek ALC1220 audio codec)

- Support high quality Blu-ray sound

- Support anti-surge

- Nichicon Fine Gold Professional Audio Capacitor

- 120dB SNR D/A converter with differential amplifier

- Pure power

- Direct drive technology

- PCB isolation shield

- Automatic impedance detection for rear audio

- Layered routing of left and right channels

local area network

- Gigabit LAN 10/100/1000 Mb/s

- GigaLAN Intel® I211AT

- Support Wake-On-LAN function

- Support anti-lightning/anti-ESD static electricity

- Supports Energy Efficient Ethernet 802.3az

- Support PXE

Expansion slot

AMD Ryzen series processors (Matisse, Summit Ridge and Pinnacle Ridge)

- 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)*

AMD 7th Generation A-Series APU / Raven Ridge Processors

- 1 x PCI Express 3.0 x16 slot (PCIE1: x8 mode)*

AMD Ryzen series processors (Picasso, Raven Ridge)

- 1 x PCI Express 3.0 x16 slot (PCIE1: x8 mode)*

AMD Athlon series processors

- 1 x PCI Express 3.0 x16 slot (PCIE1: x4 mode)*

*Support NVMe SSD boot

Storage

- 4 x SATA3 6.0 Gb/s ports, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and hot plug

- 1 x Super M.2 connector, supports M Key 2280 type M.2 SATA3 6.0 Gb/s and M.2 PCIe modules to Gen3 x4 (32 Gb/s) (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge ) or Gen3 x2 (16 Gb/s) (A-series APUs and Athlon-series APUs)*

*Support NVMe SSD boot

Onboard interface

- 1 x LPC header

- 1 x AMD Fan LED Header*

- 1 x CPU Fan Connector ((4-pin))**

- 1 x Chassis Fan Connector ((4-pin))***

- 1 x Chassis/Water Pump Fan Connector ((4-pin)) (Smart Fan Speed Control)***

- 1 x 24-pin ATX power connector

- 1 x 8-pin 12V Power Connector (High Density Power Connector)

- 1 x front panel audio jack

- 1 x AMD LED Fan USB Header

- 1 x USB 2.0 header (supports 2 USB 2.0 ports) (supports ESD protection)

- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (supports ESD protection)

*AMD Fan LED header can support up to 12V/3A (36W) and RGB LED strips up to 2.5 meters long.

**CPU fan connector supports up to 1A (12W) power supply.

***The case/water pump fan supports up to 1.5A (18W) water cooling fan.

I/O port on the rear panel

- 1 x PS/2 keyboard/mouse port

- 2 x HDMI ports

- 1 x Optical SPDIF digital audio output port

- 2 x USB 2.0 ports (supports ESD protection)

- 1 x USB 3.1 Gen1 Type A Connector (supports ESD protection)

- 1 x USB 3.1 Gen1 Type-C port (supports ESD protection)

- 2 x USB 3.1 Gen1 ports (supports ESD protection)

- 1 x RJ-45 network interface with indicator lights (action/connection indicator and speed indicator)

- HD Audio Jacks: Rear / Center / Bass / Line In / Front / Mic

Dimensions

- Mini-ITX Dimensions: 6.7-in x 6.7-in, 17.0 cm x 17.0 is the only online payment method we accept. Please make sure you have a valid/confirmed PayPal account prior offerding. And please make sure that your PayPal registed address is the same with your registed address.
