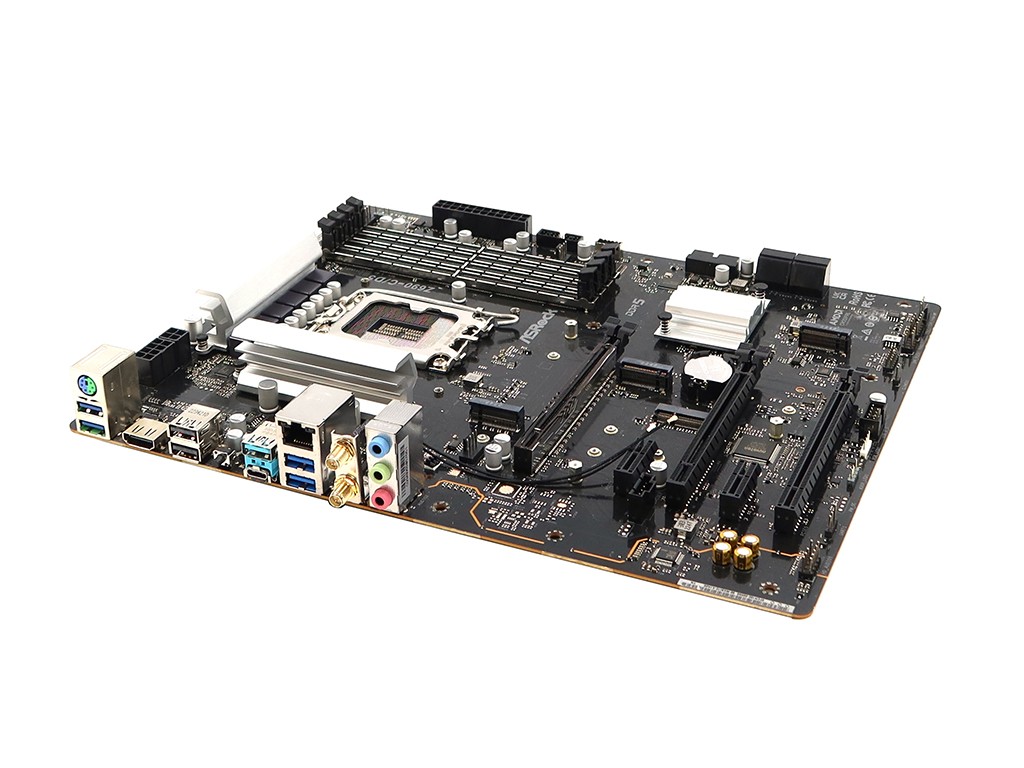

We stand 100% behind our product! Buy with confidence! ASRock Z690-C/D5 Intel Chipset Z690 Socket
LGA1700 DDR5 SATA 6Gb/s USB 3.2 HDMI
Micro ATX Desktop Motherboard
80-MXBI72-A1A06 Please note, this motherboard does not include an I/O Shield,
cables, fan’s bracket, or any other accessories! ASRock Z690-C/D5 Intel Chipset Z690 Socket LGA1700 DDR5 SATA 6Gb/s USB 3.2 HDMI Micro ATX Desktop Motherboard 80-MXBI72-A1A06. Model: Z690-C/D5 Part Number: 80-MXBI72-A1A06 Chipset: Intel Z690 Socket: Intel LGA1700 Compatible/Supported CPU: Supports 14th, 13th & 12th Gen Intel Core Processors Max Supported Memory: 192GB Number of Memory Slots: 4 Memory Type: DDR5 SDRAM Speed: 6000MHz+(OC) Storage Interface: SATA 6Gb/s RAID Support: 0, 1, 5, 10 SATA, 0, 1, 5 NVMe Bluetooth Standard: Bluetooth 5.2 Wireless Lan Support: Wi-Fi 6E Module, IEEE 802.11a/b/g/n/ax, Dual-Band 2x2 with extended 6GHz band Network/Communications: Giga PHY Intel I219V, Gigabit LAN 10/100/1000Mb/s Audio: Realtek ALC897 Audio Codec, 7.1 CH HD Audio Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 1x RGB LED Header, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector (Hi-Density Power Connector), 1x 4 pin 12V Power Connector (Hi-Density Power Connector), 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card), 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection), 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection), 4x USB 3.2 Gen1 Ports (Supports ESD Protection), 2x USB 2.0 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone Expansion Slots: 3x M.2 slots (Key M), 4x SATA 6Gb/s ports, 3x PCIe 4.0 x16 slots Form Factor: Micro ATX Type: Desktop Motherboard Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Graphics
- Intel Xe Graphics Architecture (Gen 12)
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port

BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VDD2, DRAM, VCCIN AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Unique Features
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- Premium Power Choke
- 50A Dr.MOS
- Sapphire Black PCB
- High Density Glass Fabric PCB
802.11ax Wi-Fi 6E
ASRock Steel Slot
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU Support:

Socket LGA1700VendorCPU ModelCPU FrequencyL3 CacheCore i935WInteli9-14900KF(B0)3.2GHz36MBCore i9125WInteli9-14900K(B0)3.2GHz36MBCore i9125WInteli9-14900F(B0)2.0GHz36MBCore i965WInteli9-14900(B0)2.0GHz36MBCore i965WInteli7-14790F2.1GHz36MBCore i765WInteli7-14700T(B0)1.3GHz33MBCore i735WInteli7-14700KF(B0)3.4GHz33MBCore i7125WInteli7-14700K(B0)3.4GHz33MBCore i7125WInteli7-14700F(B0)2.1GHz33MBCore i765WInteli7-14700(B0)2.1GHz33MBCore i765WInteli5-14600T(B0)1.8GHz24MBCore i535WInteli5-14600KF(B0)3.5GHz24MBCore i5125WInteli5-14600K(B0)3.5GHz24MBCore i5125WInteli5-14600(B0)2.7GHz24MBCore i565WInteli5-14500T(B0)1.7GHz24MBCore i535WInteli5-14500(C0)2.6GHz24MBCore i565WInteli5-14490F2.8GHz24MBCore i565WInteli5-14400T1.5G20MBCore i535WInteli5-14400F(C0)2.5GHz20MBCore i565WInteli5-14400F(B0)2.5GHz20MBCore i565WInteli5-14400(C0)2.5GHz20MBCore i565WInteli5-14400(B0)2.5GHz20MBCore i565WInteli3-14100T(H0)2.7GHz12MBCore i335WInteli3-14100F(H0)3.5GHz12MBCore i358WInteli3-14100(H0)3.5GHz12MBCore i935WInteli9-13900KS(B0)3.2GHz36MBCore i9150WInteli9-13900KF(B0)3GHz36MBCore i9125WInteli9-13900K(B0)3GHz36MBCore i9125WInteli9-13900F(B0)2GHz36MBCore i965WInteli9-13900(B0)2GHz36MBCore i965WInteli7-13700T(B0)1.4GHz30MBCore i735WInteli7-13700KF(B0)3.4GHz30MBCore i7125WInteli7-13700K(B0)3.4GHz30MBCore i7125WInteli7-13700F(B0)2.1GHz30MBCore i765WInteli7-13700(B0)2.1GHz30MBCore i765WInteli5-13600T(C0)1.8GHz24MBCore i535WInteli5-13600KF(B0)3.5GHz24MBCore i5125WInteli5-13600K(B0)3.5GHz24MBCore i5125WInteli5-13600(C0)2.7GHz24MBCore i565WInteli5-13500T(C0)1.6GHz24MBCore i535WInteli5-13500(C0)2.5GHz24MBCore i565WInteli5-13400T(C0)1.3GHz20MBCore i535WInteli5-13400F(C0)2.5GHz20MBCore i565WInteli5-13400F(B0)2.5GHz20MBCore i565WInteli5-13400(C0)2.5GHz20MBCore i565WInteli5-13400(B0)2.5GHz20MBCore i565WInteli3-13100T(H0)2.5GHz12MBCore i335WInteli3-13100F(H0)3.4GHz12MBCore i358WInteli3-13100(H0)3.4GHz12MBCore i360WIntelG7400T(H0)3.1GHz6MBPentium Gold35WIntelG7400(H0)3.7GHz6MBPentium Gold46WInteli9-12900T(C0)1.4GHz30MBCore i935WInteli9-12900KF(C0)3.2GHz30MBCore i9125WInteli9-12900K(C0)3.2GHz30MBCore i9125WInteli9-12900F(C0)2.4GHz30MBCore i965WInteli9-12900(C0)2.4GHz30MBCore i965WInteli7-12700T(C0)1.4GHz25MBCore i735WInteli7-12700KF(C0)3.6GHz25MBCore i7125WInteli7-12700K(C0)3.6GHz25MBCore i7125WInteli7-12700F(C0)2.1GHz25MBCore i765WInteli7-12700(C0)2.1GHz25MBCore i765WInteli5-12600T(H0)2.1GHz18MBCore i535WInteli5-12600KF(C0)3.7GHz20MBCore i5125WInteli5-12600K(C0)3.7GHz20MBCore i5125WInteli5-12600(H0)3.3GHz18MBCore i565WInteli5-12500T(H0)2.0GHz18MBCore i535WInteli5-12500(H0)3.0GHz18MBCore i565WInteli5-12400T(H0)1.8GHz18MBCore i535WInteli5-12400F(H0)2.5GHz18MBCore i565WInteli5-12400F(C0)2.5GHz18MBCore i565WInteli5-12400(H0)2.5GHz18MBCore i565WInteli5-12400(C0)2.5GHz18MBCore i565WInteli3-12300T(H0)2.3GHz12MBCore i335WInteli3-12300(H0)3.5GHz12MBCore i360WInteli3-12100T(H0)2.2GHz12MBCore i335WInteli3-12100F(H0)3.3GHz12MBCore i358WInteli3-12100(H0)3.3GHz12MBCore Payment & Shipping Policy:
