Product description Interface Feature Installation Guide

• Power Interface: SATA
• Fan Interface: 4-PIN PWM FAN Header, Compatible to 3-PIN Fan Connector; Connect 3-PIN Fan will spin in full speed.
• LED Interface: 3-PIN 5V ARGB Header, doesn't support 4-PIN 12V RGB Connector.
• Switch: SYNC to motherboard 5V 3-PIN ARGB or 12V 4-PIN RGB via toggle the Switch.
• SYNC Cable:

1. 12V RGB Connector- Connect to motherboard 12V 4-PIN RGB Header.

2. 5V ARGB Connector- Connect to motherboard 5V 3-PIN ARGB Header.

3. PWM Fan Connector- Connect to motherboard PWM Fan Header, CPU_FAN or CPU_OPT.

What is in box?

• 1* PWM Fan & ARGB LED Hub
• 1* Sync Cable
• 1* Velcro
• 1* Manual

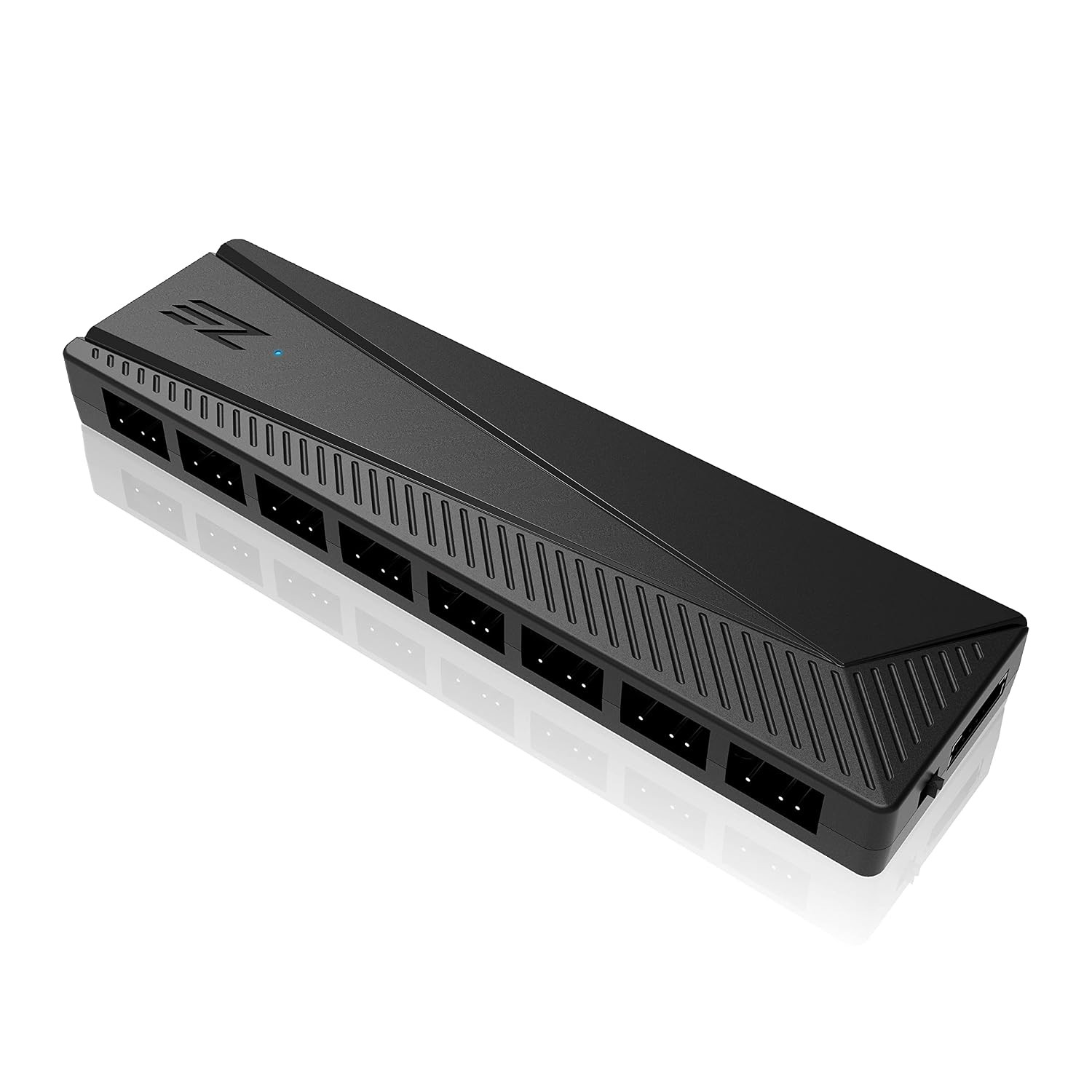

16-PORT PWM FAN & ARGB LED HUB

Maximum support for simultaneous access of eight products.

• The fan hub can support up to 8 fans, including a total of 8 4-pin PWM ports and 8 ARGB ports for ARGB fans or ARGB devices. NOTE: DOSE NOT SUPPORT 4-PIN RGB DEVICE.
• Fan speed can be adjusted by PWM signal from motherboard, only the speed of "Fan 1" can be read by the system. The speed control function is unavailable for 3 pin fans, the attached 3 pin fans will run at maximum RPM.
• Supports 12V RGB/ 5V ARGB motherboard sync, by toggling little switch to achieve syncornize two ligthing system, compatible to AURA, RGB Fusion, Mystic Light, Polychrome. No built-in color modes, sync cable must connect to motherboard header.
• Up to 8 sets of ARGB (3-pin) headers to meet your needs of connecting more devices, build up to your own lighting system, support up to 200 LEDs.
• High-quality PCB, very durable,Adhesive Velcro included for easily fixing the hub in the chassis, SATA power maintains stable output even at full load.
