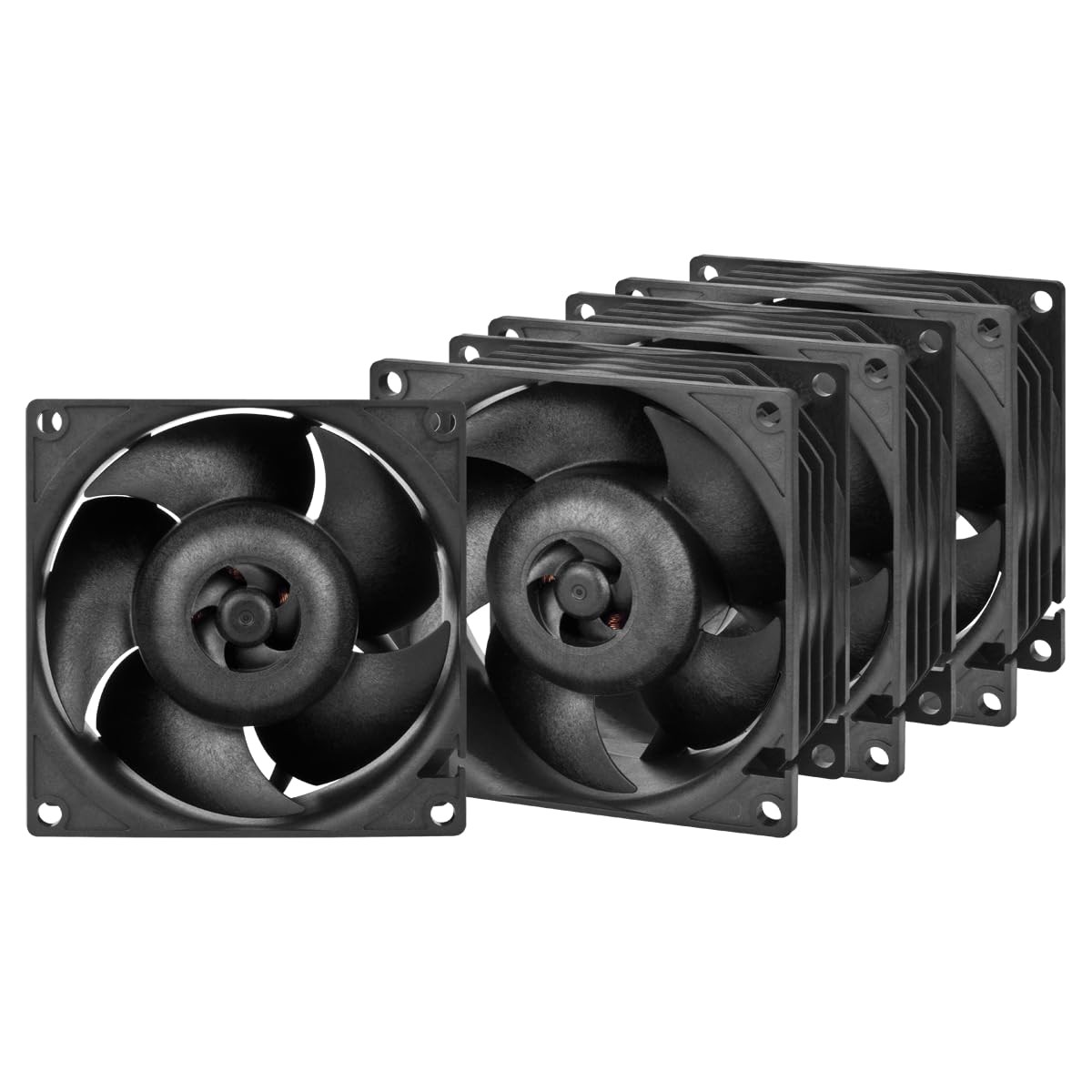

ARCTIC S8038-7K (4 Pieces) - Fan, 80x80x38 mm, 500-7000 RPM, PWM Regulated, 4-pi
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
ARCTIC S8038-7K (4 Pieces) - Fan, 80x80x38 mm, 500-7000 RPM, PWM Regulated, 4-pi
Price: US $45.21
BBA Store LtdOnline StoreresponseVisit StoreProductARCTIC S8038-7K (4 Pieces) - Fan, 80x80x38 mm, 500-7000 RPM, PWM Regulated, 4-pin Connector, 12 V DC, BlackKey Highlights
  • The impeller of the S8038-7K is held in place by two ball bearings, making it not only particularly durable but also less sensitive to external influences such as heat and dust
  • The S8038-7K has a wide speed range that can be regulated via PWM and voltage. With up to 7000 rpm, it provides an ideal balance between cooling performance and noise
  • With a static pressure of 25 mmH₂O and a maximum airflow of 118.93 m³/h, the S8038-7K is a true all-rounder and is suitable as both a radiator fan and a case fan
  • The S8038-7K fits into 2U server cases and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation
  • The fan has a standard 4-pin connector and can also be connected and controlled on 2-pin and 3-pin headers, while the 30 cm cable allows flexibility in positioning
Product Details
  • Brand: ARCTIC
  • UPC: 840033402071
  • Model Number: ACFAN00292A
  • Voltage: 12 volts
  • Wattage: 6 watts
  • Unit Count: 4 Count
  • Item Weight: 146 g
  • Manufacturer: ARCTIC
  • Material Type: Polycarbonate
  • Cooling Method: Air
  • Air Flow Capacity: 33.03 liters_per_second
  • Compatible Devices: Desktop, Server
  • Included Components: S8038-7K (4 Pack)
  • Power Connector Type: 4-Pin
  • Maximum Rotational Speed: 7000 rpm
  • Item Dimensions L x W x H: 3.15"L x 1.5"W x 3.15"H
Description

The impeller of the S8038-7K is held in place by two ball bearings, making it not only particularly durable but also less sensitive to external influences such as heat and dust.

The S8038-7K has a wide speed range that can be regulated via PWM and voltage, allowing it to be tuned to the specific system requirement. With a wide speed range from 500 rpm to 7000 rpm, it provides an ideal balance between cooling performance and noise, ensuring optimal performance in various scenarios.

Heat sinks and radiators benefit from fans with high static pressure. The S8038-7K has a static pressure of 25 mmH₂O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 118.93 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.

With its standard 4-pin fan connector, the S8038-7K can also be connected to 2-pin or 3-pin sockets, and then be controlled by voltage. The 30 cm cable allows a lot of flexibility in positioning.

The lifespan of fans is mostly determined by the lifespan of the motor, which is significantly dependent on the motor temperature, especially in long-term operation. The motor of the S8038-7K is actively cooled by an additional impeller in the fan hub. By maintaining lower motor temperatures, its lifespan is extended by up to 50 %. This advance not only leads to improved operating efficiency, but also to significant cost savings in the long run.

The S8038-7K fits into 2U server cases and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation. In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it assures performance in various hardware environments and ensures efficient cooling and minimal downtime.

Fan Speed: 500–7000 rpm

Airflow: 70 cfm | 118.93 m³/h

Speed Control: Pulse Width Modulation – PWM

Static Pressure: 25 mmH₂O

Fan Frame: Standard

Connector: 2510 4-Pin Fan-Connector

Fan Bearing: Dual Ball Bearing

Operating Ambient Temperature: -10~70 °C

Cable Length: 300 mm

Starting Voltage: 3,6 V DC

Current | Voltage: 0,5 A | 12,0 V DC

Technical Specifications
