APC Galaxy 3500 UPS 20kva 208v 3 phase Backup G35TF20KB4F + Maint. Bypass Unit
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
APC Galaxy 3500 UPS 20kva 208v 3 phase Backup G35TF20KB4F + Maint. Bypass Unit
Price: US $11599.00

Thank you for considering purchasing from Surplus Hero. We are a greater Detroit Area based seller of retail, commercial and industrial items obtained through bank's asset lists of failed businesses. Please feel free to ask any questions before, during or after purchase.. we will always reply.

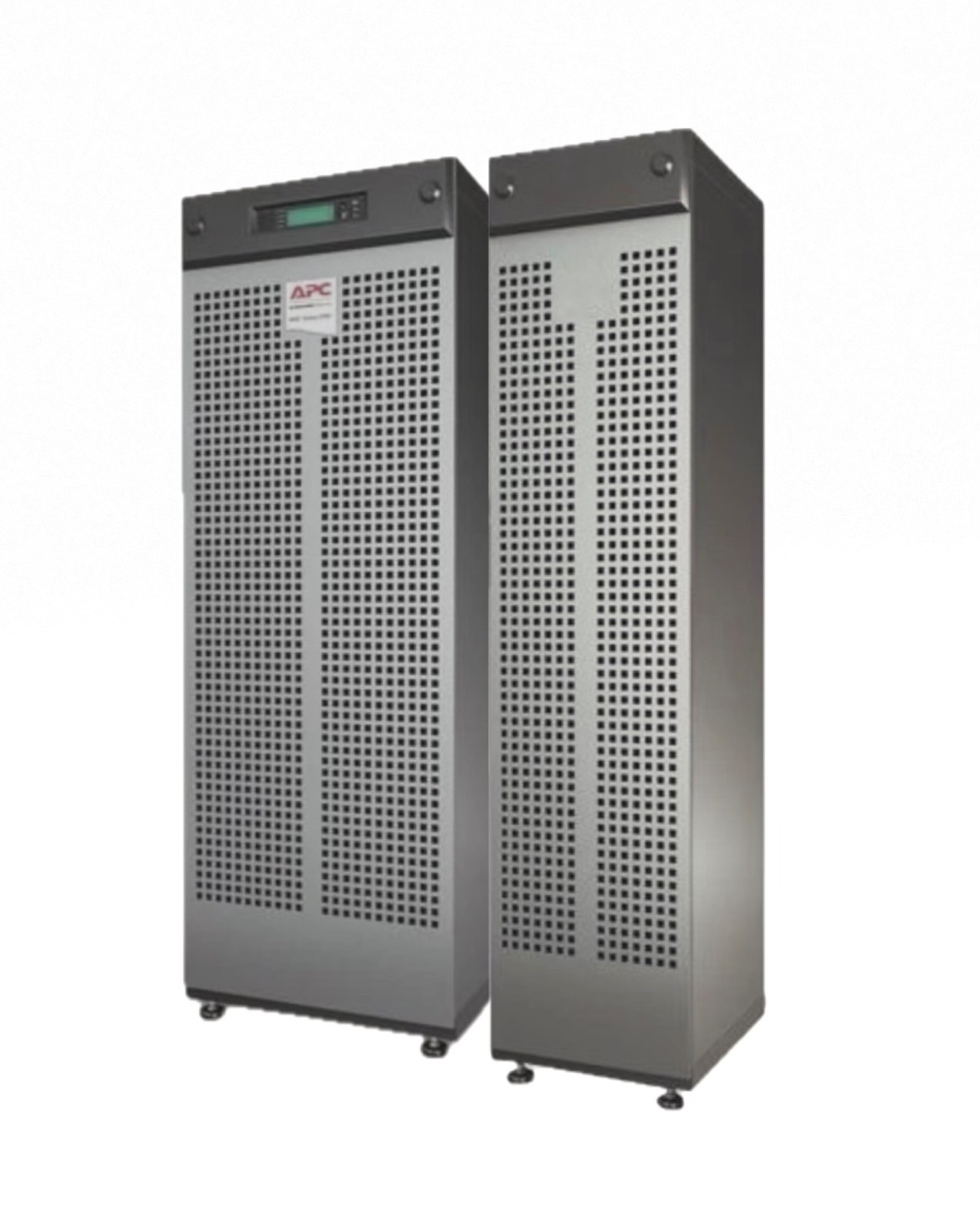

APC by Schneider Electric MGE Galaxy 3500; UPS 20 kva 3 phase Backup 208v G35TF20KB4F and Maintenance By-bass Unit G35TSBP20K30F (Bypass panel in stand alone side cabinet).


Purchase price includes both units and are available for local pickup or freight shipping. If you require freight shipping, message us prior to purchase so that we can provide you with a freight quote.



These units were removed from anoffice buildingin the Metro Detroit area that was remodeled several years ago. A few years after the remodel, the company that owned the building failed, and now, the office building is being cleared to make way for new condominiums.

Before we removed the units from the building, we preformed a full power up and tested them. These units are fully functional. They may have cosmetic blemishes from moving and storage that does not affect performance.


APC MGE Galaxy 3500

  • Model Number:G35TF20KB4F (Frame for 4 Battery Modules)
  • Power Capacity:20,000 VA / 16,000 W
  • Nominal Input/Output Voltage:208V 3-phase (Configurable for 200V, 208V, or 220V 3-phase)
  • Output Frequency:57–63 Hz for 60 Hz nominal (Sync to mains)
  • Topology:Double Conversion Online
  • Waveform Type:Sine wave
  • Efficiency:~94.9% (at full load)
  • Input Power Factor at Full Load:0.98

Battery and Runtime

  • Battery Type:Lead-acid (VRLA)
  • Battery Capacity:Designed for up to 4 Battery Modules (Internal)
  • Battery Voltage:+/- 192 V (split battery)
  • Runtime:Configurable based on the number of installed battery modules
  • Recharge Time:~5 hours (typical)

Physical Specifications

  • Height: 59.06 inches (150 cm)
  • Width:20.6 inches (52.3 cm)
  • Depth:36.4 inches (92.5 cm)
  • Net Weight:~981 lb (445 kg) (Frame only, weight increases with batteries)
  • Color:Dark Grey/Black
  • Mounting:Not rack-mountable class="p1" style="margin: 0px 0px 4px; font-width: normal; font-size: 27px; line-height: normal; font-size-adjust: none; font-kerning: auto; font-variant-alternates: normal; font-variant-ligatures: normal; font-variant-numeric: normal; font-variant-east-asian: normal; font-variant-position: normal; font-feature-settings: normal; font-optical-sizing: auto; font-variation-settings: normal; caret-color: rgb(0, 0, 0); color: rgb(0, 0, 0); -webkit-tap-highlight-color: rgba(26, 26, 26, 0.3); -webkit-text-size-adjust: auto;">Environmental

    • Operating Temperature:32–104 °F (0–40 °C)
    • Relative Humidity:0–95% non-condensing
    • Acoustic Level:55 dBA
    • Protection Class:NEMA 12 / IP51

    Features

    • Bypass:Built-in Maintenance Bypass & Static Bypass
    • Communications:Network Management Card
    • Equipment:Bolt-down brackets
    • Certifications:UL 1778, CSA C22.2 No. 107.1
