Manufacturer: APC

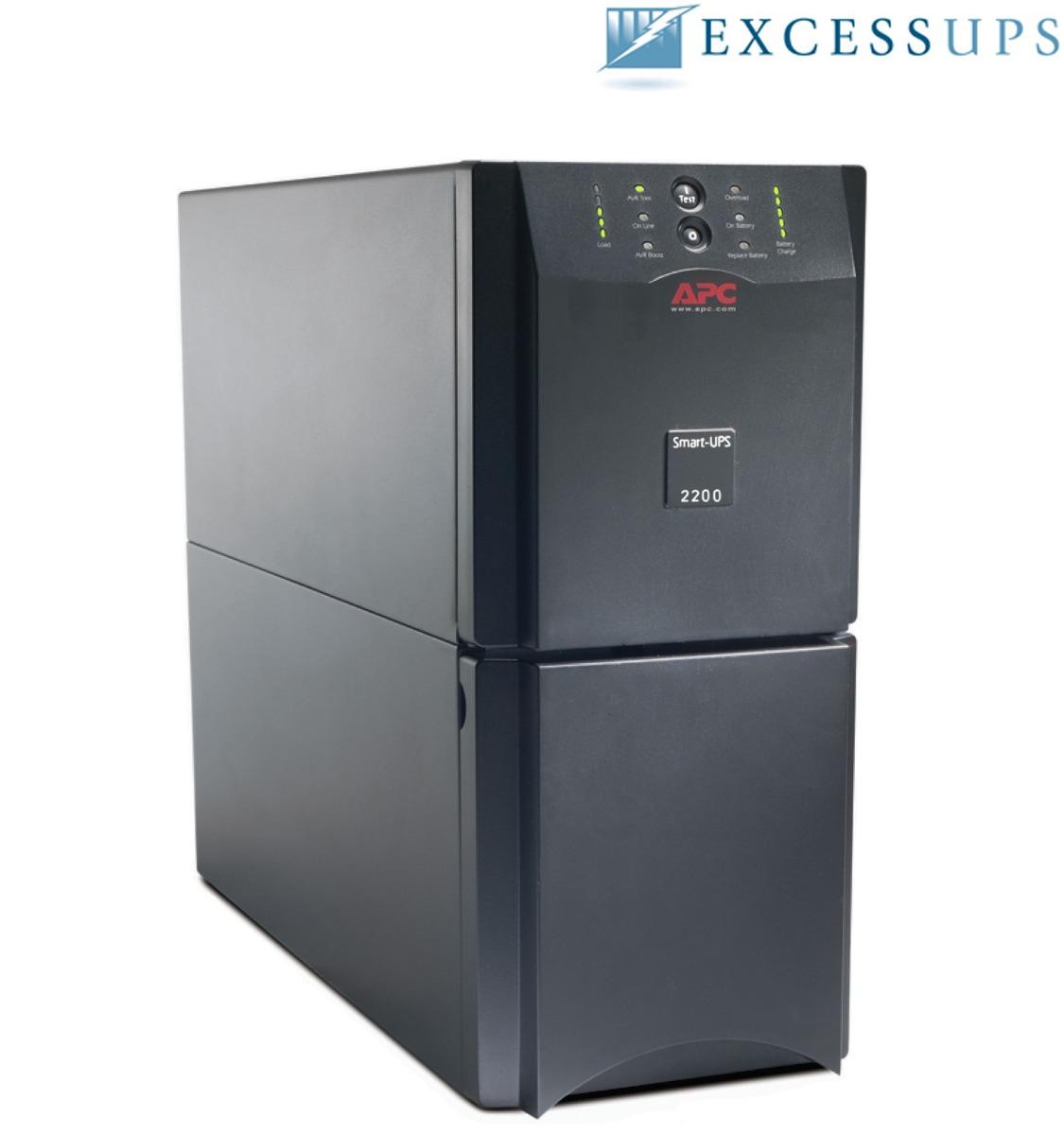

Model: APC Dell Smart-UPS 2200VA 1980WUSB & Serial 120V
Condition: New batteries, refurbished UPS
Part Number: DLA2200
Maximum output: 1980W / 2200VA
Typical backup time at half load: 24.1 minutes (990 Watts)
Typical backup time at full load: 6.7 minutes (1980 Watts)
Warranty: 1 year full replacement warranty
APC Dell Smart-UPS 2200VA 1980W 120V DLA2200 Manual
DLA2200 - APC Dell Smart-UPS Specifications:
Main:
Main Input Voltage
120V
Main Output Voltage
120V
Rated Power in W
1980W
Rated Power in VA
2200VA
Input Connection Type
NEMA 5-20P
Output Connection Type
(8) NEMA 5-15R
(2) NEMA 5-20R
Cable Length
6 ft (1.83 m)
Number of Cables
1
Battery Type
Lead-Acid Battery
General:
Number of Power Module Filled Slots
0
Number of Power Module Free Slots
0
Redundant
No
Physical:
Color
Black
Height
17.01 in (43.2 cm)
Width
7.72 in (19.6 cm)
Depth
21.50 in (54.6 cm)
Net Weight
112.24 lb(US) (50.91 kg)
Mounting Location
Front
Mounting Preference
No Preference
Mounting Mode
Not rack-mountable
USB Compatible
No
Input:
Efficiency at full load
75 - 154 V adjustable
82 - 144 V
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Output:
Crest Factor
Up to 5 : 1
Harmonic Distortion
Less than 5 % at full load
Maximum Configurable Power in VA
2200VA
Max Configurable Power (Watts)
1980W
Transfer Time
2ms typical
Topology
Line Interactive
Waveform Type
Sine wave
Efficiency at full load
95 % full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal sync to mains
57 - 63 Hz for 60 Hz nominal sync to mains
Conformance:
Product Certifications
CSA
Environmental:
Acoustic Level
45 dBA
Heat Dissipation
275 Btu/h
Operating Altitude
0- 10000 ft
Ambient Air Temperature for Operation
32 - 104°F (0 - 40 °C)
Ambient Air Temperature for Storage
5 - 113°F (-15- 45°C)
Storage Altitude
0 - 50000 ft (0.00 - 15240.00 m)
Relative Humidity
0 - 95 %
Storage Relative Humidity
0 - 95 %
Batteries & Runtime:
Extendable Run Time
0
Included Battery Modules
0
Battery Slots Empty
3h
RBC Quantity
1
Battery Life
3- 5 years
Replacement Battery
RBC55
Battery Power in VAH
816 VAh runtime
Battery Charge Power (Watts)
271 W rated
Communications & Management:
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Control Panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Emergency Power Off (EPO)
Yes
Free Slots
Surge Protection and Filtering:
Surge Energy Rate
459 J
Noise Suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
