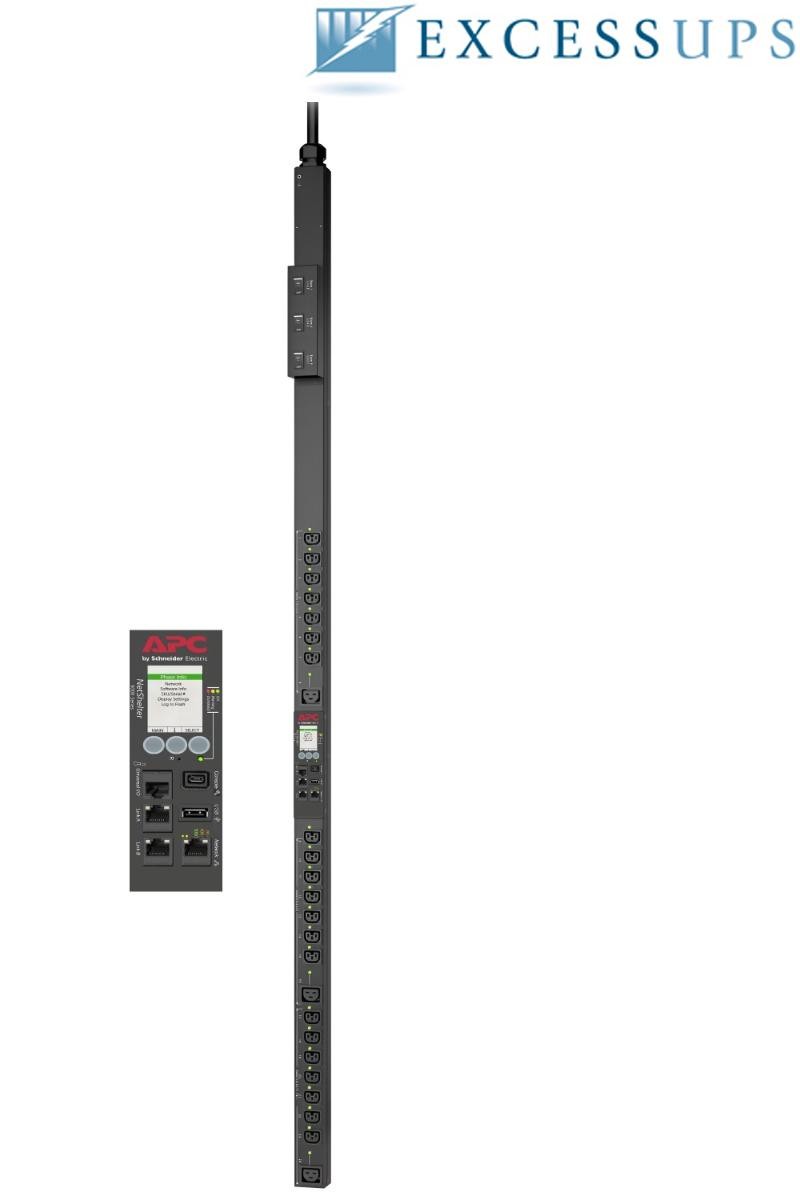

Manufacturer: APC
Model: APDU9965
Description: APDU9965 8.6kW Rack PDU 9000, Switched, 0U, 30A, 208V
Input: NEMA L21-30P - 30A 208V
Output: (21) IEC C13/C15, (3) IEC C19/C21
Condition: Refurbished PDU
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Description: APC APDU9965 Rack PDU 9000, Switched, ZeroU, 8.6kW, 30A, 208V 3-Phase. Model: APDU9965. Input Connection: NEMA L21-30P (30A, 208V 3PH). Output Connections: (21) IEC C13/C15, (3) IEC C19/C21. Provides up to 8600VA capacity with individual outlet switching and remote power management capabilities. Features built-in Gigabit Ethernet management with Web UI, SNMP, Redfish, SSH, and CLI remote access, plus configurable overload alarms and real-time power monitoring. Vertical 0U rackmount design ideal for high-density data center and enterprise environments. Refurbished PDU. 1 Year Full Replacement Warranty Included.
APDU9965 8.6kW Rack PDU 9000, Switched, 0U, 30A, 208V - User Manual
APDU9965 - APC Switched Rack PDU 9000 Specifications:
Key Features: Rack HeightToolless 0U MountingOutput Connections(21) C13/C15 (3) C19/C21Nominal Output Voltage208VNominal Input Voltage208V 3-PhaseInput ConnectionsNEMA L21-30PCord Length5.97 ft (1.82 m)PDU TypeSwitchedForm FactorVertical Rackmount (0U)Load Capacity8600VAPhase3-PhaseRemote MonitoringYesOutlet SwitchingYesCommunication SupportSNMP, Redfish, Web UI, CLI Output: Overload ProtectionYesNominal Output Voltage208VOutput Connections(21) IEC 60320 C13/C15 (3) IEC 60320 C19/C21Maximum Total Current Draw30AMeteringReal-time current and load monitoring Input: Input Frequency50/60 HzNumber of Power Cords1Load Capacity8600VAMaximum Input Current30AMaximum Line Current30ARegulatory Derated Input Current (North America)24A Physical: Maximum Height72.01 inches (1829MM, 182.9CM)Maximum Width2.2 inches (56MM, 5.6CM)Maximum Depth2.01 inches (51MM, 5.1CM)Net Weight18.03 lbs. (8.18KG)ColorBlackUnits per Pallet48.0 Communications & Management: Network InterfaceBuilt-in 10/100/1000BASE-T Gigabit Ethernet PortRemote AccessWeb UI, SNMP, CLI, SSH, TelnetSupported ProtocolsSNMP, Redfish, HTTP, HTTPS, SSH, TelnetLocal DisplayLED Status Indicators for Network and Load StatusUser AlarmsUser-configurable overload, threshold, and event alarmsEnvironmental MonitoringSupported with compatible APC environmental sensorsData LoggingHistorical power event, load, and alarm loggingOutlet ControlIndividual remote outlet switching and reboot controlRemote Power CyclingSupported for connected equipment managementFirmware UpgradesSupported remotely through network interfaceSecurity FeaturesPassword protection, encrypted HTTPS/SSH access, user authenticationUser Access ControlMulti-user role-based access supportEvent NotificationsEmail and SNMP trap notifications supportedNetwork ManagementCompatible with APC network management platformsSerial ConfigurationSupported for initial setup and local configurationManagement Protocol SupportEnterprise data center integration supportPower MonitoringReal-time monitoring of current, load status, and alarmsRemote Reboot CapabilitySupported for individual connected Temperature23 - 140 °F (-5 - 60 °C)Operating Relative Humidity5 - 95%Operating Elevation0 - 10000 ft (0 - 3048 meters)Storage Temperature-13 - 149 °F (-25 - 65 °C)Storage Relative Humidity5 - 95%Storage Elevation0 - 50000 ft (0 - 15240 meters)
