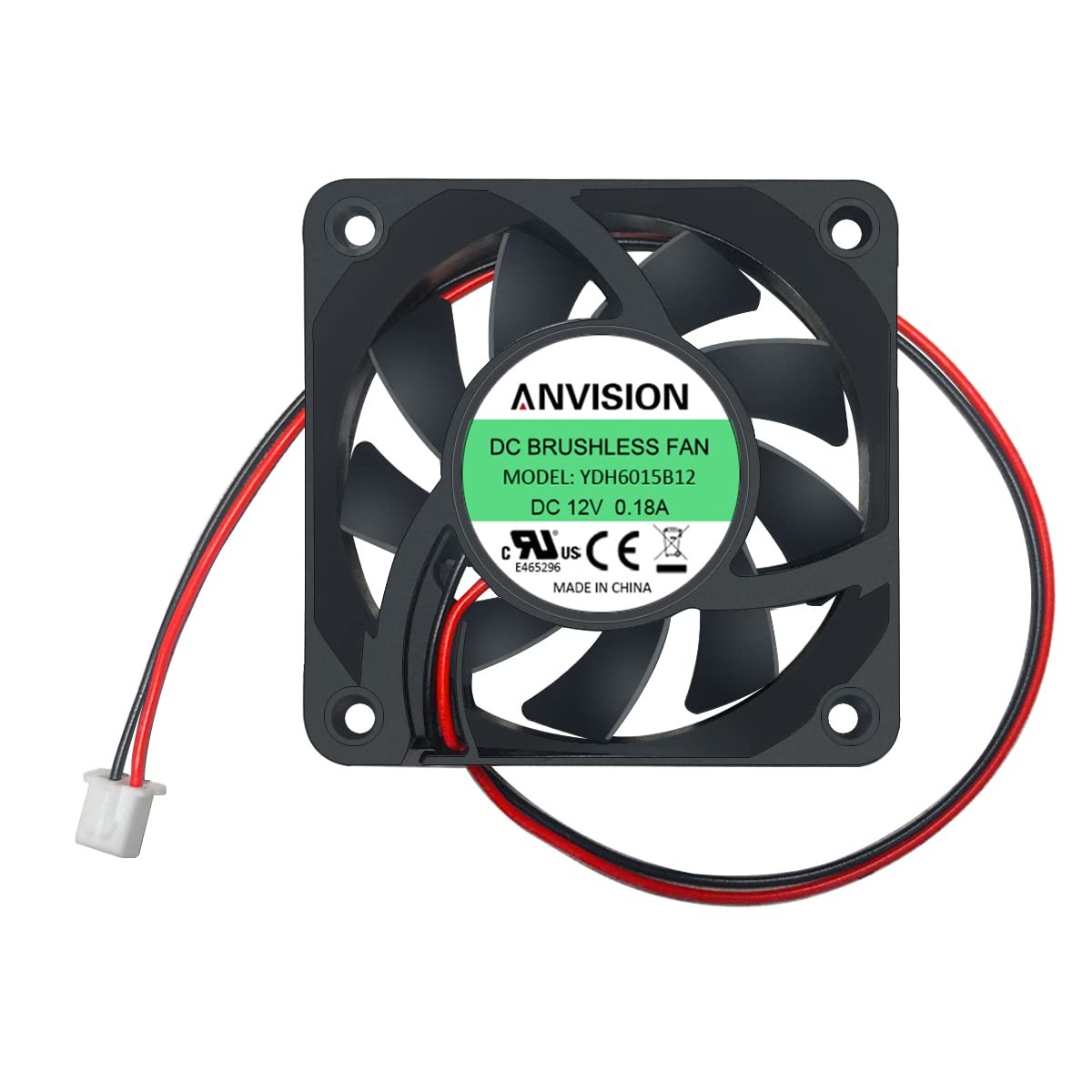

ANVISION 60mm x 15mm DC 12V Brushless Cooling Fan, Dual Ball Bearing
Price: US $16.16
ANVISION 60mm x 15mm DC 12V Brushless Cooling Fan, Dual Ball Bearing Product Details
Publisher: ANVISION
Publication date: 0
Dimensions: 6 x 6 x 1.5 cm
Rated Voltage: 12V DC, Current: 0.18A
Airflow: 17.6CFM, Speed: 4000RPM, Noise: 30.7dBA
Bearing Type: Dual Ball Bearing
Lead Wire: 2-pin-2.5mm connector, length: 200mm / 7.87inch
Dimension: 60*60*15mmHousing: Black PBT (UL94V-0)Fan Blade: 9 Blades, Black PBT (UL94V-0)Bearing System: Two Ball BearingsNet Weight: 40gRated Voltage: 12V DCOperating Voltage Range: 10.8-13.2V DCStart-up Voltage: 7.0V DCRated Current: 0.08A (0.12A Max.)Rated Power: 0.96W (1.44W Max.)Rated Speed: 4000PRMAir Flow: 17.6CFMAir Pressure: 3.14mmAq*Noise Level: 30.7dB(A)Lift Expectancy: 70000H at 25degree test*Acoustical Noise Testing Condition: Fan is hanged in anechoic chamber, noise is measured at rated voltage in anechoic chamber with microphone at a distance of 1 meter formthe air intake.
